Details
Planetary Gear Motor

PG32-GR

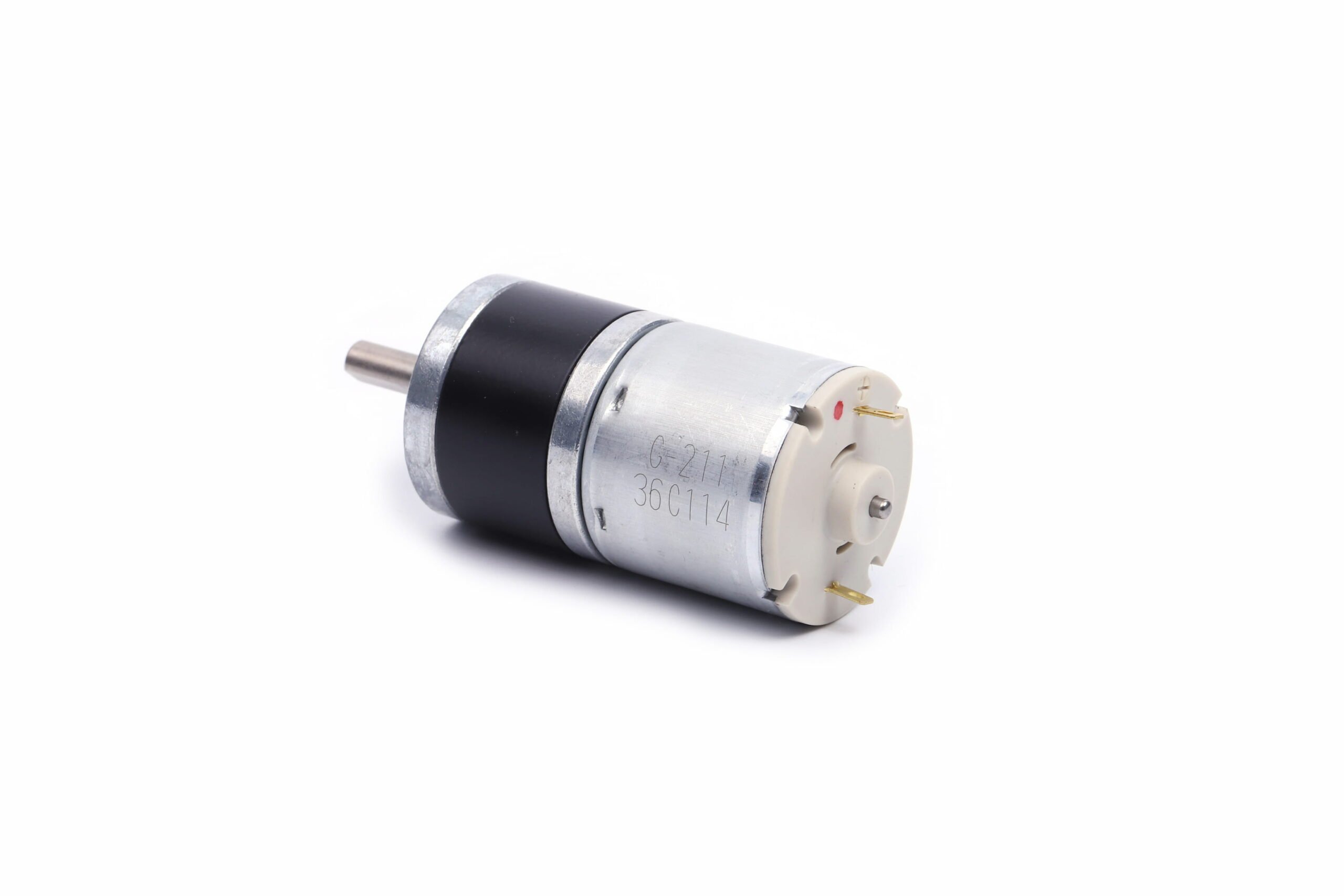

PG32-GR 32mm Planetary Gear Motor

Key Features

  • Size:32 mm
  • Rated Power:0-36W
  • Rated Voltage:12V-24 V
  • Rated Speed:3-1500rpm
Advantages
  • High efficiency planetary gear structure
  • Choice of gear materials: metal, powder, plastic
  • Motor Selection - BLDC Motor / DC Motor / Stepper Motor
  • Ball bearings improve motor performance
  • Adaptability to working conditions in different environments
  • Customized Solutions

Product Details

ModelVoltageRated RpmRated CurrentRated TorquePowerStall Torque
PG32GR127000-21.5K12V248.91.690A0.164N.m4.2W 0.77N.m
PG32395126000-1120K12V4.40.74A8.35N.m3.88W37.84N.m
PG32395246000-52.1K24V94.10.66A0.53N.m5.27W2.58N.m
PG32395249000-37.7K24V185.60.73A0.43N.m8.45W2.28N.m

Dimensional Drawing

PG32GR Size

Applications

Pool Cleanning robot

Precision and Power: Micro Geared Motors for Advanced Pool Cleaning Robots

1. Introdcution With the continuous growth of household wealth and the pursuit of a healthy lifestyle, the number of private…

Read more
