Worm Gear Motor
WGM-370

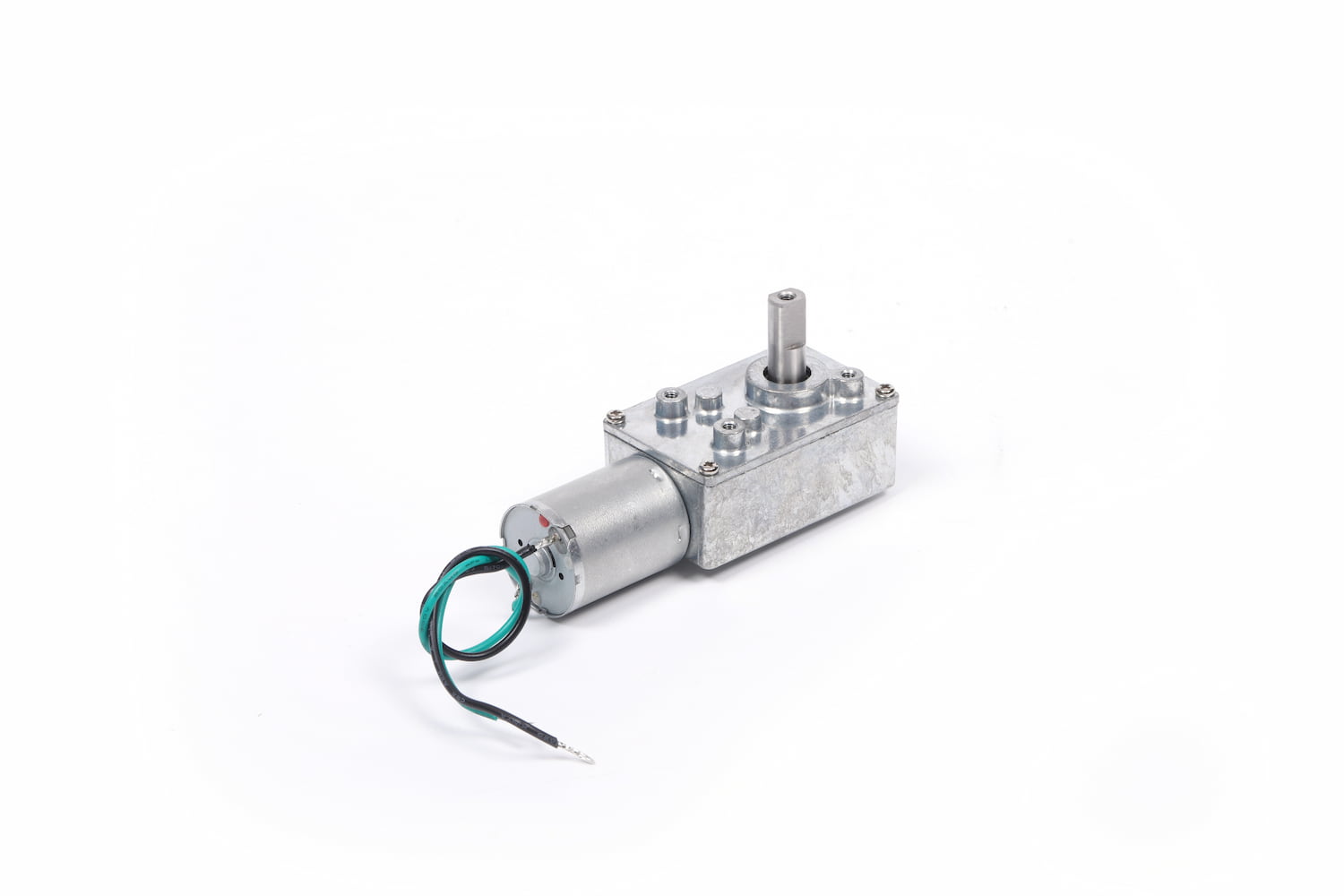

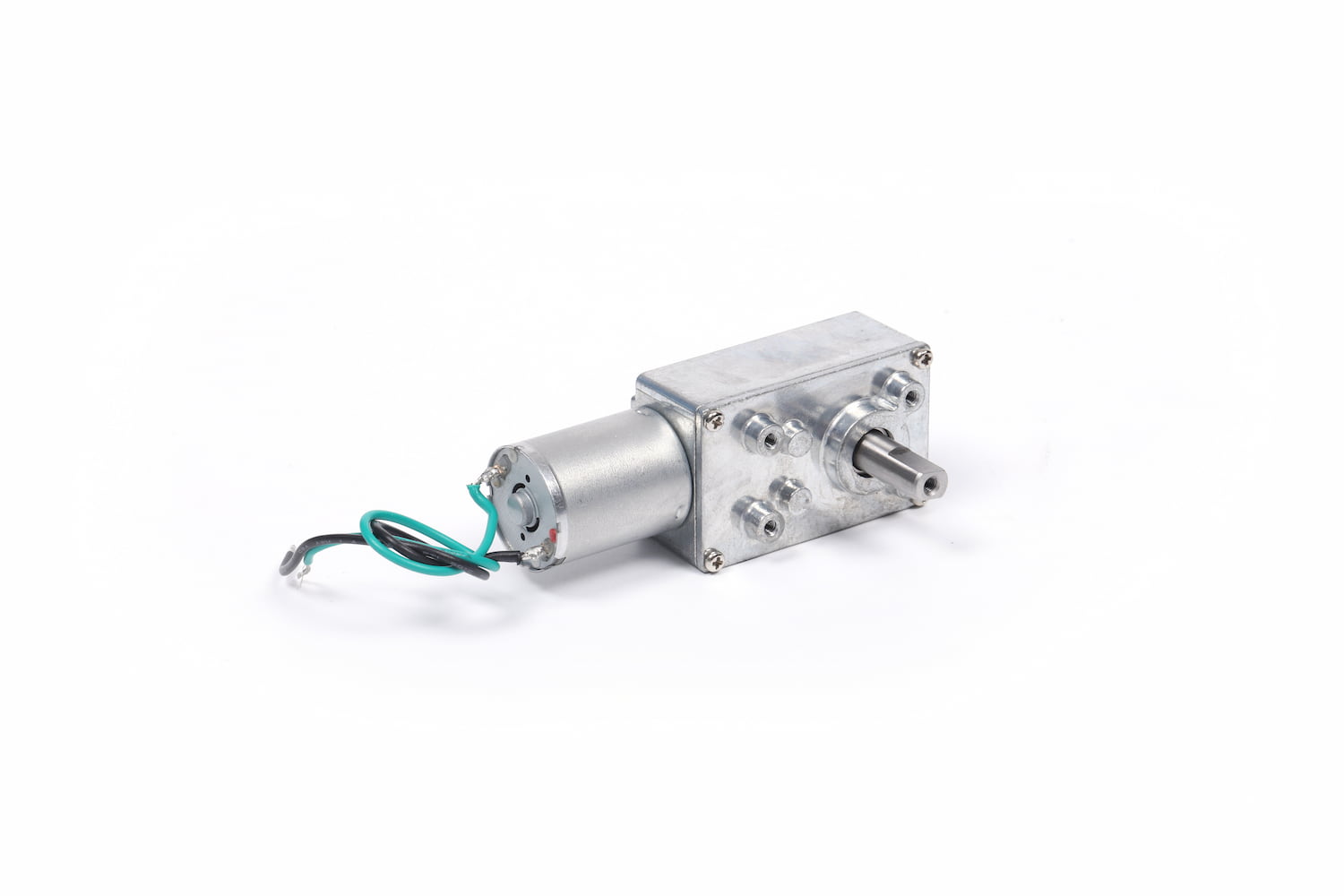

WGM-370 Worm Gear Motor
Key Features
- Size:46*32*25
- Rated Power:0-10W
- Rated Voltage:3V-24V
- Rated Speed:5rpm – 1000 rpm
Advantages
- High-precision worm machining
- Self-locking function
- Choice of gear materials: metal, powder, plastic
- 90° output shaft
- Motor Selection - BLDC Motor / DC Motor / Stepper Motor
- Customized Solutions
Product Details
Model | Voltage | Rated Rpm | Rated Current | Rated Torque | Power | Stall Torque |
---|---|---|---|---|---|---|
WGM370246000-123K | 24V | 35 | 0.11A | 98.1mN.m | 0.011W | 470.2mN.m |
RG50M555244500-13.3K | 24V | 270 | 800mA | 0.3N.m | 7.9W | 1.5N.m |
RG50M775127000-13.8K | 12V | 430 | 5800mA | 0.7N.m | 32W | 3.8N.m |
RG50M775245000-30K | 24V | 139 | 1900mA | 1.4N.m | 20.5W | 8.3N.m |
Dimensional Drawing
