VF Series

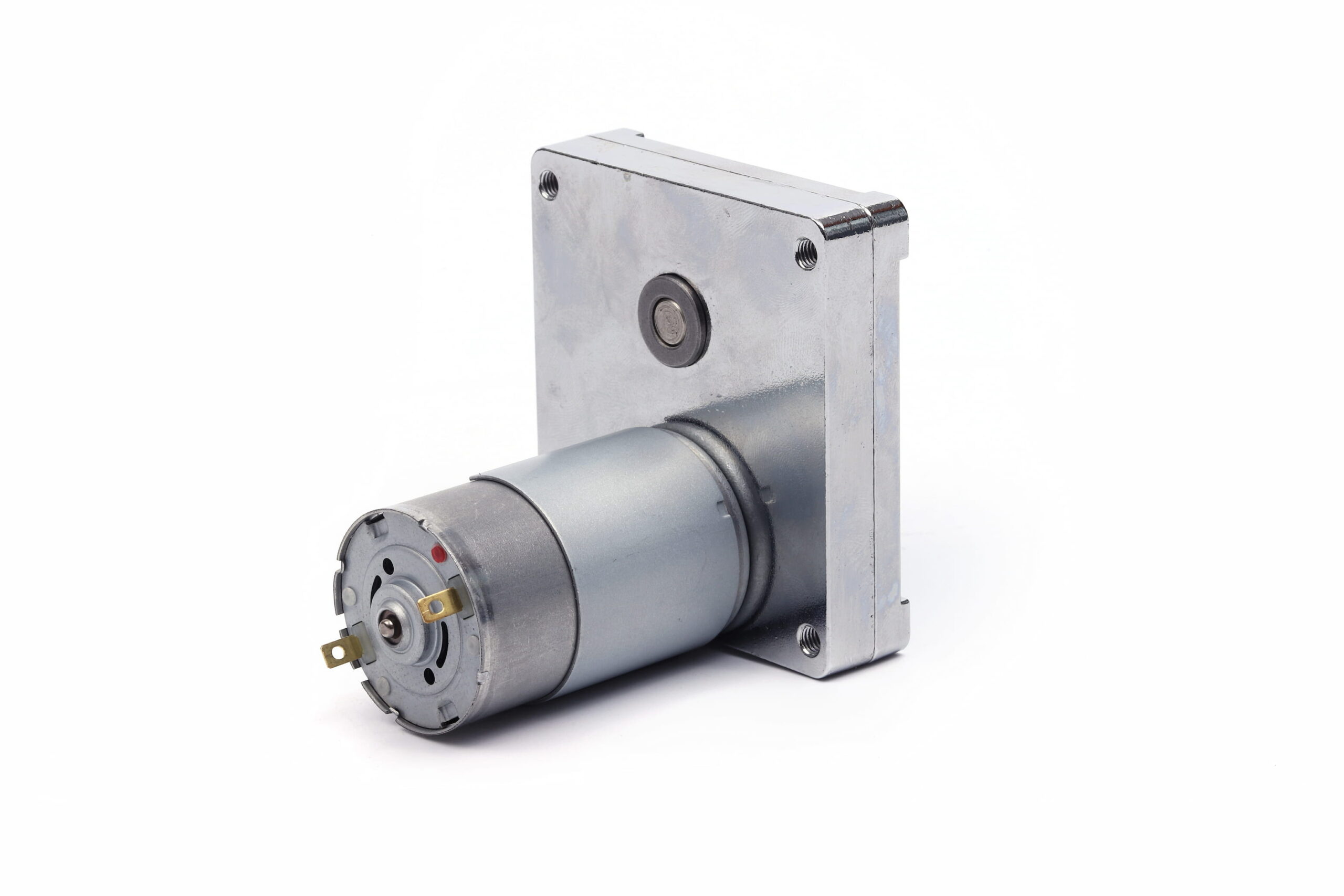

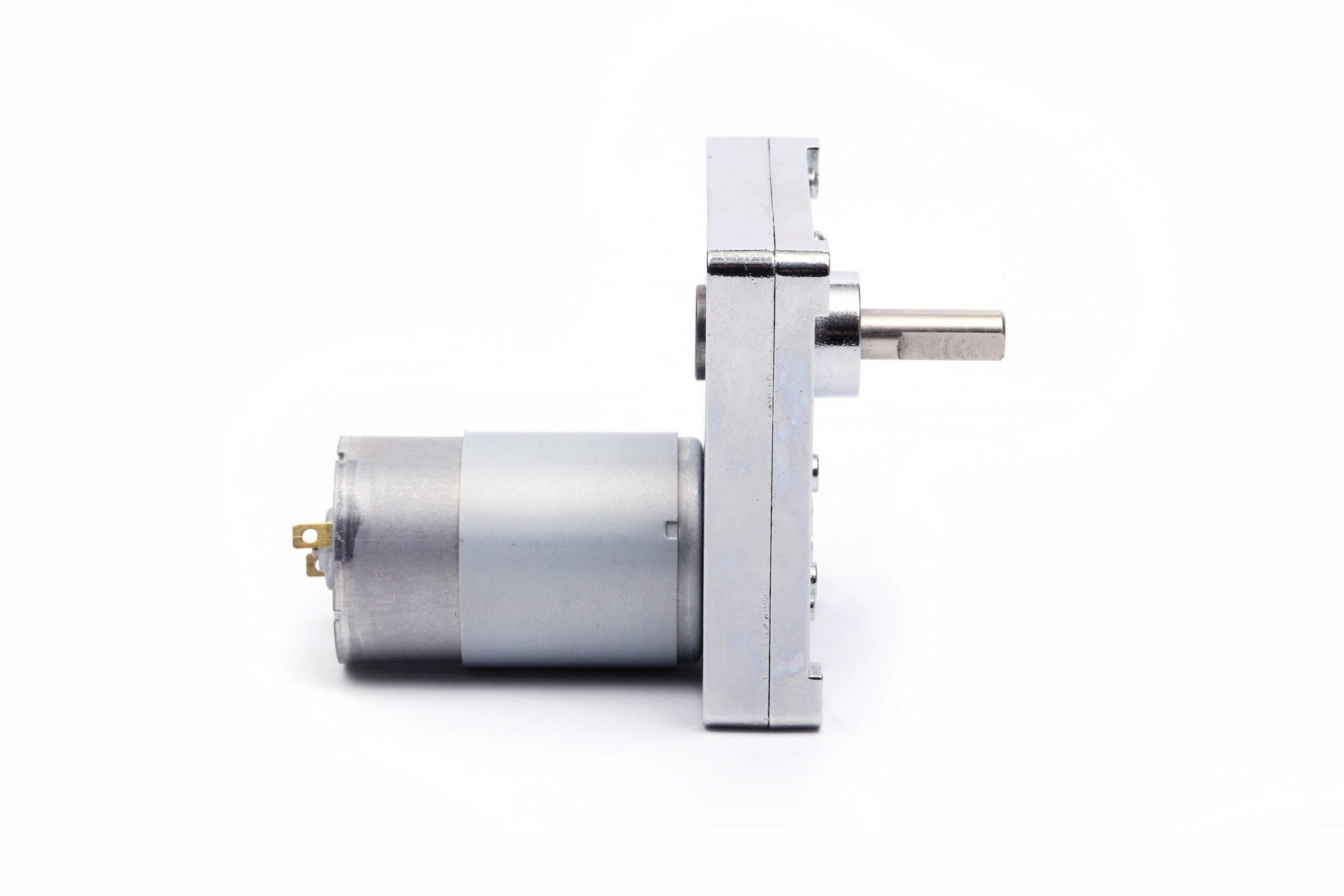

VF-Series High Torque DC Gear Motor
Key Features
- Size:70*76*16.2 mm
- Rated Power:0-150W
- Rated Voltage:12V-24 V
- Rated Speed:5 rpm – 1800 rpm
- High torque, cost-effective choice
- Choice of gear materials: metal, powder, plastic
- 500 - 1200 Continuous working time
- Mounting options for encoders
- Customized solutions
Product Details
| Model | Voltage | Rated Rpm | Rated Current | Rated Torque | Power | Stall Torque |
|---|---|---|---|---|---|---|
| VF123000-392K | 12V | 5.96 | 0.722A | 6.02N.m | 8.674W | 6.74N.m |
| VF124500-139K | 12V | 27 | 0.962A | 1.767N.m | 5.001W | 4.705N.m |
Dimensional Drawing
