DC Gear Motor
SR-37

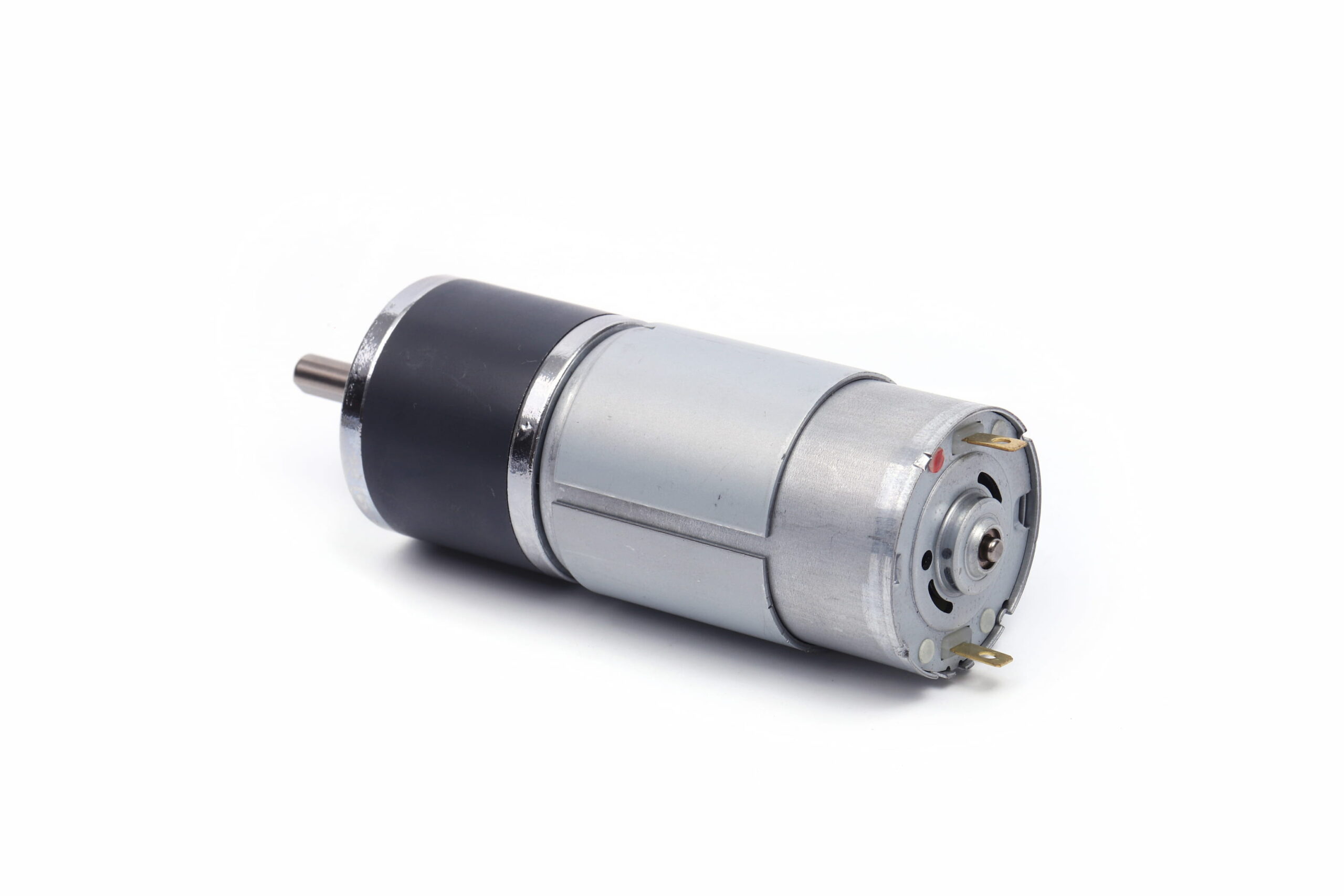

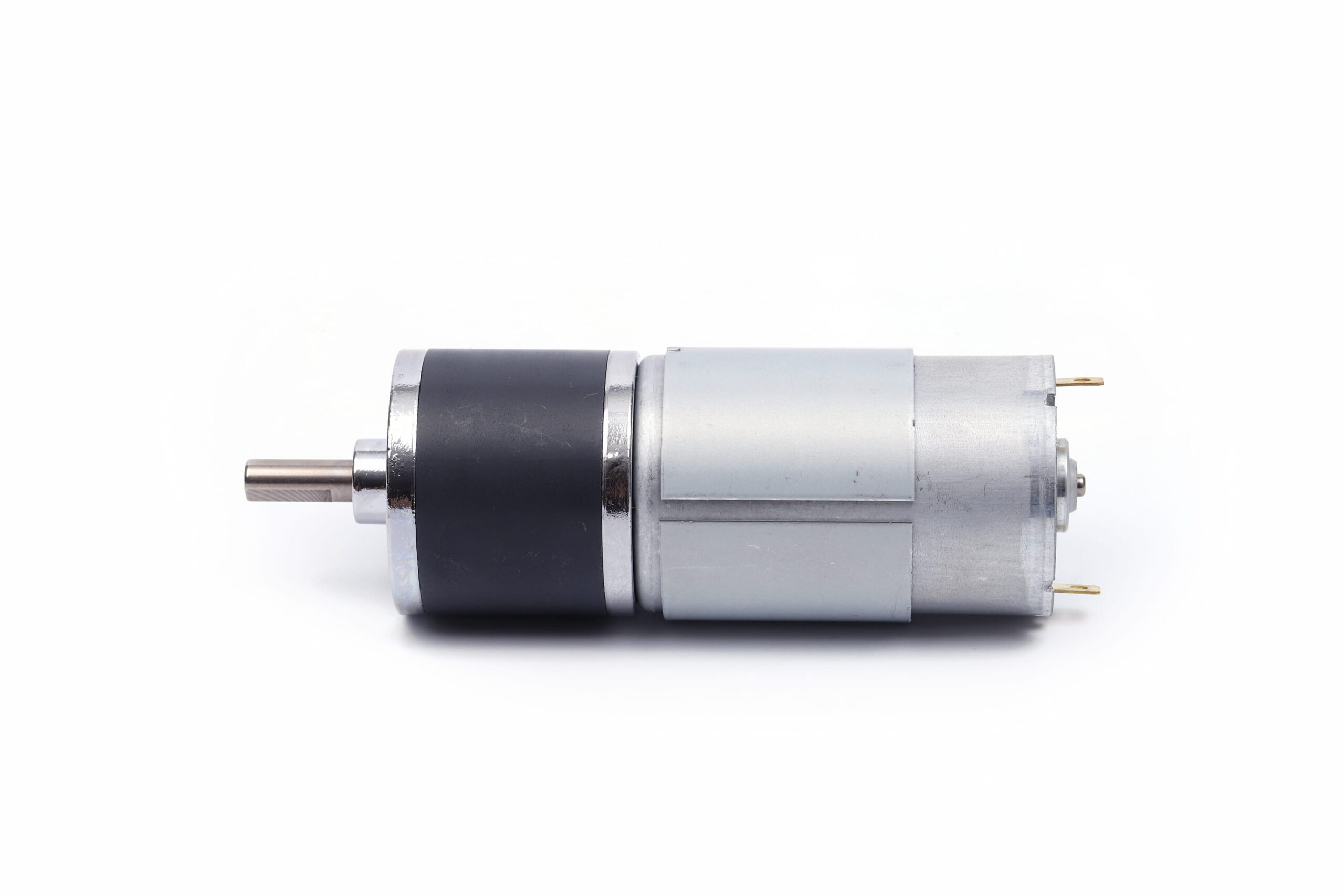

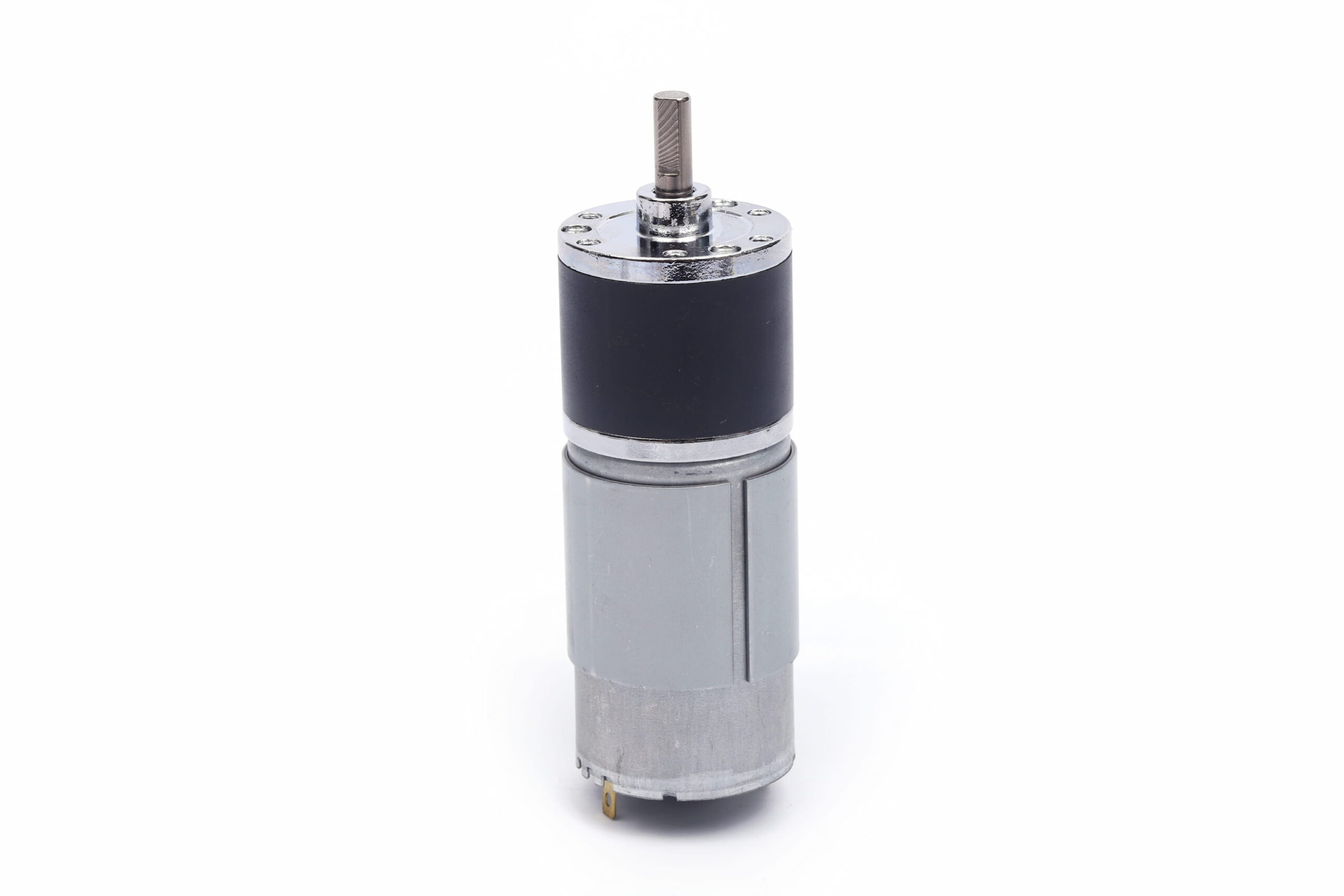

SR-37 37mm DC Geared Motor
Key Features
- Size:33 mm
- Rated Power:0-15W
- Rated Voltage:12V-24 V
- Rated Speed:5 rpm – 2800 rpm
Advantages
- High torque, cost-effective choice
- Choice of gear materials: metal, powder, plastic
- 500 - 1200 Continuous working time
- Mounting options for encoders
- Customized solutions
Product Details
Model | Voltage | Rated Rpm | Rated Current | Rated Torque | Power | Stall Torque | Test Report |
---|---|---|---|---|---|---|---|
RG50M555125000-116K | 12V | 35 | 1200mA | 1.3N.m | 4.9W | 8.8N.m | Click here |
RG50M555244500-13.3K | 24V | 270 | 800mA | 0.3N.m | 7.9W | 1.5N.m | Click here |
RG50M775127000-13.8K | 12V | 430 | 5800mA | 0.7N.m | 32W | 3.8N.m | Click here |
RG50M775245000-30K | 24V | 139 | 1900mA | 1.4N.m | 20.5W | 8.3N.m | Click here |
Dimensional Drawing
