DC Gear Motor

PM-37

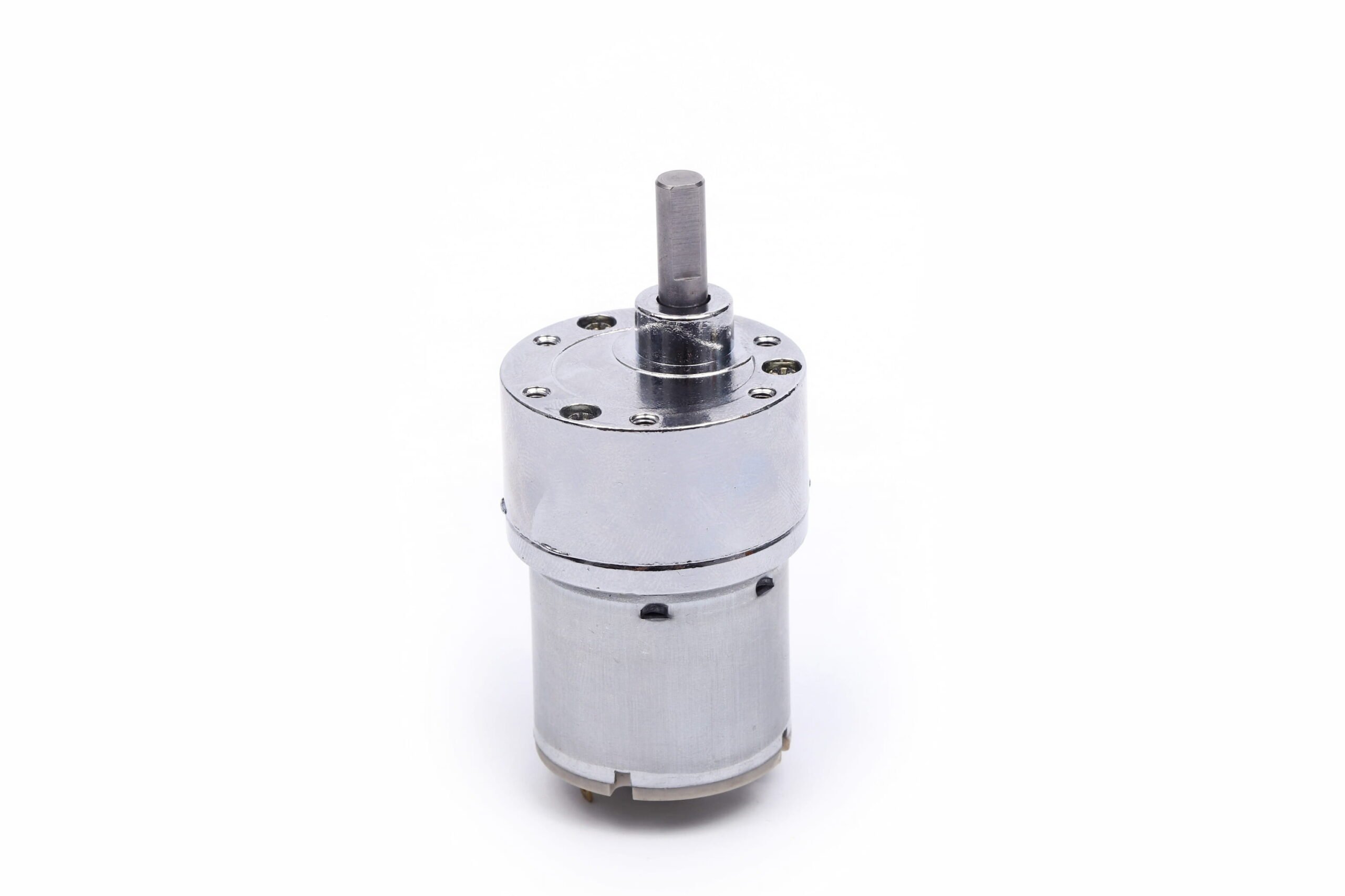

PM-37 37mm DC Geared Motor

Key Features

  • Size:37 mm
  • Rated Power:0-15W
  • Rated Voltage:12V-24 V
  • Rated Speed:5 rpm – 2100 rpm
Advantages
  • High torque, cost-effective choice
  • Choice of gear materials: metal, powder, plastic
  • 500 - 1200 Continuous working time
  • Mounting options for encoders
  • Customized solutions

Product Details

ModelVoltageRated RpmRated CurrentRated TorquePowerStall Torque
PM-37126000-30K12V173280mA86.5mN.m1.5W556mN.m
PM-33243000-540K24V4.5100mA710mN.m0.34W3.40N.m

Dimensional Drawing

PM-37 Size

Applications

Pool Cleanning robot

Precision and Power: Micro Geared Motors for Advanced Pool Cleaning Robots

1. Introdcution With the continuous growth of household wealth and the pursuit of a healthy lifestyle, the number of private…

Read more
