Planetary Gear Motor
PG56-ZY58

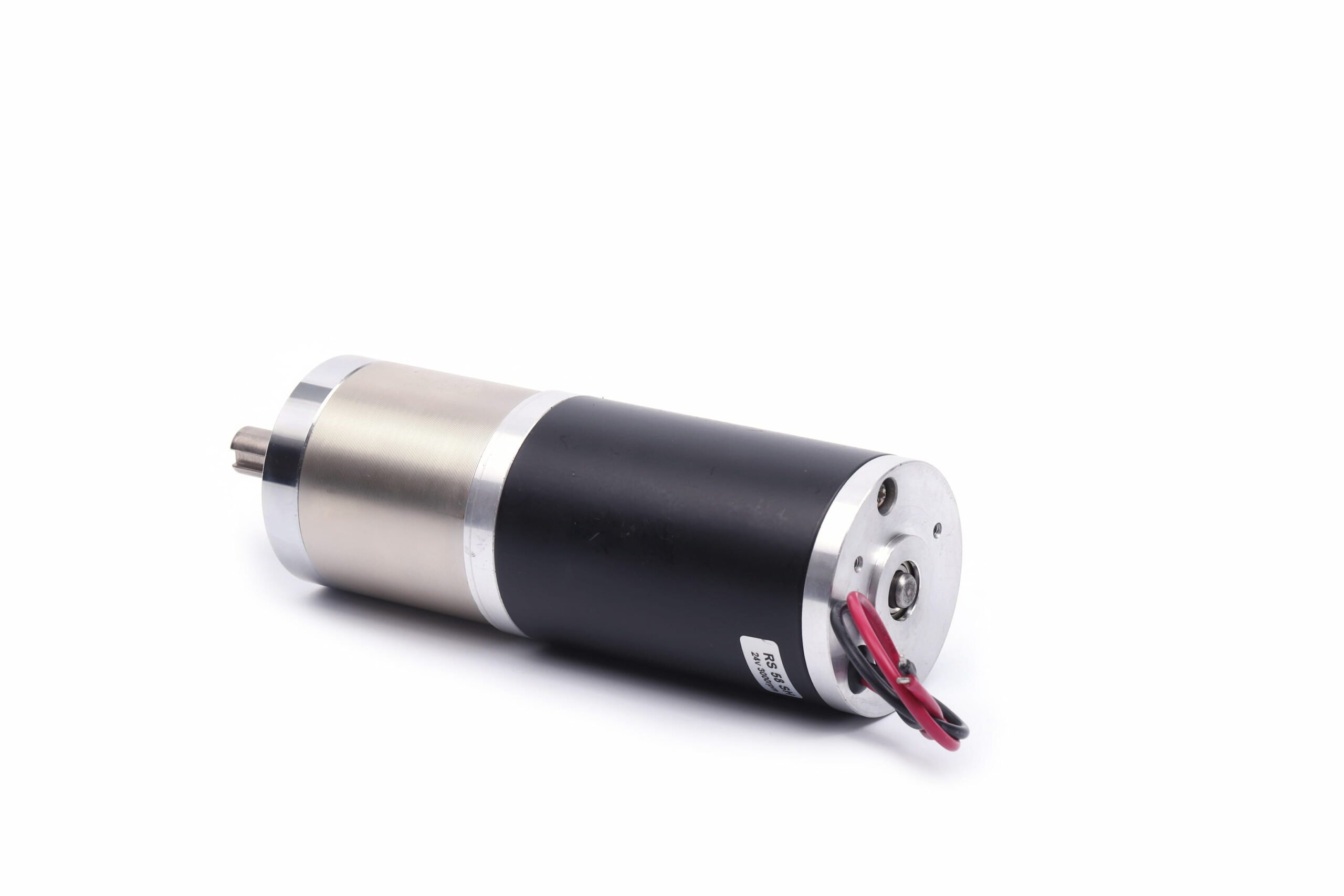

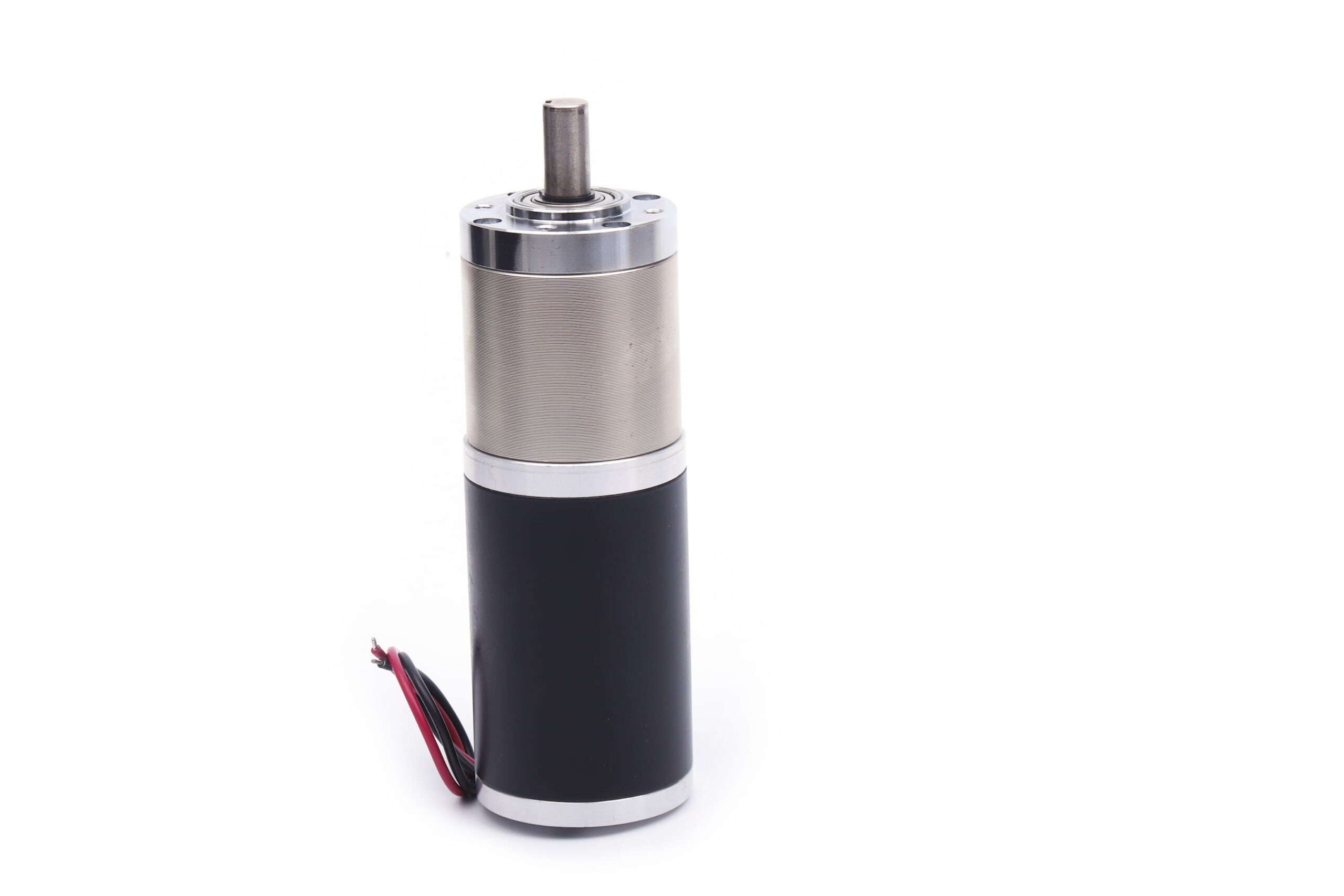

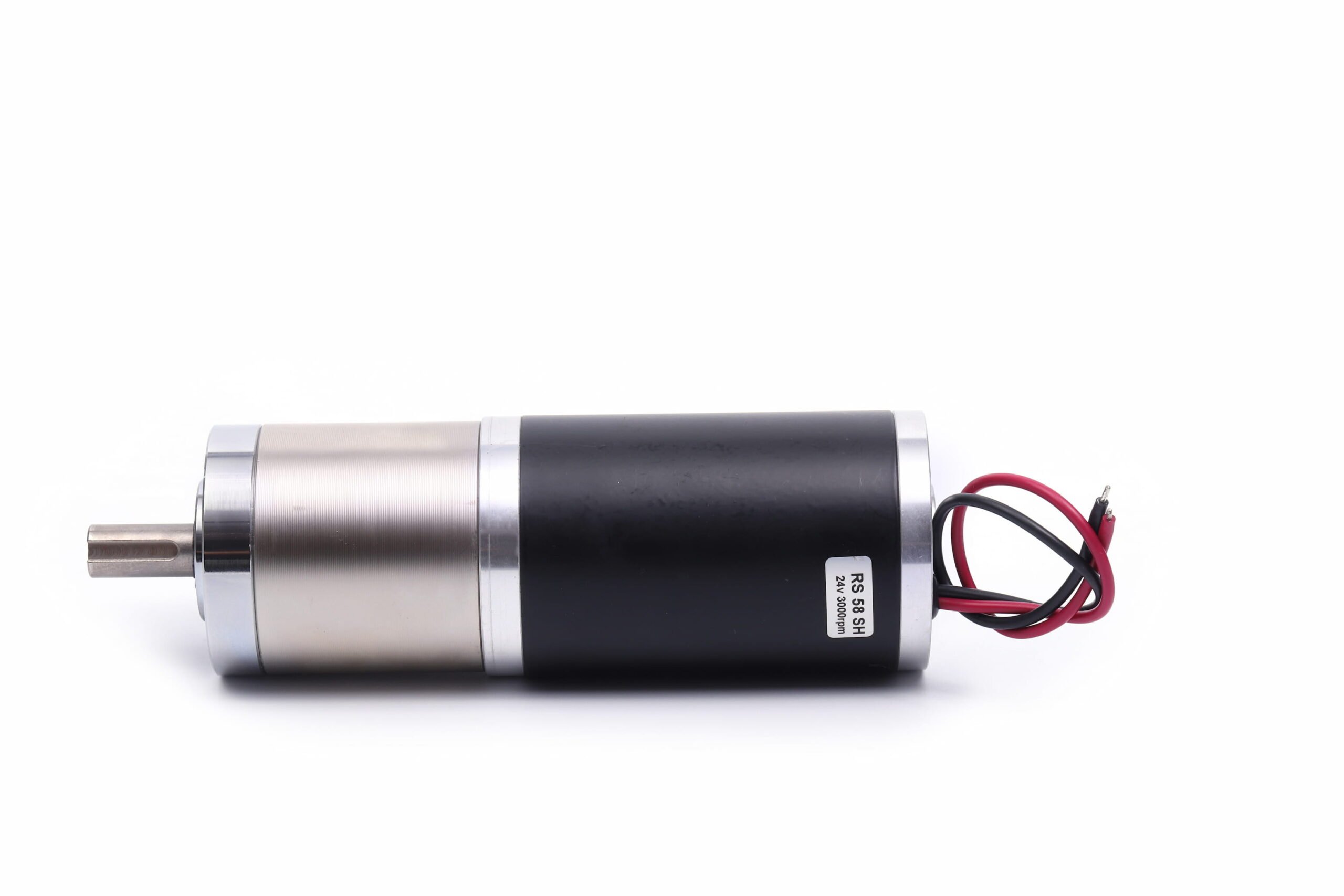

PG56-ZY58 56mm Planetary Gear Motor
Key Features
- Size:56 mm
- Rated Power:0-250W
- Rated Voltage:12V-48V
- Rated Speed:0-1360rpm
Advantages
- High efficiency planetary gear structure
- Choice of gear materials: metal, powder, plastic
- Motor Selection - BLDC Motor / DC Motor / Stepper Motor
- Ball bearings improve motor performance
- Adaptability to working conditions in different environments
- Customized Solutions
Product Details
| Model | Voltage | Rated Rpm | Rated Current | Rated Torque | Power | Stall Torque |
|---|---|---|---|---|---|---|
| PG56ZY58126000-69K | 12V | 81 | 11.1A | 8.69N.m | 74.02W | 50.9N.m |
| PG56ZY58243000-13K | 24V | 197 | 2.94A | 2.03N.m | 41.99W | 112.65N.m |
| PG56ZY58243000-102K | 24V | 26 | 2.84A | 12.73N.m | 34.55W | 84.87N.m |
| PG56ZY58246000-1567K | 24V | 2.9 | 3.29A | 101N.m | 30.87W | 475.9N.m |
Dimensional Drawing
