PG52-997

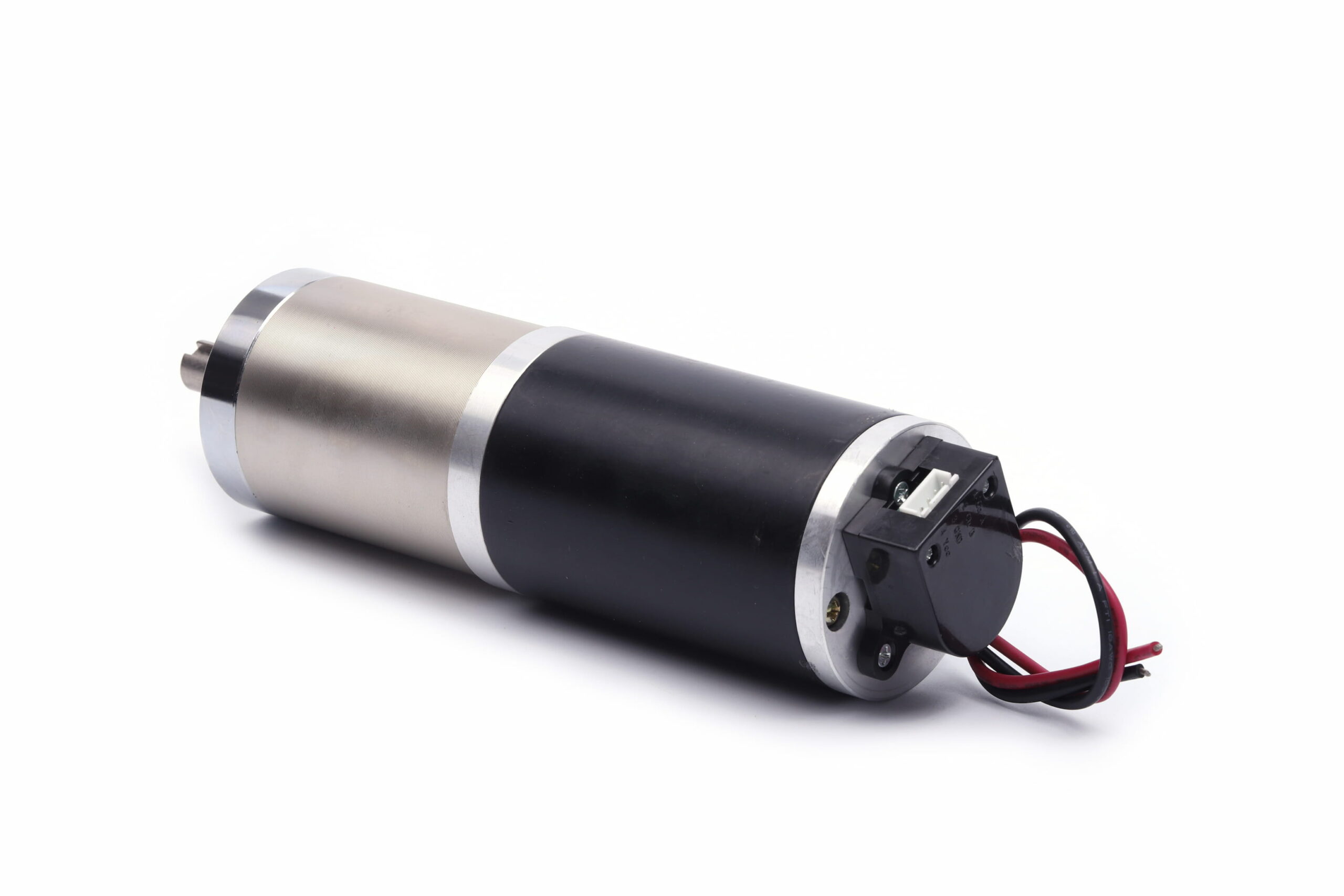

PG52-997 52mm Planetary Gear Motor
Key Features
- Size:52 mm
- Rated Power:0-250W
- Rated Voltage:12V-24V
- Rated Speed:3-2500rpm
- High efficiency planetary gear structure
- Choice of gear materials: metal, powder, plastic
- Motor Selection - BLDC Motor / DC Motor / Stepper Motor
- Ball bearings improve motor performance
- Adaptability to working conditions in different environments
- Customized Solutions
Product Details
| Model | Voltage | Rated Rpm | Rated Current | Rated Torque | Power | Stall Torque |
|---|---|---|---|---|---|---|
| PG52997 | 12V | 298 | 0.74A | 0.11N.m | 3.6W | 0.51N.m |
| PG28395126000-15.5K | 12V | 306 | 1.07A | 0.20N.m | 6.52W | 1.071N.m |
| PG283952412000-15.5K | 24V | 790 | 0.49A | 0.14N.m | 11.70W | 1.52N.m |
| PG28BL28126000-241K | 12V | 19.8 | 0.83A | 2.07N.m | 4.30W | 8.53N.m |
Dimensional Drawing
