Outrunner BLDC Motor
MX42-PG52

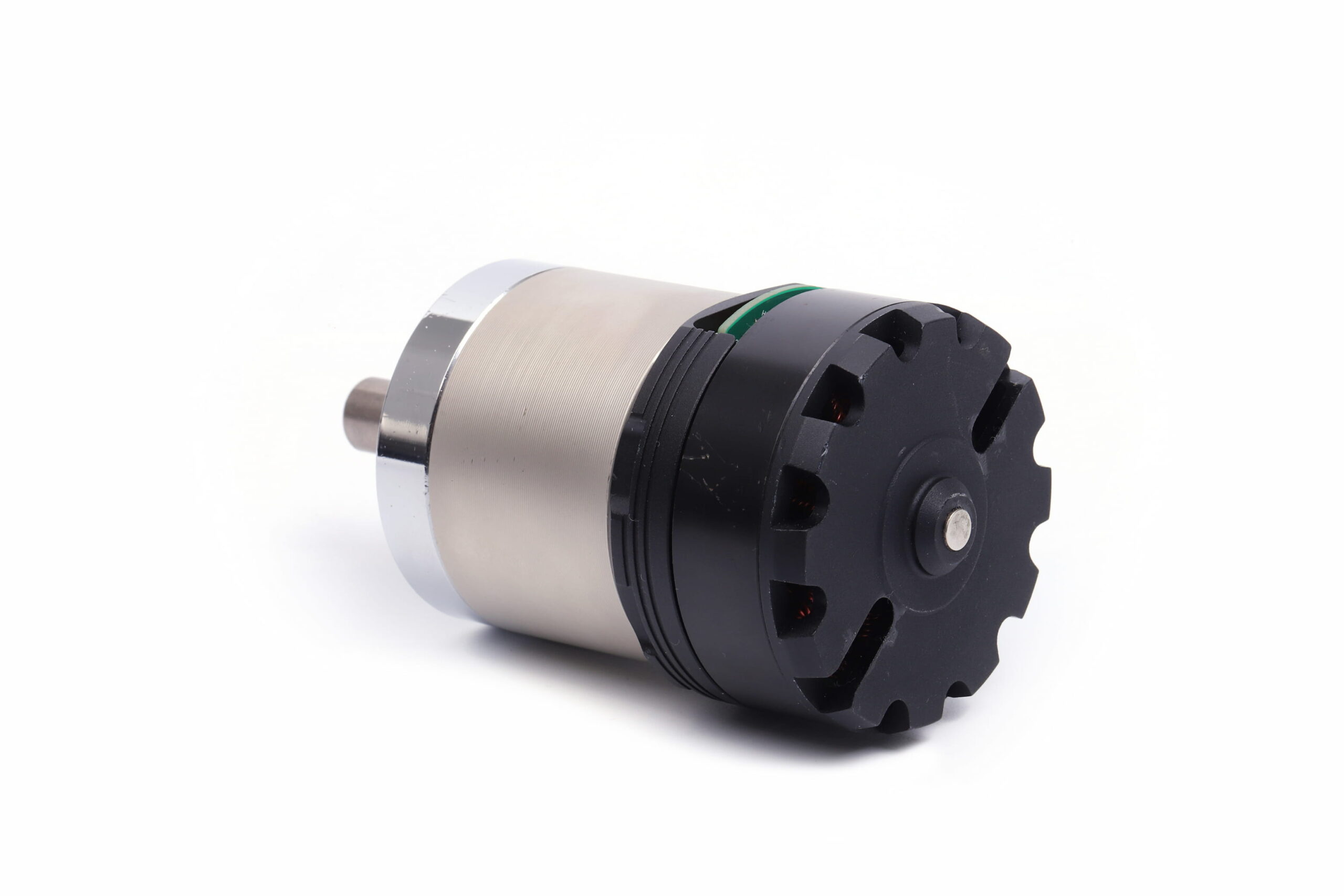

MX42-PG52 36mm BLDC Outrunner Motor with planetary gearbox
Key Features
- Size:63 mm
- Number of pole pairs:7
- Number of phases:3
- Length:92.1 mm
- Ingress Protection:IP44
- Shaft diameter:8
Advantages
- Cost effective positioning drive without encoder
- High power density
- Very high acceleration
- Extremely fast change of direction possible
- Long-lasting
- Wide operating temperature range
- Full-, half- and micro-stepping operation possible
- Extremely low rotor inertia
Product Details
Model | Voltage | Rated Rpm | Rated Current | Rated Torque | Power | Stall Torque | Test Report |
---|---|---|---|---|---|---|---|
RG50M555125000-116K | 12V | 35 | 1200mA | 1.3N.m | 4.9W | 8.8N.m | Click here |
RG50M555244500-13.3K | 24V | 270 | 800mA | 0.3N.m | 7.9W | 1.5N.m | Click here |
RG50M775127000-13.8K | 12V | 430 | 5800mA | 0.7N.m | 32W | 3.8N.m | Click here |
RG50M775245000-30K | 24V | 139 | 1900mA | 1.4N.m | 20.5W | 8.3N.m | Click here |
Dimensional Drawing
