Outrunner BLDC Motor
MX-53

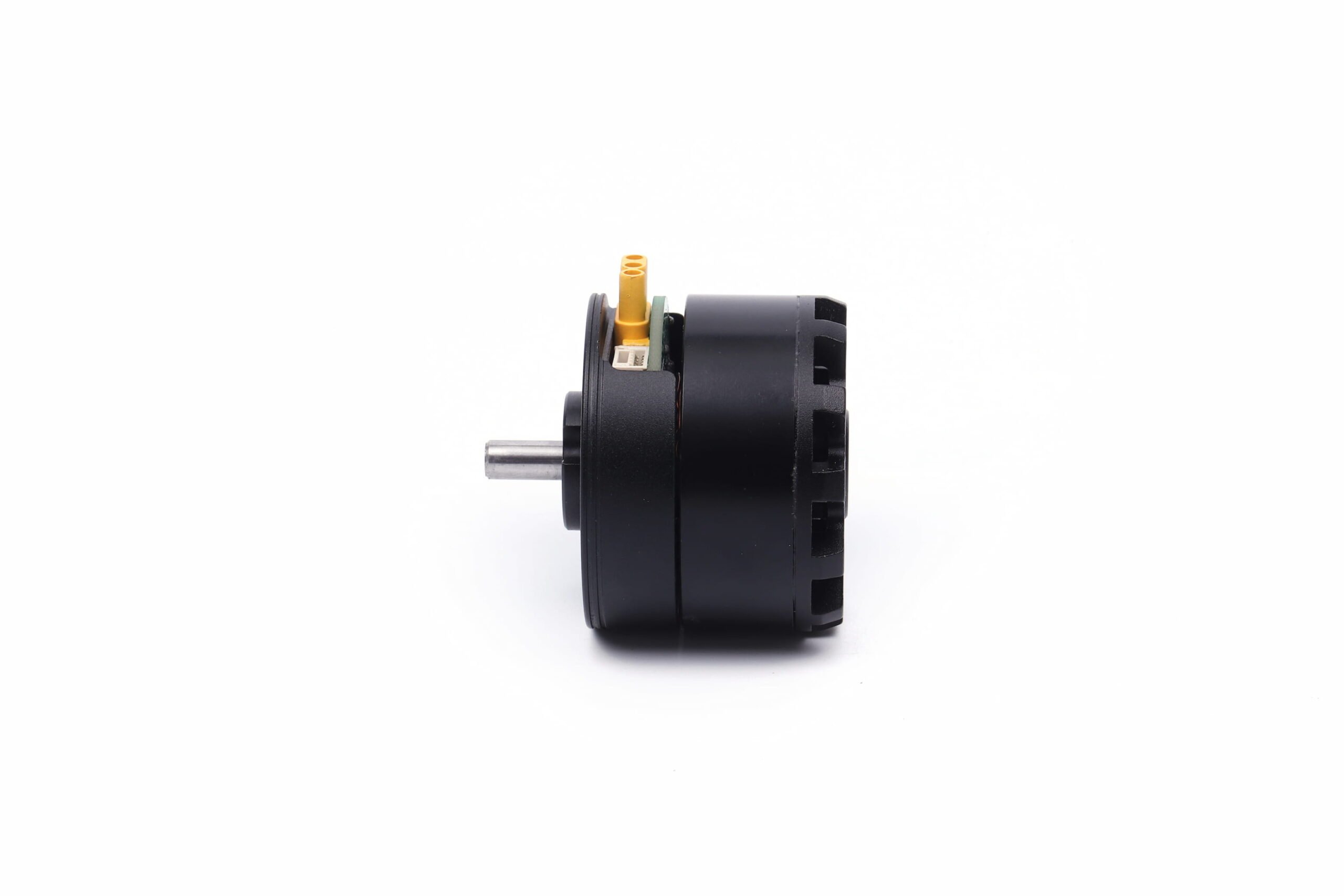

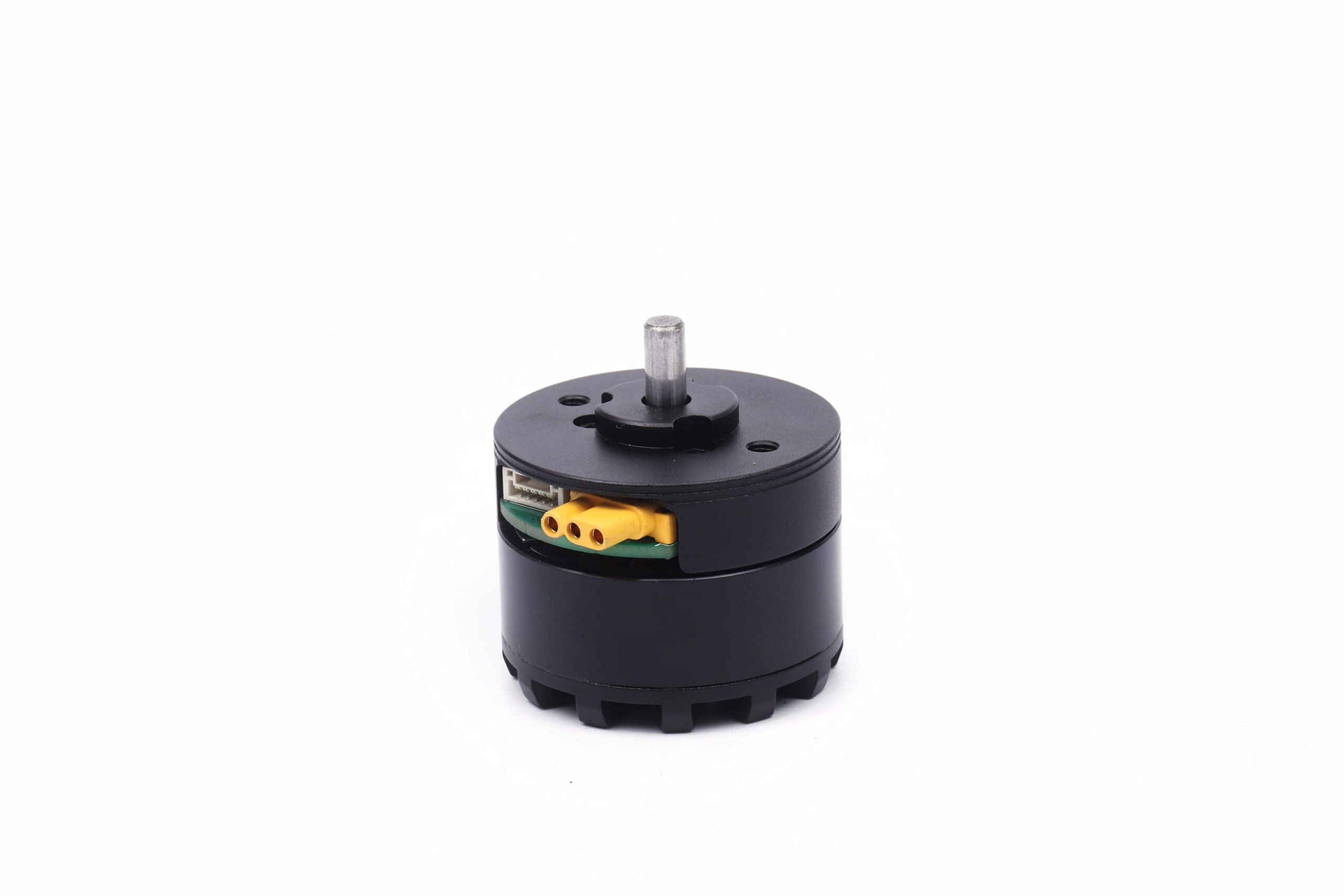

MX53 62mm BLDC Outrunner Motor
Key Features
- Size:63 mm
- Number of pole pairs:7
- Length:37mm
- Rotor interia:8.2uNm*s²
- Weight:300g
- Ingress Protection:IP44
- Speed Constant:Custom
Advantages
- Flat BLDC Motor
- High torque density design
- Larger rotor volume - stronger magnetism
- Radial magnetic field
- Rotation accuracy
- Customized solutions
Product Details
Model | Voltage | Rated Rpm | Rated Current | Rated Torque | Power | Stall Torque |
---|---|---|---|---|---|---|
MX5310KV200 | 24V | 3600 | 500mA | 0.5N.m | 400W | 1.2N.m |
MX5310KV200 | 48V | 7200 | 700mA | 1N.m | 1500W | 2.3N.m |
Dimensional Drawing
Applications
Precision and Power: Micro Geared Motors for Advanced Pool Cleaning Robots
1. Introdcution With the continuous growth of household wealth and the pursuit of a healthy lifestyle, the number of private…
Read moreDownloads
Product 3D Files:
File Name | Format | Size | Download |
---|---|---|---|
Product PDF Files:
File Name | Format | Size | Download |
---|---|---|---|
MX5310KV200 | 328 KB | Download | |
