Outrunner BLDC Motor

MX-33

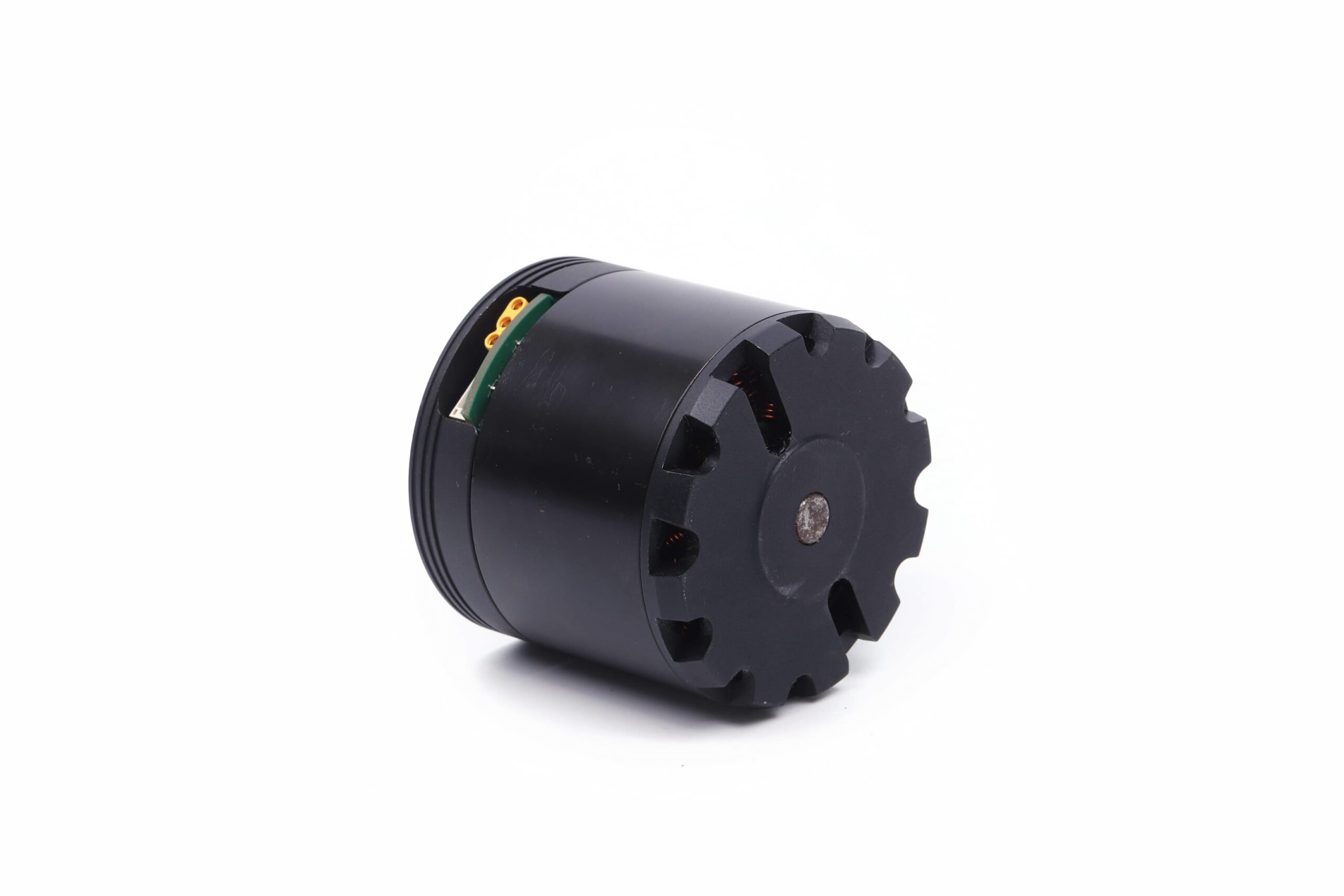

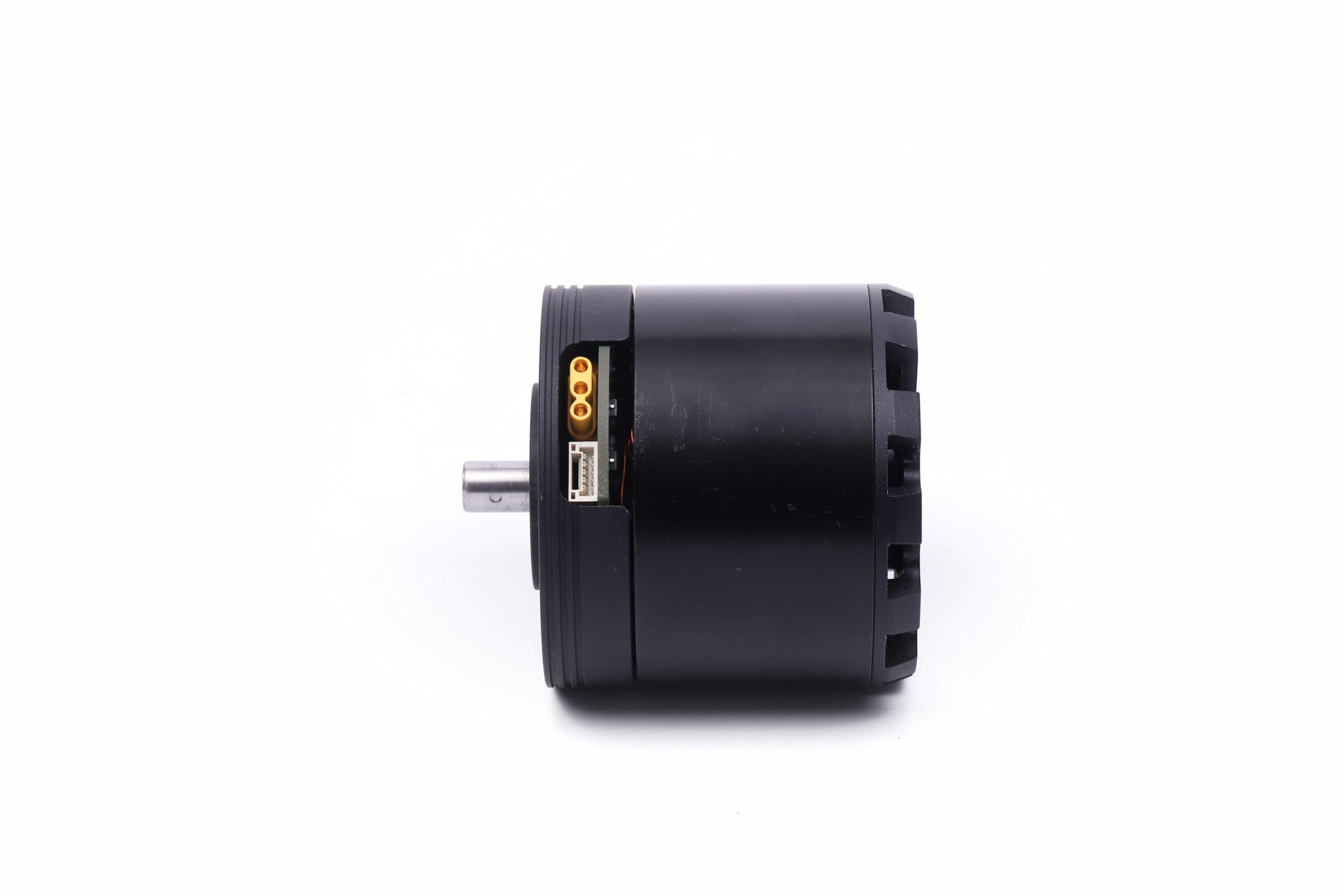

MX33 42mm BLDC Outrunner

Key Features

  • Size:42 mm
  • Number of pole pairs:7
  • Length:32mm
  • Rotor interia:2.7uNm*s²
  • Weight:130g
  • Ingress Protection:IP44
  • Speed Constant:Customized
Advantages
  • Flat BLDC Motor
  • High torque density design
  • Larger rotor volume - stronger magnetism
  • Radial magnetic field
  • Rotation accuracy
  • Customized solutions

Product Details

ModelVoltageRated RpmRated CurrentRated TorquePowerStall Torque
MX3310KV12512V11000.8A1.3N.m4.9W8.8N.m
MX3310KV12524V21001.6A0.3N.m7.9W1.5N.m

Dimensional Drawing

MX3310 - SIZE

Applications

Pool Cleanning robot

Precision and Power: Micro Geared Motors for Advanced Pool Cleaning Robots

1. Introdcution With the continuous growth of household wealth and the pursuit of a healthy lifestyle, the number of private…

Read more

Downloads

Product 3D Files:

File Name

Format

Size

Download

Product PDF Files:

File Name

Format

Size

Download

MX3310KV125

334 KB

Download
