Outrunner BLDC Motor
MX-28

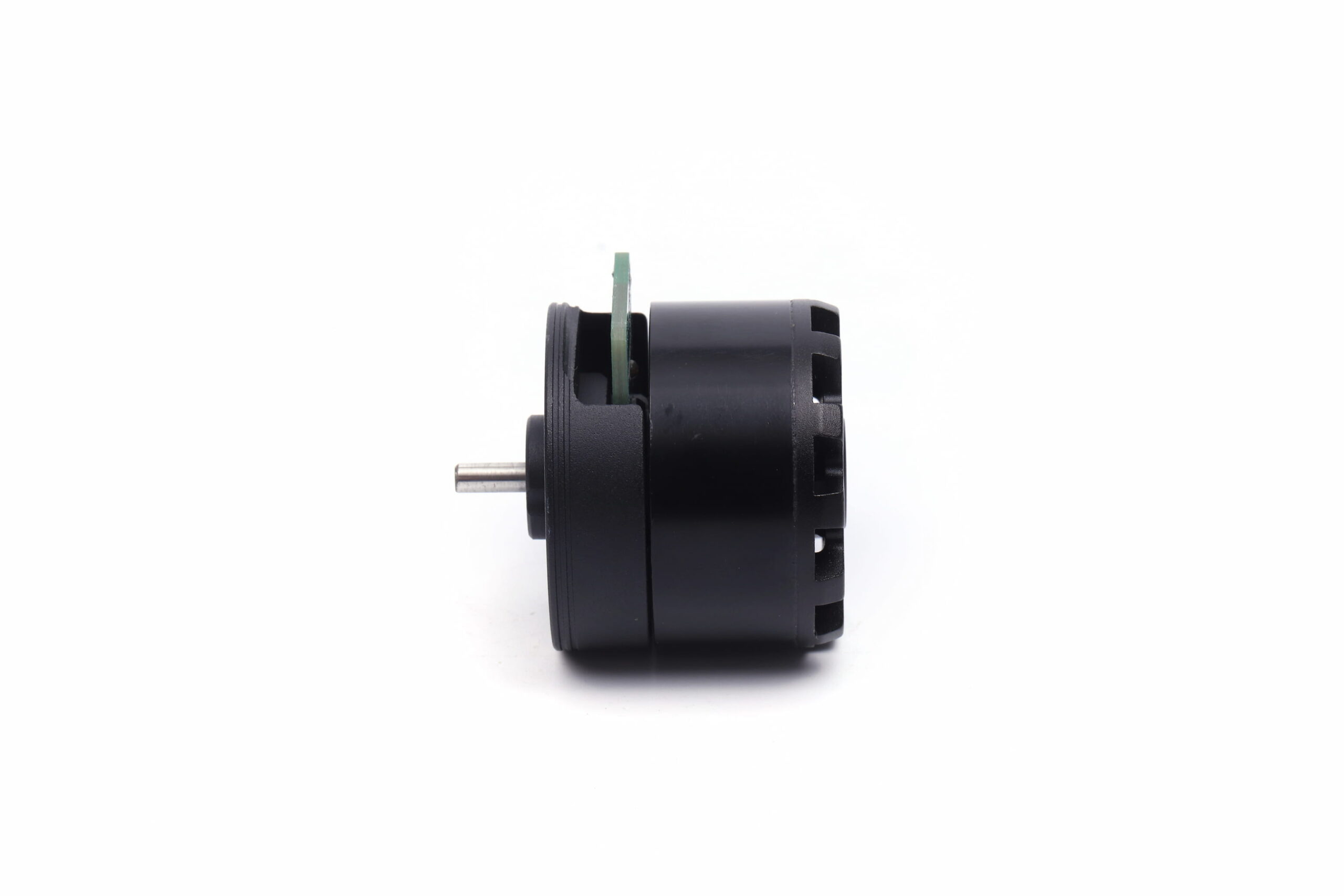

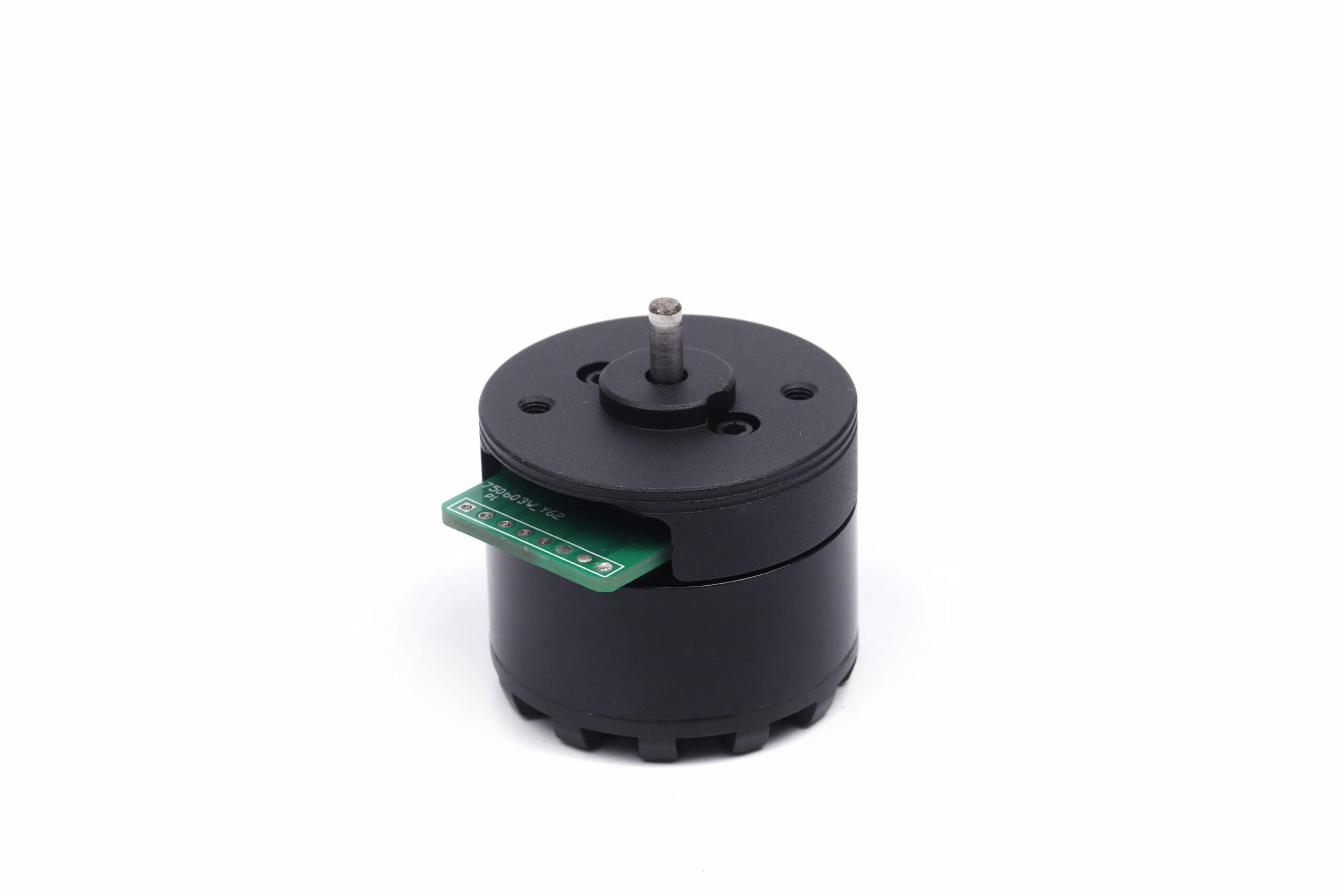

MX-28 36mm BLDC Outrunner Motor
Key Features
- Size:36 mm
- Number of pole pairs:7
- Length:30mm
- Rotor interia:1.6uNm*s²
- Weight:90g
- Ingress Protection:IP44
- Speed Constant:Customized
Advantages
- Flat BLDC Motor
- High torque density design
- Larger rotor volume - stronger magnetism
- Radial magnetic field
- Rotation accuracy
- Customized solutions
Product Details
Model | Voltage | Rated Rpm | Rated Current | Rated Torque | Power | Stall Torque |
---|---|---|---|---|---|---|
MX2810KV150 | 12V | 1150 | 0.9A | 47mN.m | 6W | 120mN.m |
MX2810KV150 | 24V | 2400 | 1.4A | 77mN.m | 22W | 180mN.m |
MX2810KV200 | 12V | 1800 | 1A | 47mN.m | 12W | 160mN.m |
MX2810KV200 | 24V | 3400 | 1.9A | 92mN.m | 38W | 230mN.m |
Dimensional Drawing
