DC Motor
DC-370

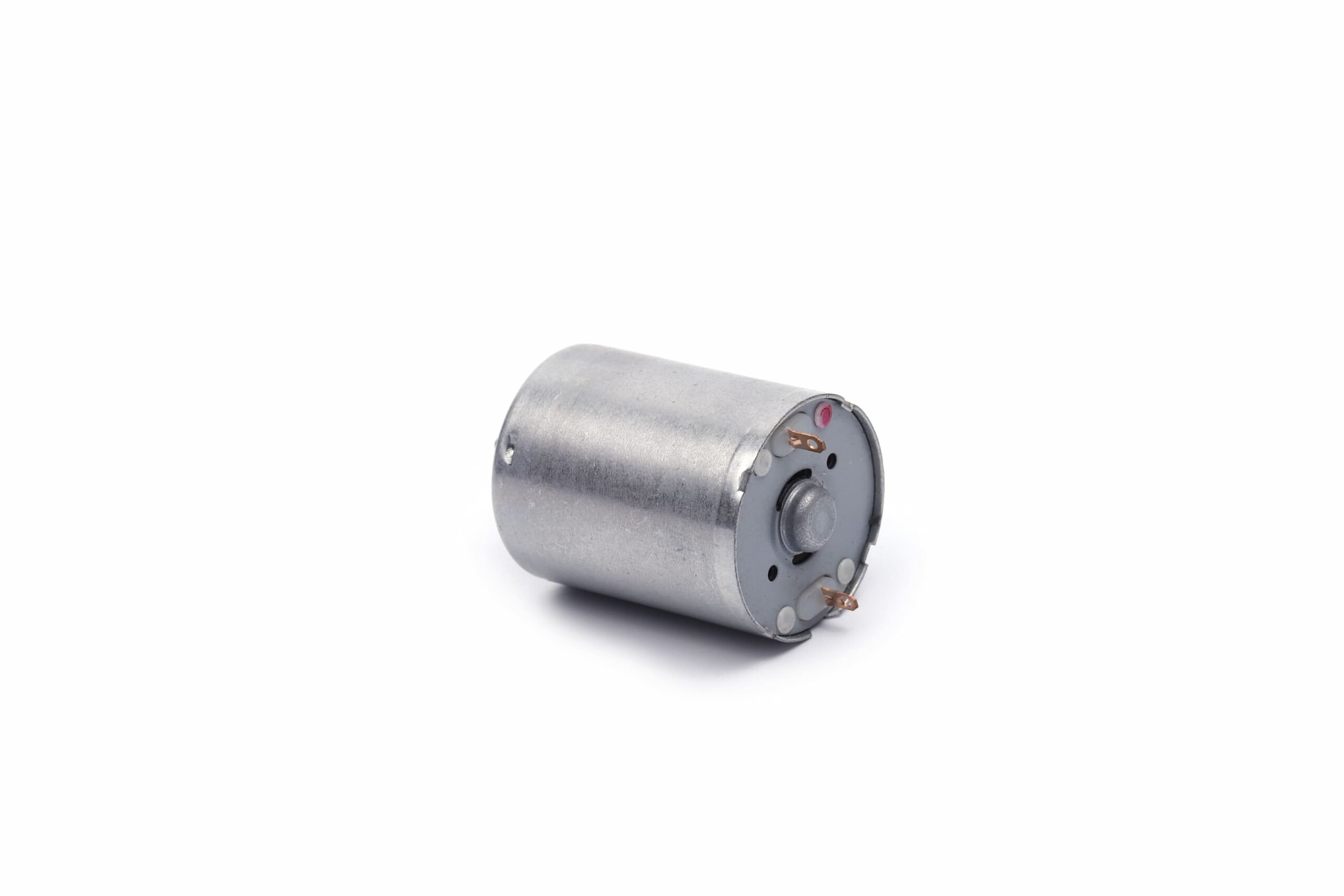

370 DC Brush Motor
Key Features
- Size:24.4 mm
- Length:0-10W
- Rated Voltage:12V-24V
- Rated Speed:3000 rpm – 15000 rpm
Advantages
- High dynamic performance brush DC motor
- High performance rubidium iron-boron magnet
- Operating temperature range from -30° to 100°
- Precision bearing options
- Pure graphite carbon brush
- Low noise
Product Details
Model | Voltage | Rated Rpm | Rated Current | Rated Torque | Power | Stall Torque | Stall Current |
---|---|---|---|---|---|---|---|
370-123000 | 12V | 2200 | 55mA | 15gf-cm | 0.33W | 60gf-cm | 280mA |
370-126000 | 12V | 5264 | 180mA | 30gf-cm | 1.57W | 240gf-cm | 1260mA |
370-246000 | 24V | 5295 | 110mA | 30gf-cm | 1.68W | 265gf-cm | 750mA |
Dimensional Drawing
