DC-2953

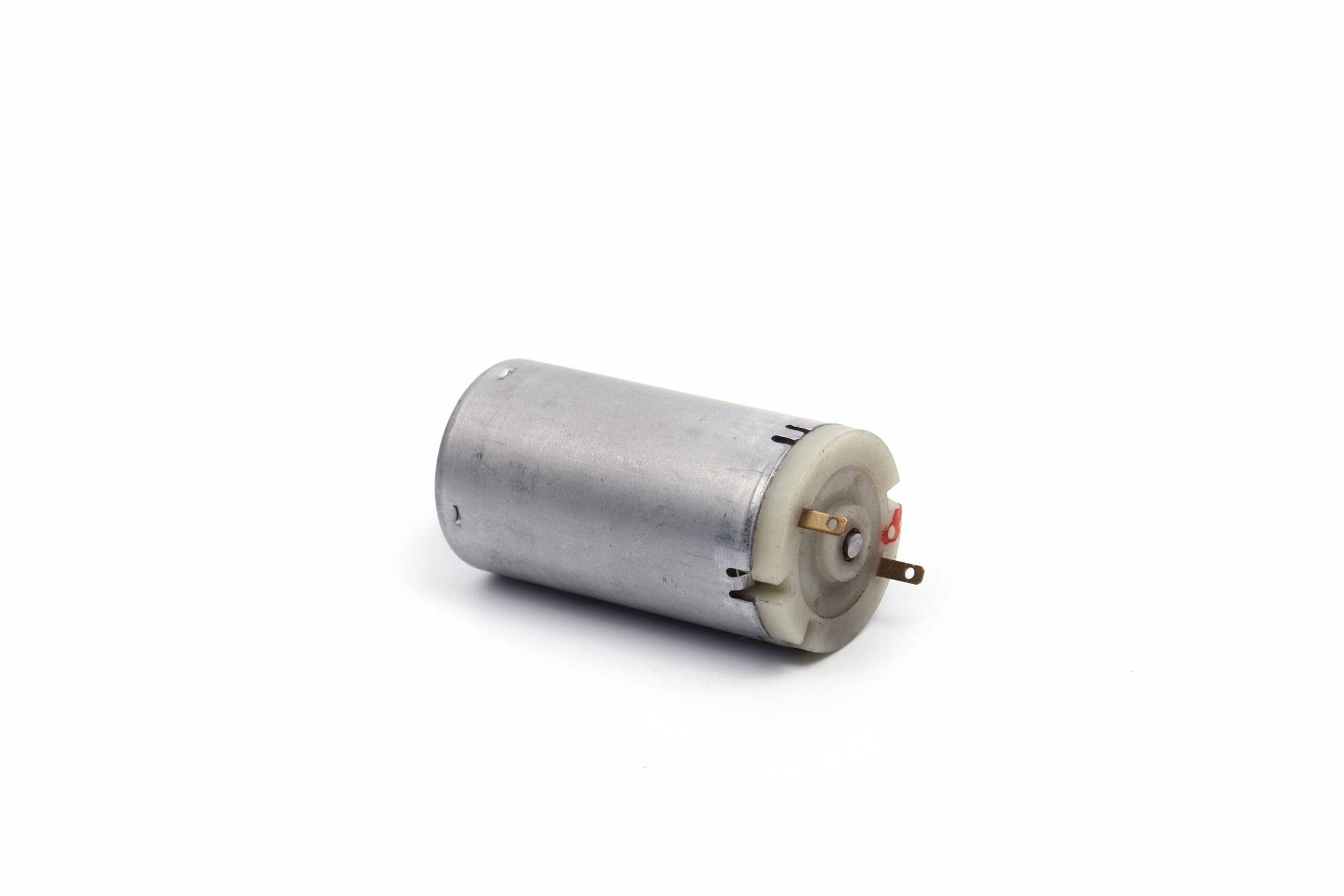

2953 DC Brush Motor
Key Features
- Size:29 mm
- Length:53 mm
- Rated Voltage:12V-48V
- Rated Speed:3000 rpm – 20000 rpm
- High dynamic performance brush DC motor
- High performance rubidium iron-boron magnet
- Operating temperature range from -30° to 100°
- Precision bearing options
- Pure graphite carbon brush
- Low noise
Product Details
| Model | Voltage | Rated Rpm | Rated Current | Rated Torque | Power | Stall Torque | Efficiency |
|---|---|---|---|---|---|---|---|
| 775-247000 | 24V | 5862 | 2.19A | 620g-cm | 37.3W | 4519g-cm | 72% |
| 775-123000 | 12V | 2523 | 1.12A | 382g-cm | 9.9W | 3205g-cm | 74% |
| 775-1218000 | 12V | 16287 | 1.05A | 1052g-cm | 175W | 8814g-c | 81% |
| 775-1822000 | 18V | 18939 | 1.74A | 1741g-cm | 338W | 12920g-cm | 79% |
Dimensional Drawing
