Details

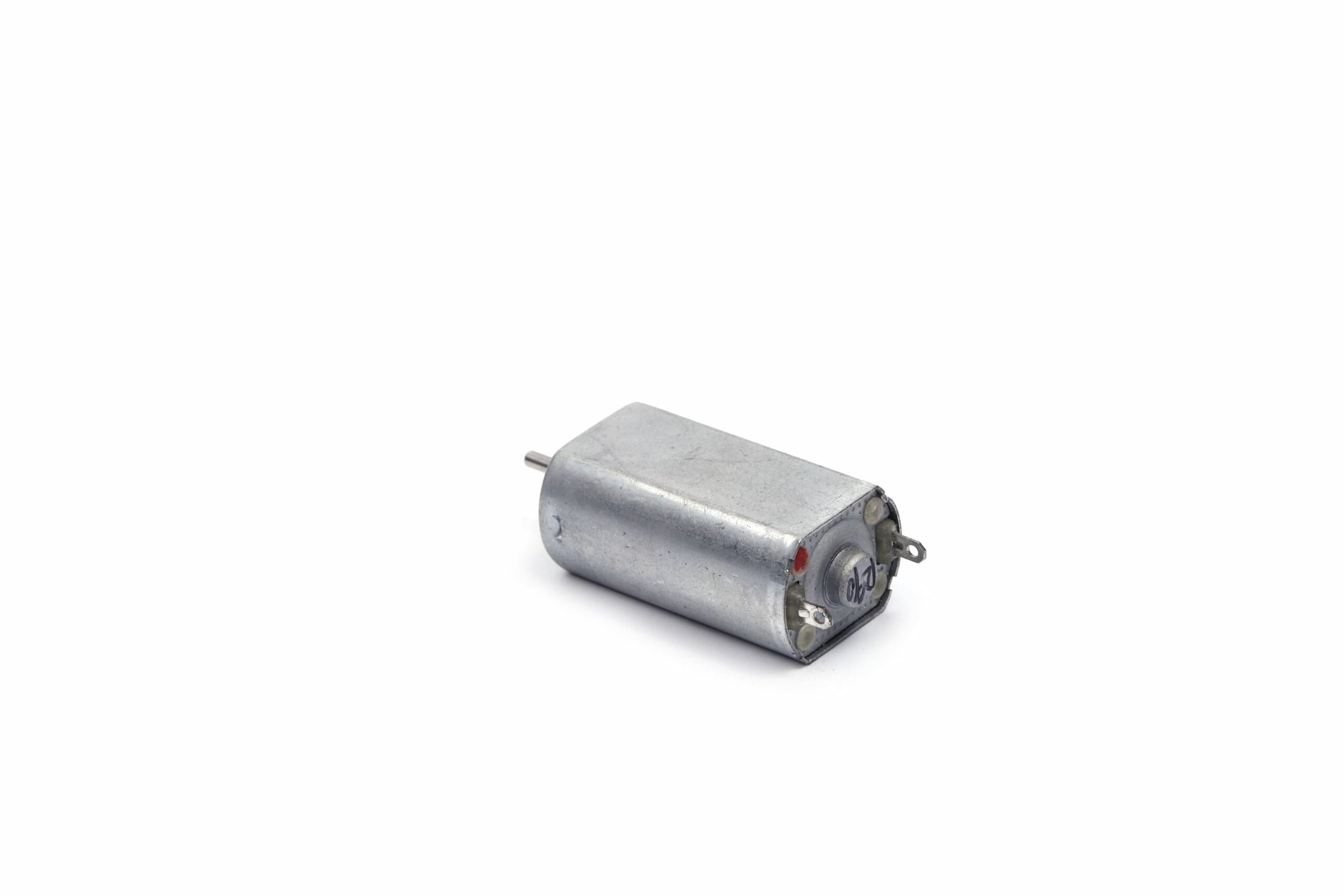

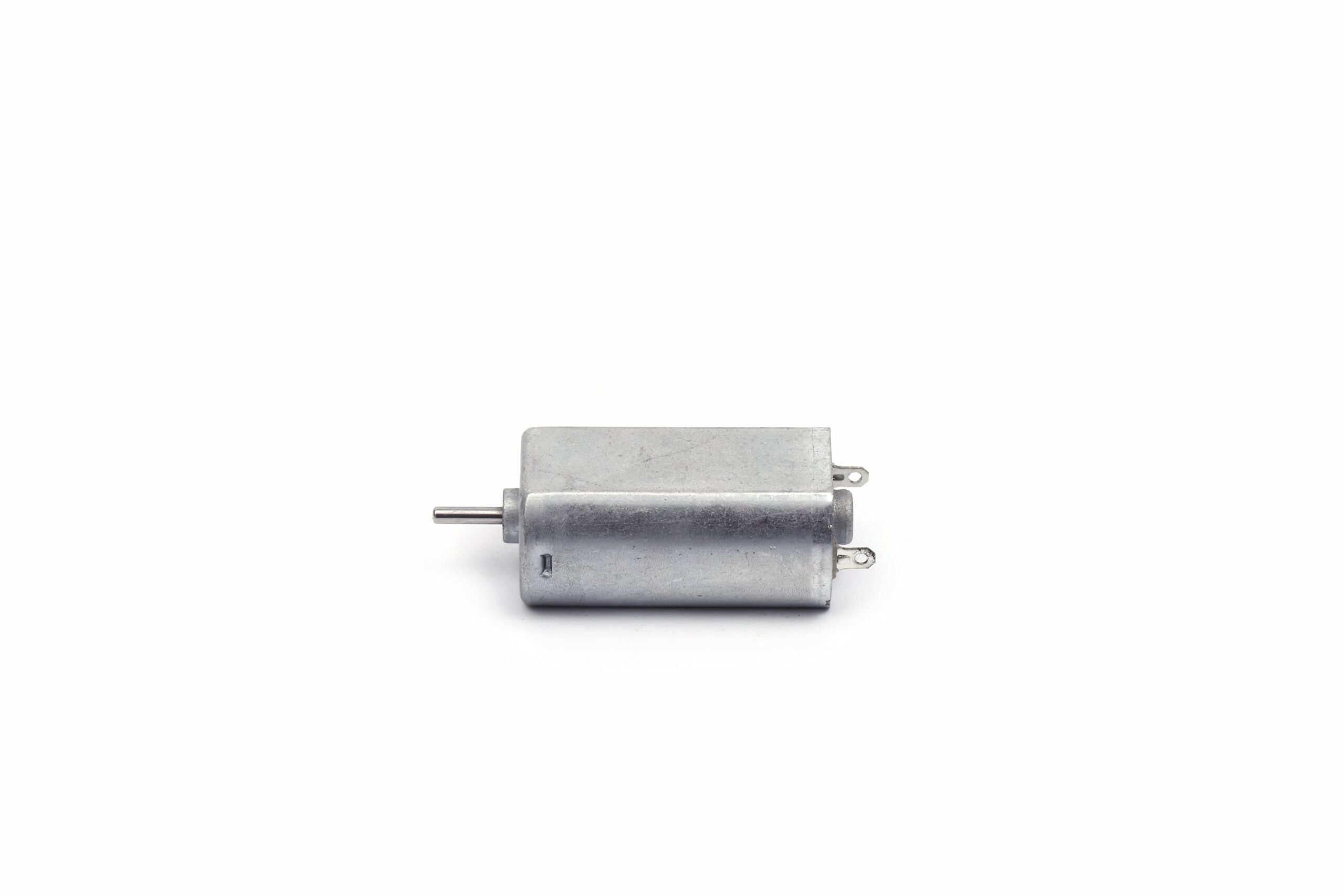

DC Motor

DC-050

050 DC Brush Motor

Key Features

  • Size:15.5 mm
  • Length:0-3W
  • Rated Voltage:12V-24V
  • Rated Speed:3000-14000rpm
Advantages
  • High dynamic performance brush DC motor
  • High performance rubidium iron-boron magnet
  • Operating temperature range from -30° to 100°
  • Precision bearing options
  • Pure graphite carbon brush
  • Low noise

Product Details

ModelVoltageRated RpmRated CurrentRated TorquePowerStall Torque Efficiency
05012900012V7000140mA8g-cm0.5W45g-cm72%
050121200012V9600180mA10g-cm0.96W10g-cm65%
050-241300024V10000110mA12g-cm1.2W49g-cm62%

Dimensional Drawing
