BLDC Motor

BL3657

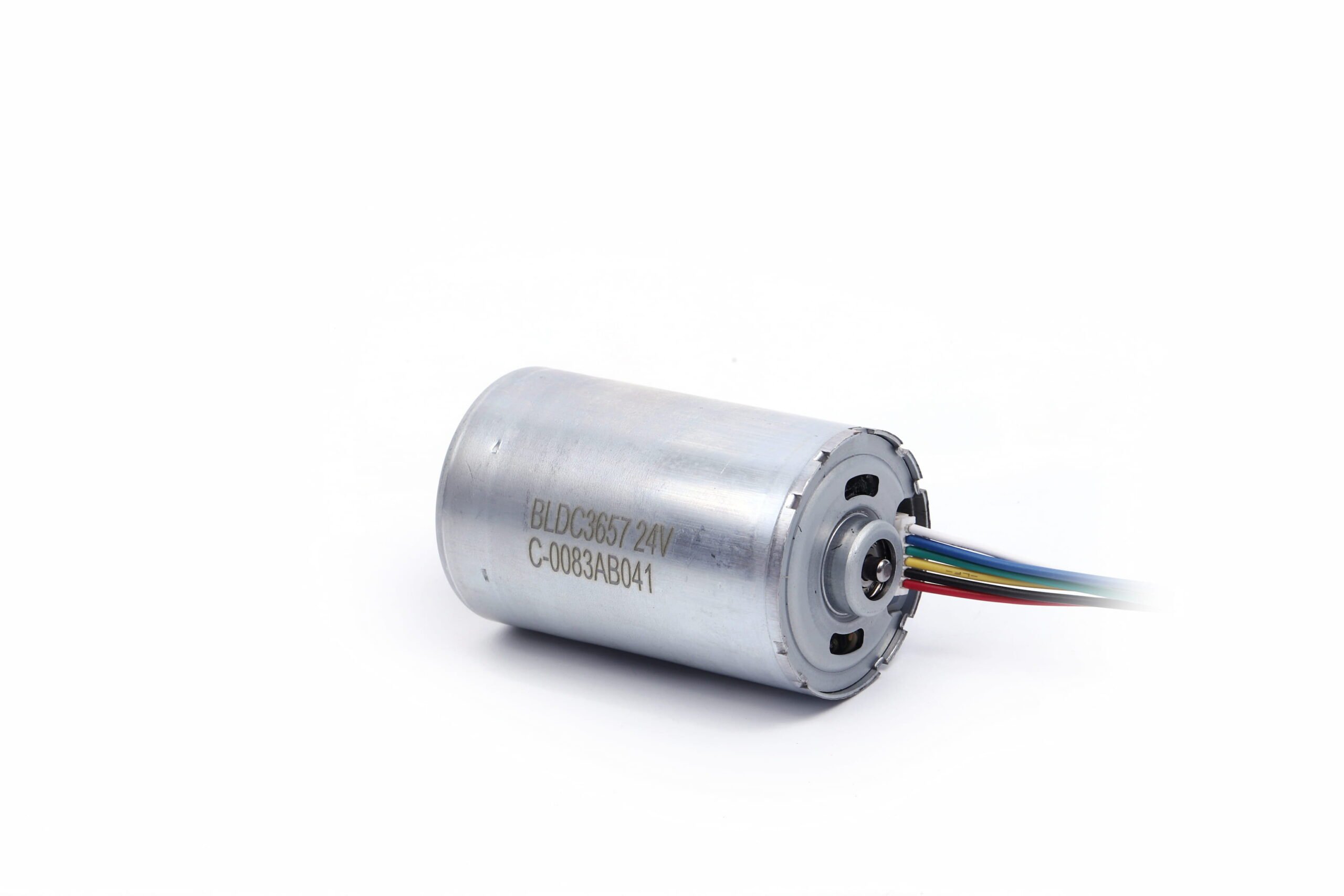

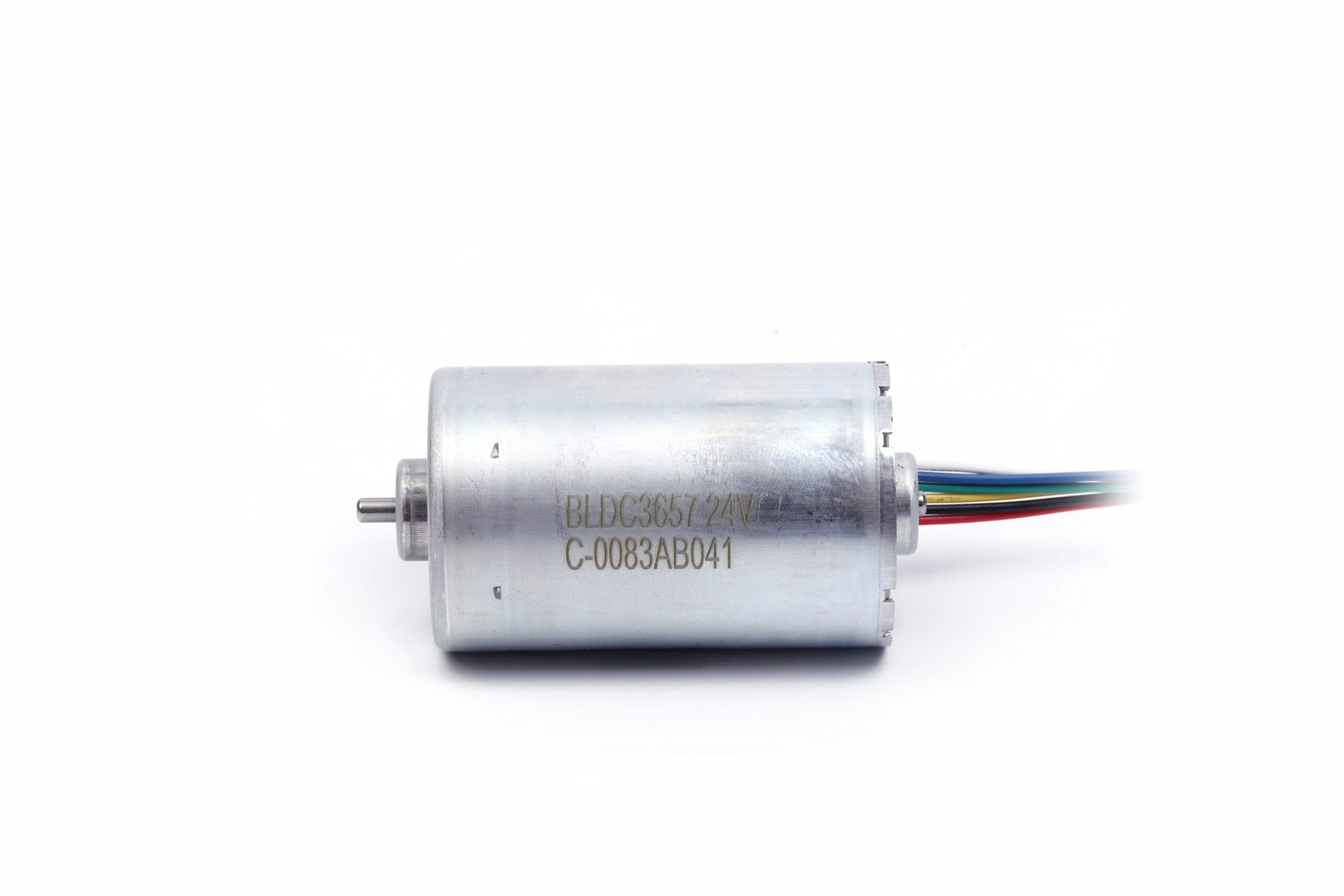

36mm BLDC Motor

Key Features

  • Size:36 mm
  • Length:57 mm
  • Rated Voltage:3V-24 V
  • Rated Speed:2500 rpm – 28000 rpm
Advantages
  • Higher Efficiency Choise
  • Long Working Life
  • Powerful Output
  • Precision Control and Fast Response
  • Low Noise
  • Customized Option

Product Details

ModelVoltageRated RpmRated CurrentRated TorquePowerStall TorqueEFF
BL3657-12270012V24080.64A217.6g-cm5.38W1662.2g-cm74%
BL3657024900024V77862.16A458.9g-cm 36.69W2952.1g-cm76%

Dimensional Drawing
