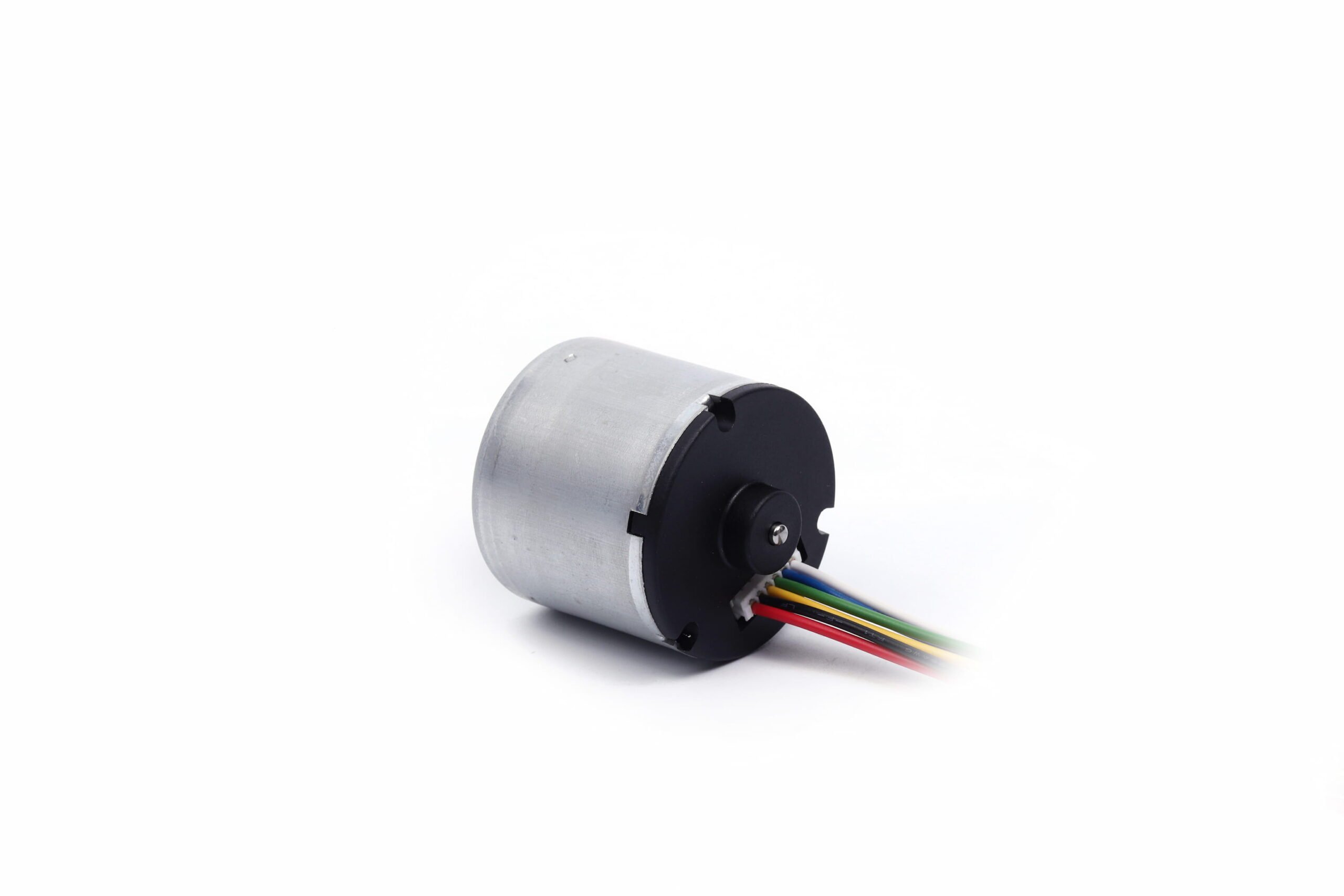

BLDC Motor
BL3229
32mm BLDC Motor
Key Features
- Size:32 mm
- Length:29 mm
- Rated Voltage:3V-24 V
- Rated Speed:3000 rpm – 22000 rpm
Advantages
- Higher Efficiency Choise
- Long Working Life
- Powerful Output
- Precision Control and Fast Response
- Low Noise
- Customized Option
Product Details
Model | Voltage | Rated Rpm | Rated Current | Rated Torque | Power | Stall Torque | Effiency |
---|---|---|---|---|---|---|---|
BL3229-124000 | 12V | 3053 | 0.36A | 89.96g-cm | 2.82W | 409.56g-cm | 66% |
BL3229-1210200 | 12V | 9107 | 1.03A | 98.17g-cm | 9.18W | 916.81g-cm | 76% |
BL3229-244000 | 24V | 3126 | 0.17A | 66.04g-cm | 2.12W | 290.3g-cm | 56% |
BL3229-246000 | 24V | 4864 | 0.39A | 90.42g-cm | 4.52W | 499.32g-cm | 65% |
Dimensional Drawing
