DC Motor
DC-555

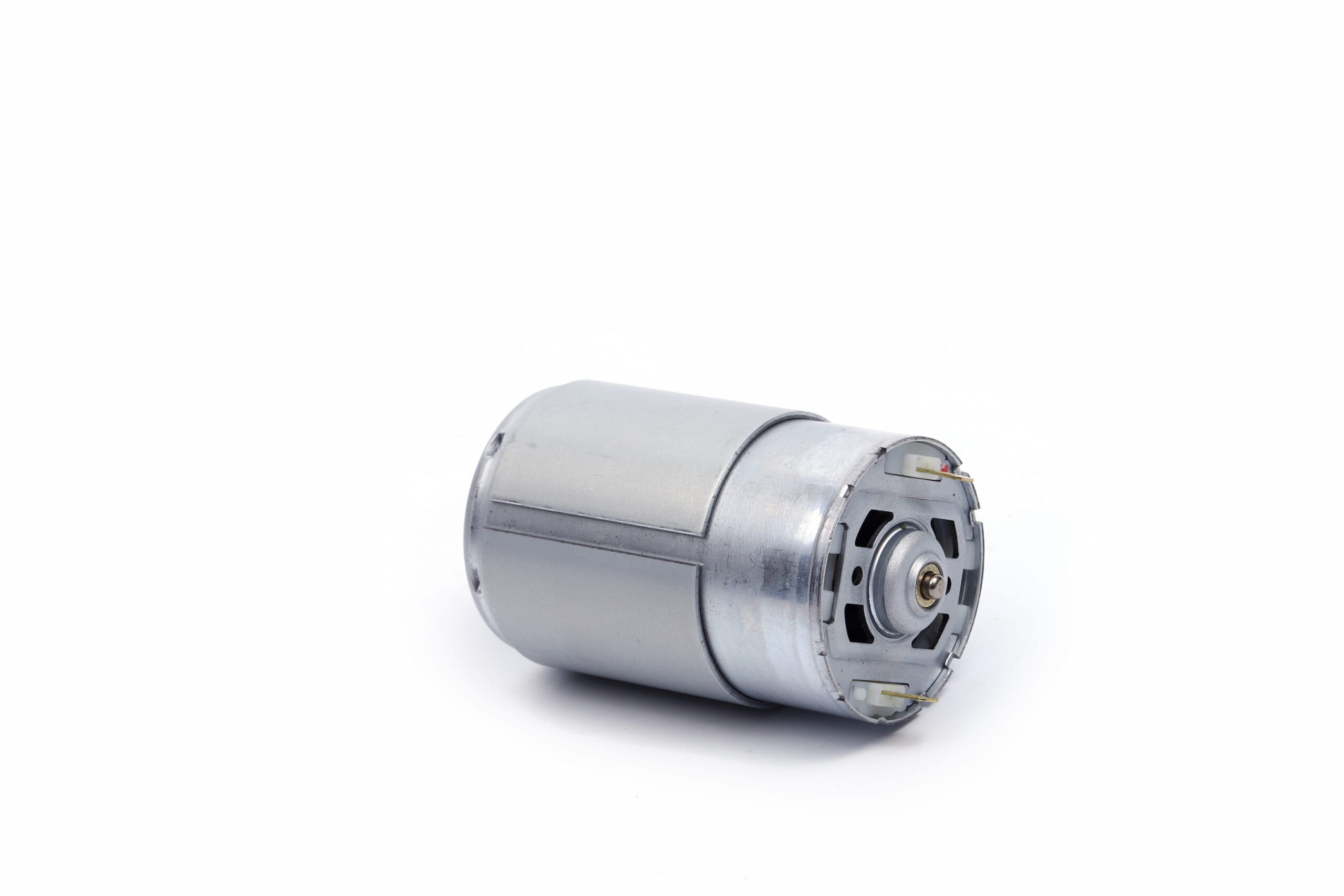

555 DC Brush Motor
Key Features
- Size:36 mm
- Length:0-150W
- Rated Voltage:12V-24V
- Rated Speed:3000 rpm – 12000 rpm
Advantages
- High dynamic performance brush DC motor
- High performance rubidium iron-boron magnet
- Operating temperature range from -30° to 100°
- Precision bearing options
- Pure graphite carbon brush
- Low noise
Product Details
Model | Voltage | Rated Rpm | Rated Current | Rated Torque | Power | Stall Torque | Efficiency |
---|---|---|---|---|---|---|---|
555-123000 | 12V | 2446 | 0.51A | 160g-cm | 4.01W | 929g-cm | 65% |
555-244600 | 24V | 3897 | 0.91A | 358g-cm | 14.3W | 2314g-cm | 69% |
555-128400 | 12V | 6262 | 4.28A | 434g-cm | 27.9W | 2002g-cm | 55% |
555-246600 | 24V | 5790 | 0.83A | 242g-cm | 14.3W | 1927g-cm | 73% |
Dimensional Drawing
