Planetary Gear Motor

High efficiency Planetary Gear motor from SGMADA

SGMADA provide high quality 16mm – 56mm Pleantary Gear Motor. We provide 12V-24V DC MOTOR, BLDC Motor and Stepper motor. Thousands of gear ratios and customized services.

planetary gear motor collection 1
Our Advantages

How Can We Help?

Custom Assemblies
Longevity Testing
Mechanism Design
Engineering Confidence
In-House Production
Full Testing Validation

What is a planetary gear motor?

planetary gear motor composed planetary gearbox and motor part. It is a high effiency gear motor based on the principle of planetary transmission.

  • Motor Part:
    DC motors, stepper motors, or brushless DC motors as power input.
  • Gear Part:
    It includes the sun gear, planetary gears, ring gear, and planet carrier, which achieve speed reduction through the planetary transimission principle.



Core advantages of planetary gear motor

Linear gear structure

High efficiency transmission

High load capacity

Small Size

Low Noise







Planetary Gear Motor Diagram

Customized Planetary Gear Motor Options

  • Output shaft
  • Ring Gear
  • Planetary Gear
  • Sun Gear
  • Motor
  • Encoder
Planetary Gear Motor

Our Products

16mm planetary gear motor

PG16-050

  • Size:16 mm
  • Rated Power:0-3.2W
  • Rated Voltage:3V-24V
  • Rated Speed:3-2080rpm
Product Details
22mm planetary gear motor

PG22-180

  • Size:22 mm
  • Rated Power:0-10W
  • Rated Voltage:12V-24 V
  • Rated Speed:3-1520rpm
Product Details
28mm planetary gear motor

PG28-395

  • Size:28 mm
  • Rated Power:0-30W
  • Rated Voltage:12V-24V
  • Rated Speed:3-1500rpm
Product Details
32mm planetary gear motor

PG32-GR

  • Size:32 mm
  • Rated Power:0-36W
  • Rated Voltage:12V-24 V
  • Rated Speed:3-1500rpm
Product Details
36mm planetary gear motor

PG36-555

  • Size:36 mm
  • Rated Power:0-90W
  • Rated Voltage:12V-36V
  • Rated Speed:5 rpm – 2600rpm
Product Details
42mm planetary gear motor

PG42-775

  • Size:42 mm
  • Rated Power:0-180W
  • Rated Voltage:12V-48V
  • Rated Speed:5 rpm – 2900 rpm
Product Details
45mm planetary gear motor

PG45-775

  • Size:45 mm
  • Rated Power:Customized
  • Rated Voltage:12V-24 V
  • Rated Speed:5 rpm – 800 rpm
Product Details

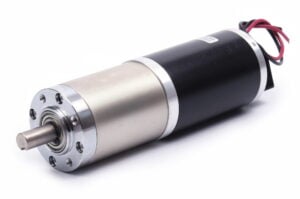

52mm planetary gear motor

PG52-997

  • Size:52 mm
  • Rated Power:0-250W
  • Rated Voltage:12V-24V
  • Rated Speed:3-2500rpm
Product Details
56mm planetary gear motor

PG56-ZY58

  • Size:56 mm
  • Rated Power:0-250W
  • Rated Voltage:12V-48V
  • Rated Speed:0-1360rpm
Product Details
Contact us

Request a Quote

You need our support. We’re here to help.

Motor products are difficult to understand, specify, validate and integrate into end application. The industry has no standards and suppliers typically offer only fragments of advice.

We know what you don’t and can mitigate your motor design, manufacturing and supply risks.

Get in touch with our team today.

Why Choose Us

Where We Add Value

Customized Design

Motor and gearbox desgin based on your requirements

SGMADA focused on designing motor and gearbox more than 20 years.

We are committed to designing products that are more efficient, more cost-effective and of more stable quality.

Our ultimate goal in designing is to serve our customers.

  • Reduce costs and increase efficiency
  • Reasonable structural design
  • Quick response
Strong Pruduction

Improvement of automation equipment

SGMADA believes that automated equipment will bring about a huge leap in production capacity.

We insist on investing 20%-30% of our annual profits in automation equipment.

Automation equipment can not only improve the production efficiency of products, but also reduce the production cost of motors and gearboxes.

Quality Control

ISO9001 & TS16949 strict quality management system

SGMADA has established a complete quality management system to ensure that product quality continues to meet standards.

Our quality management system follows the basic principles of IATF 16949 & ISO 9001.

  • Implement strict control requirements for important and special characteristics of product
  • Input customer demand, output customer satisfaction
  • Focus on defect prevention
  • Focus on process control
Reliable Team

A trustworthy team means Quality

Our company culture builds a trustworthy team.

Focus on the cultivation of team values ​​- integrity, responsibility and professionalism.

Team communication and collaboration – We encourage open communication so that everyone’s ideas and opinions can be heard.

Learning and improvement – We encourage team members to continue learning and constantly improve their professional skills.

Positive atmosphere – We believe that only a united, trustful and positive team can consistently pursue excellent product quality.



Planetary Gear Motor

Frequently Asked Questions

1. What is a planetary gearbox?

The planetary gear reduction structure consists of a central sun gear, multiple planetary gears, and a ring gear.

2. Advantages of the planetary gear  structure?

High space utilization and high gear efficiency. Strong load capacity.

3. How to calculate the efficiency of the planetary gear reduction structure?

The efficiency of each stage of the planetary reduction structure is 90%

ηtotal = ηsingle^n = 0.90^3 = 0.729
Where, ηtotal is the total efficiency, ηsingle is the single-stage efficiency, and n is the number of stages.

4. What kind of material is generally used for the gears of planetary gearboxes?

SGMADA’s planetary gears are generally made of powder metallurgy materials. Plastic and hobbing gears can be selected.

5. What type of motor can be used with planetary gear motors?

DC Motor, BLDC Motor, Stepper Motor, etc.
