English DC Gear Motor
Flexible size options - High Accuracy DC Geared Motor from SGMADA
Producing and developing high-Quality micro DC Geared motors is our mission. SGMADA offers hundreds of micro gearbox standard parts including square gearboxes and round gearboxes. In combination with our high-quality DC motors, brushless DC motors, and outrunner motors, we provide more flexible driving solutions for our customers’ applications.
How Can We Help?
What is a Geared Motor ?
A gear motor is a mechanical component that combines a gearbox with an electric motor. The electric motor converts externally input electrical energy into kinetic energy. This kinetic energy is then regulated by an internal gear reduction mechanism within the gearbox, reducing the motor’s output speed while increasing its torque.
Types of Geared Motor
Based on the gearbox design, we can broadly categorize our DC geared motors into the following two types:
- Square DC Geared Motor

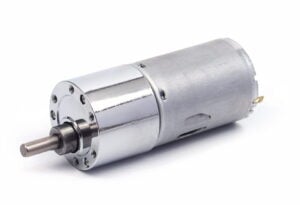

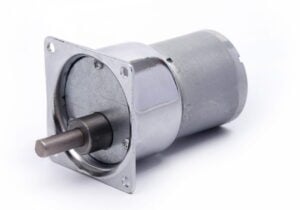

- Round DC Geared Motor
Core advantages of dc gear motor
▨ Flexible Dimensions
▨ Stable quality
▨ Thousands Gear ratios
▨ High Torque
Customized DC Gear Motor Options
- Metal Shaft
- Shell
- Gearbox Series
- Gears
- Encoder
- Motor
Our Products
AF-Series
- Size:41 mm* 71.5 mm
- Rated Power:0-30W
- Rated Voltage:12V-24 V
- Rated Speed:5 rpm – 2800 rpm

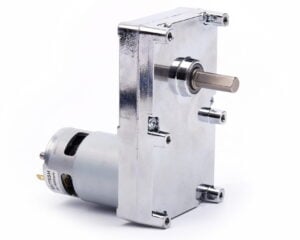

GF-Series
- Size:63.5*90.2*16mm
- Rated Power:0-200W
- Rated Voltage:12V-24V
- Rated Speed:1 rpm – 1800 rpm
ST- Series
- Size:63.5*90.2*16 mm
- Rated Power:up to 99W
- Rated Voltage:12V-24 V
- Rated Speed:1 rpm – 360 rpm
TT-Series
- Size:40*60 mm
- Rated Power:0-150W
- Rated Voltage:12V-36V
- Rated Speed:5 rpm – 1500rpm

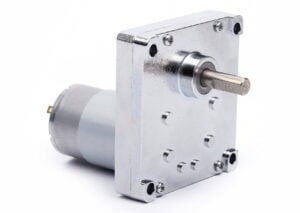

VF Series
- Size:70*80*16.5 mm
- Rated Power:0-150W
- Rated Voltage:12V-24 V
- Rated Speed:5 rpm – 1800 rpm

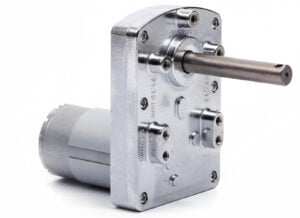

ZF-Series
- Size:63.5*90.2*16 mm
- Rated Power:up to 99W
- Rated Voltage:12V-24 V
- Rated Speed:1 rpm – 360 rpm
Request a Quote
You need our support. We’re here to help.
Motor products are difficult to understand, specify, validate and integrate into end application. The industry has no standards and suppliers typically offer only fragments of advice.
We know what you don’t and can mitigate your motor design, manufacturing and supply risks.
Get in touch with our team today.
Where We Add Value
Motor and gearbox desgin based on your requirements
SGMADA focused on designing motor and gearbox more than 20 years.
We are committed to designing products that are more efficient, more cost-effective and of more stable quality.
Our ultimate goal in designing is to serve our customers.
- Reduce costs and increase efficiency
- Reasonable structural design
- Quick response
Improvement of automation equipment
SGMADA believes that automated equipment will bring about a huge leap in production capacity.
We insist on investing 20%-30% of our annual profits in automation equipment.
Automation equipment can not only improve the production efficiency of products, but also reduce the production cost of motors and gearboxes.
ISO9001 & TS16949 strict quality management system
SGMADA has established a complete quality management system to ensure that product quality continues to meet standards.
Our quality management system follows the basic principles of IATF 16949 & ISO 9001.
- Implement strict control requirements for important and special characteristics of product
- Input customer demand, output customer satisfaction
- Focus on defect prevention
- Focus on process control
A trustworthy team means Quality
Our company culture builds a trustworthy team.
Focus on the cultivation of team values - integrity, responsibility and professionalism.
Team communication and collaboration – We encourage open communication so that everyone’s ideas and opinions can be heard.
Learning and improvement – We encourage team members to continue learning and constantly improve their professional skills.
Positive atmosphere – We believe that only a united, trustful and positive team can consistently pursue excellent product quality.
Frequently Asked Questions
Q: How to calculate the output torque of a geared motor?
A: Determine the motor’s output power and speed, then use the formula to calculate the motor’s output torque:
𝑇motor = 𝑃motor × 60 / (2𝜋 × 𝑁motor). Determine the gear ratio and then use the formula to calculate the geared motor’s output torque:
𝑇output = 𝑇motor × 𝑖.
Q: How to calculate the output speed of a geared motor?
A: Determine the motor’s original speed and the gear ratio, then use the formula to calculate the geared motor’s output speed:
𝑁output = 𝑁motor / 𝑖.
Q: What is the typical lifespan of SGMADA geared motors?
A: SGMADA offers micro DC geared motors with lifespans ranging from a few hundred to several thousand hours.
Q: How to calculate the efficiency of a gearbox?
A: Gearbox efficiency can be calculated by the ratio of output power to input power using the formula:
Efficiency = (𝑃output / 𝑃input) × 100%. Efficiency is typically affected by gearbox design, lubrication, and load conditions.
Q: Does SGMADA offer customized DC geared motor services?
A: Yes, SGMADA offers customized DC geared motor services to meet specific customer requirements and applications.
