Planetary Gearboxes

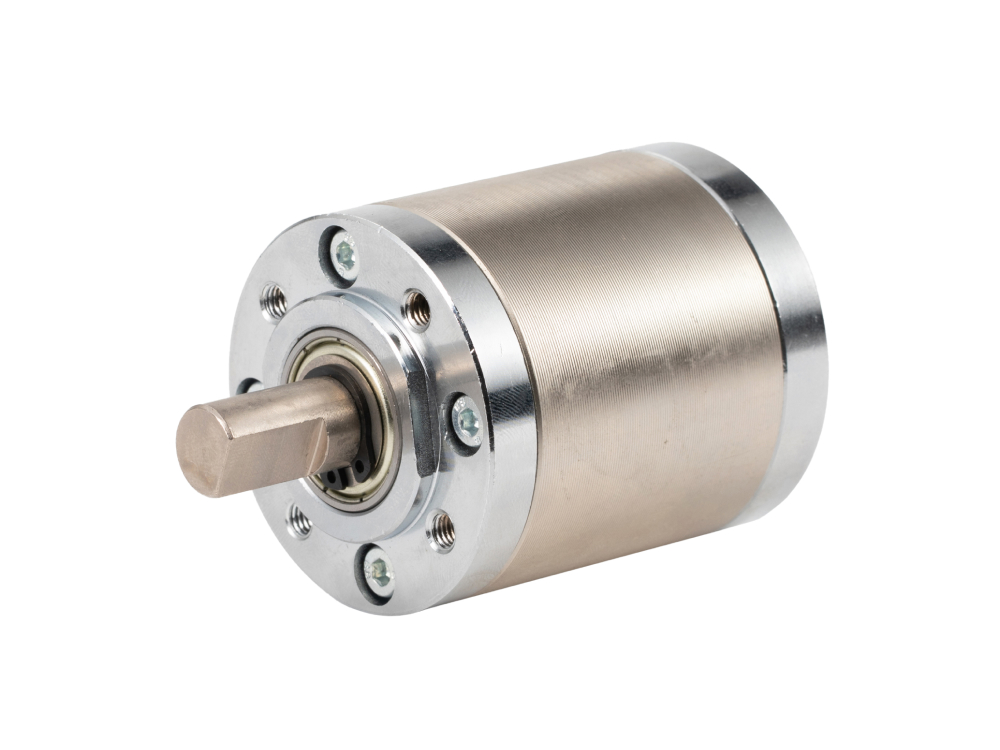

PG56 Planetary Gearbox
$34.99 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
14 options
Compatible
1 product

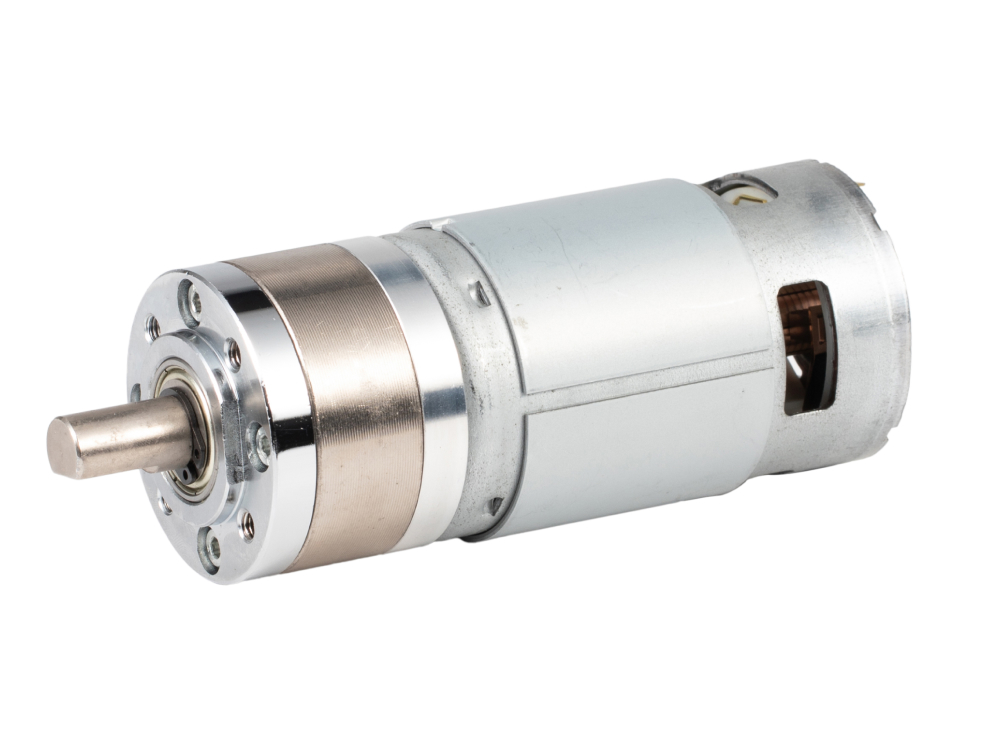

PG56-DC997
PG56997 Planetary Gear Motor
2 components · 56 combinations
- Number Of Gear Stages:
- 1 - 5
- Gear Ratio:
- 3.7 - 1,896 :1
- Gearbox Length:
- 37.5 - 100.9 mm
- Max Continuous Torque:
- 100 - 400 gf·cm
- Breaking Torque:
- 300 - 1,200 gf·cm
Specifications Toggle Specifications
| Gearbox Type | Planetary Gear Motor |
|---|---|
| Gearbox Model | PG56-3.7K / PG56-5.1K / PG56-19K / PG56-27K / PG56-71K / PG56-99K / PG56-138K / PG56-262K / PG56-366K / PG56-512K / PG56-716K / PG56-970K / PG56-1356K / PG56-1896K |
| Gear Ratio | 3.7 - 1,896 :1 |
| Number Of Gear Stages | 1 - 5 |
| Gearbox Diameter | 56 mm |
| Gearbox Length | 37.5 - 100.9 mm |
| Max Continuous Torque | 100 - 400 gf·cm |
| Breaking Torque | 300 - 1,200 gf·cm |
| Gearbox Efficiency | 50 - 90 % |
| Gearbox Weight | 431 - 1,226 g |
| Shaft Diameter | 12 mm |
| Pinion Hole Diameter | 5.97 / 7.96 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Powder Metallurgy (Fe) |
| Gear Material | Powder Metallurgy (Fe) / Plastics |
| Gear Design | Helical Gear |
| Output Shaft Bearing | Ball Bearing |
| Lubricant In Gearbox | Graphene oil |
| Axial Play | ≤ 0.2 mm |
| Radial Play | ≤ 0.1 mm |
| Backlash | ≤ 1.5 ° |
| Gear Module | 0.8 M |
