Planetary Gear Motors
PG56997 Planetary Gear Motor
$49.98 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Motors
4 options

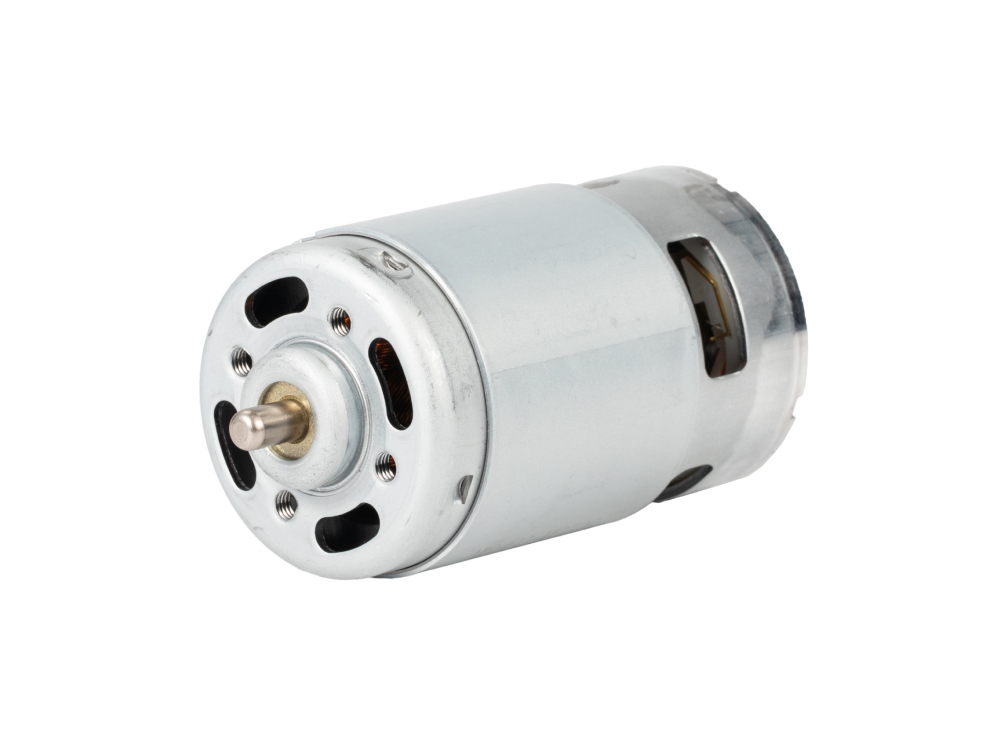

99712450
DC997 12V 4500 RPM
Gearboxes
14 options
PG563700
PG56 3.7:1
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 4,180 - 5,400 rpm
- Rated Torque:
- 1,168 - 1,699 gf·cm
- Stall Torque:
- 11,500 - 13,100 gf·cm
- Rated Power:
- 48.8 - 86 W
Specifications Toggle Specifications
| Product Model | PG56997124500-3.7K |
|---|---|
| Gearbox Weight | 1,106 g |
| Rated Voltage | 12 V |
| No Load Speed | 1216.22 rpm |
| Rated Speed | 1130 rpm |
| No Load Current | 1,350 mA |
| Rated Current | 5,400 mA |
| Stall Current | 48,100 mA |
| Rated Torque | 3889 gf·cm |
| Stall Torque | 38,295 gf·cm |
| Rated Power | 45.13 W |
| Max Efficiency | 64.800 % |
| Motor Diameter | 56 mm |
| Gearbox Length | 122.5 mm |
| Gear Ratio | 3.7 :1 |
| Number Of Gear Stages | 1 |
| Max Continuous Torque | 100 kgf·cm |
| Instantaneous Break Torque | 300 kgf·cm |
| Operating Temperature Range | -30 ~ 65 C |
| Working Lifespan | 1,000 hours |
