DC Motors
DC775 Brushed DC Motor
$5.49 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
6 options
Compatible
7 products

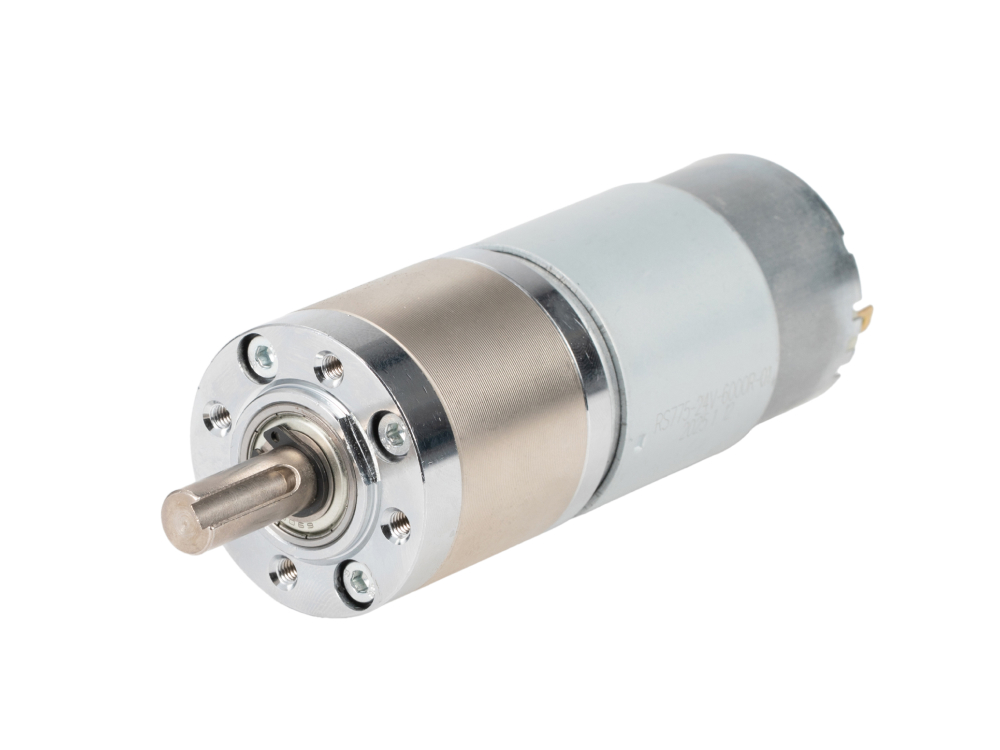

PG42-DC775
PG42775 Planetary Gear Motor
2 components · 78 combinations
RG50-DC775
RG50775 DC Gearmotors - Round
2 components · 60 combinations
TT-DC775
TT775 DC Gearmotors - Flat
2 components · 66 combinations
MG-DC775
MG775 DC Gearmotors - Flat
2 components · 78 combinations
VF-DC775
VF775 DC Gearmotors - Flat
2 components · 66 combinations
GF-DC775
GF775 DC Gearmotors - Flat
2 components · 66 combinations
TA-DC775
TA775 DC Gearmotors - Flat
2 components · 36 combinations
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 2,450 - 5,233 rpm
- Rated Torque:
- 350 - 574 gf·cm
- Stall Torque:
- 2,280 - 4,565 gf·cm
- Rated Power:
- 8.5 - 30 W
Specifications Toggle Specifications
| Motor Model | DC775-123000 / DC755-124500 / DC775-126000 / DC775-243000 / DC775-244500 / DC775-246000 |
|---|---|
| Motor Type | Brushed DC Motor |
| Rated Voltage | 12 - 24 V |
| No Load Speed | 3,000 - 6,000 rpm |
| Rated Speed | 2,450 - 5,233 rpm |
| No Load Current | 230 - 1,400 mA |
| Rated Current | 700 - 3,500 mA |
| Stall Current | 3,880 - 18,400 mA |
| Rated Torque | 350 - 574 gf·cm |
| Stall Torque | 2,280 - 4,565 gf·cm |
| Rated Power | 9 - 30 W |
| Max Efficiency | 72.000 % |
| Motor Diameter | 45 mm |
| Motor Length | 66 mm |
| Motor Weight | 347 g |
| Shaft Diameter | 5 mm |
| Shaft Configuration | Single/Dual |
| Connector | 2 |
| Working Lifespan | 800 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Noise Level At 30 cm | 53 dB |
| Noise Level At 50 cm | 51 dB |
| Housing Material | Electrolytic zinc coated steel |
| Direction Of Rotation | CW/CCW |
| Enameled Wire Material | Enameled copper wire |
| Magnet Material | Ferrite |
| Carbon Brush Material | Metal graphite brush |
| Insulation Class | UEW |
| Number Of Pole Pairs | 2 |
| Gearbox | PG45/RG50/TT/GF/TA |
