DC Gearmotors - Flat
TT775 DC Gearmotors - Flat
$18.48 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Motors
6 options

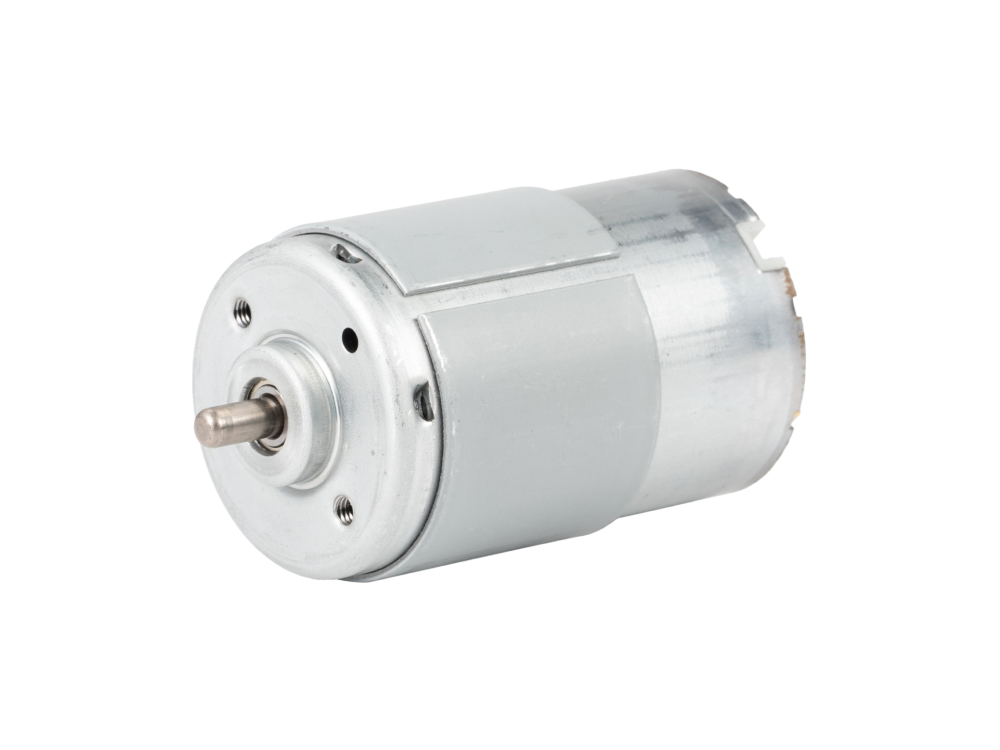

77512300
DC775 12V 3000 RPM
Gearboxes
11 options
TT3600
TT 36:1
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 2,450 - 5,233 rpm
- Rated Torque:
- 350 - 574 gf·cm
- Stall Torque:
- 2,280 - 4,565 gf·cm
- Rated Power:
- 8.5 - 30 W
Specifications Toggle Specifications
| Product Model | TT775123000- |
|---|---|
| Gearbox Weight | 668 g |
| Rated Voltage | 12 V |
| No Load Speed | 83.333333 rpm |
| Rated Speed | 68 rpm |
| No Load Current | 420 mA |
| Rated Current | 1,200 mA |
| Stall Current | 6,000 mA |
| Rated Torque | 9,198 gf·cm |
| Stall Torque | 59918.4 gf·cm |
| Rated Power | 6426.85 W |
| Max Efficiency | 52.560 % |
| Gearbox Length | 161 mm |
| Gear Ratio | 36 :1 |
| Number Of Gear Stages | 3 |
| Max Continuous Torque | 3 kgf·cm |
| Instantaneous Break Torque | 9 kgf·cm |
| Backlash | 3 ° |
| Operating Temperature Range | -30 ~ 65 C |
| Working Lifespan | 800 hours |
| Noise Level @ 30cm | 53 |
Discuss Your Application with Our Engineers
Share your target speed, torque, voltage, duty cycle, control requirements, and installation envelope. Our engineering team will help you evaluate the right motor, gearbox, or integrated drive solution.
