DC Motors

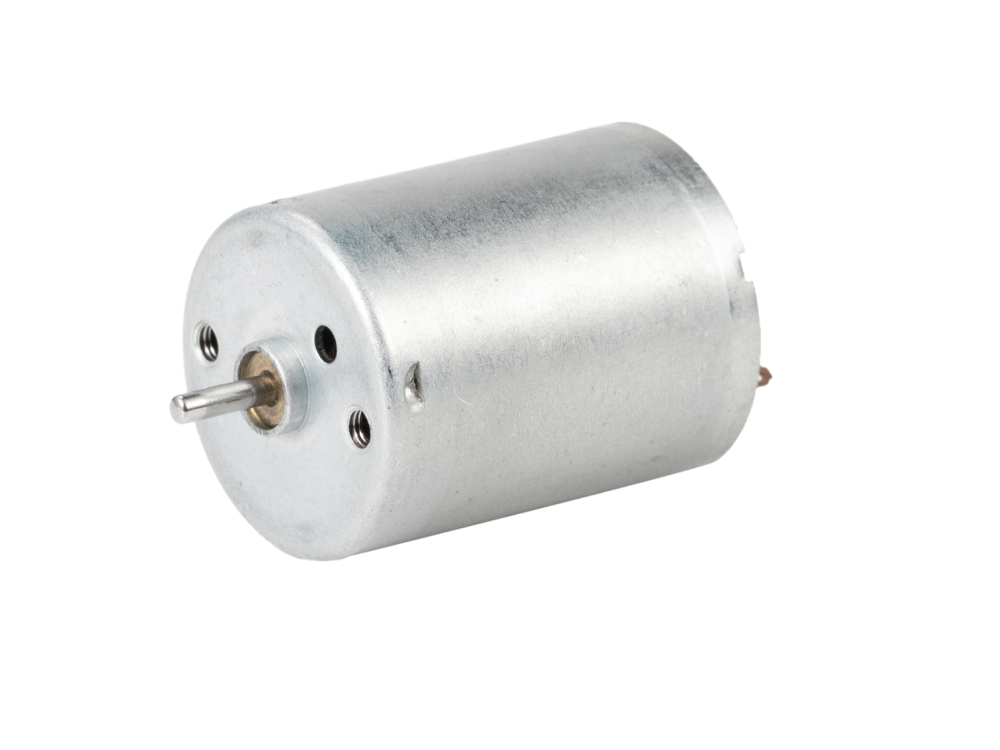

DC370 Brushed DC Motor
$1.99 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
4 options
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 3,900 - 5,550 rpm
- Rated Torque:
- 20 - 30 gf·cm
- Stall Torque:
- 75 - 180 gf·cm
- Rated Power:
- 0.86 - 1.6 W
Specifications Toggle Specifications
| Motor Model | DC370-124500 / DC370-126000 / DC370-244500 / DC370-246000 |
|---|---|
| Motor Type | Brushed DC Motor |
| Rated Voltage | 12 - 24 V |
| No Load Speed | 4,500 - 6,000 rpm |
| Rated Speed | 3,900 - 5,550 rpm |
| No Load Current | 15 - 40 mA |
| Rated Current | 60 - 260 mA |
| Stall Current | 360 - 1,500 mA |
| Rated Torque | 20 - 30 gf·cm |
| Stall Torque | 75 - 180 gf·cm |
| Rated Power | 1 - 2 W |
| Max Efficiency | 75.000 % |
| Motor Diameter | 24.4 mm |
| Motor Length | 30.8 mm |
| Motor Weight | 49 g |
| Shaft Diameter | 2 mm |
| Shaft Configuration | Single/Dual |
| Connector | 2 |
| Working Lifespan | 300 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Housing Material | Electrolytic zinc coated steel |
| Direction Of Rotation | CW/CCW |
| Enameled Wire Material | Enameled copper wire |
| Magnet Material | Ferrite |
| Carbon Brush Material | Metal graphite brush |
| Insulation Class | UEW |
| Number Of Pole Pairs | 2 |
| Gearbox | PG25/SG25/WGM370 |
