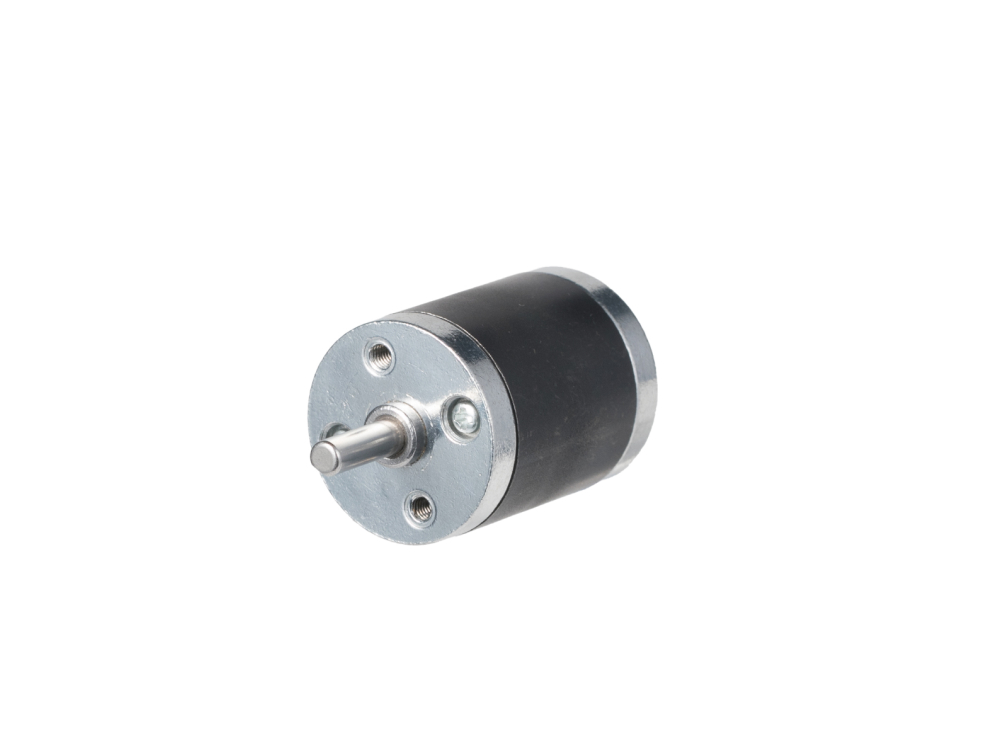

DC Gearmotors - Round
SR25370 DC Gearmotors - Round
$6.98 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Motors
4 options
37012450
DC370 12V 4500 RPM
Gearboxes
12 options
SR2580000
SR25 8:1
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 3,900 - 5,550 rpm
- Rated Torque:
- 20 - 30 gf·cm
- Stall Torque:
- 75 - 180 gf·cm
- Rated Power:
- 0.86 - 1.6 W
Specifications Toggle Specifications
| Product Model | SR25370124500- |
|---|---|
| Gearbox Weight | 82 g |
| Rated Voltage | 12 V |
| No Load Speed | 562.5 rpm |
| Rated Speed | 488 rpm |
| No Load Current | 33 mA |
| Rated Current | 160 mA |
| Stall Current | 1,000 mA |
| Rated Torque | 194 gf·cm |
| Stall Torque | 1036.8 gf·cm |
| Rated Power | 1 W |
| Max Efficiency | 60.750 % |
| Motor Diameter | 25 mm |
| Gearbox Length | 54.3 mm |
| Gear Ratio | 8 :1 |
| Number Of Gear Stages | 3 |
| Max Continuous Torque | 0.3 gf·cm |
| Instantaneous Break Torque | 0.9 gf·cm |
| Backlash | 2 ° |
| Operating Temperature Range | -30 ~ 65 C |
| Working Lifespan | 300 hours |
