Spur Gearboxes - Flat

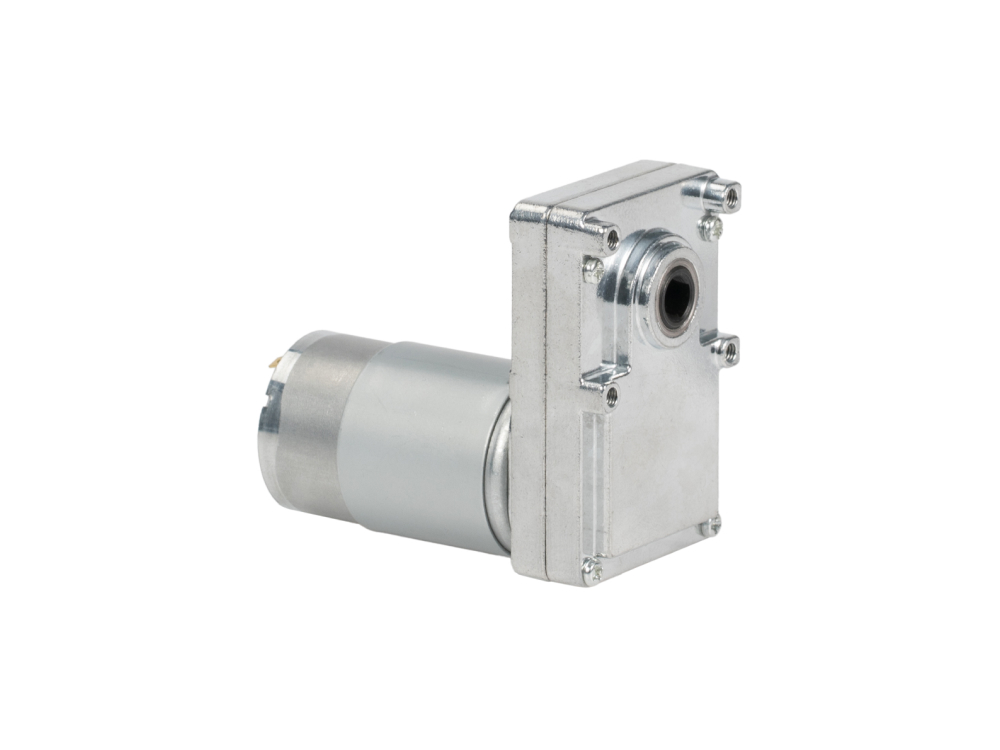

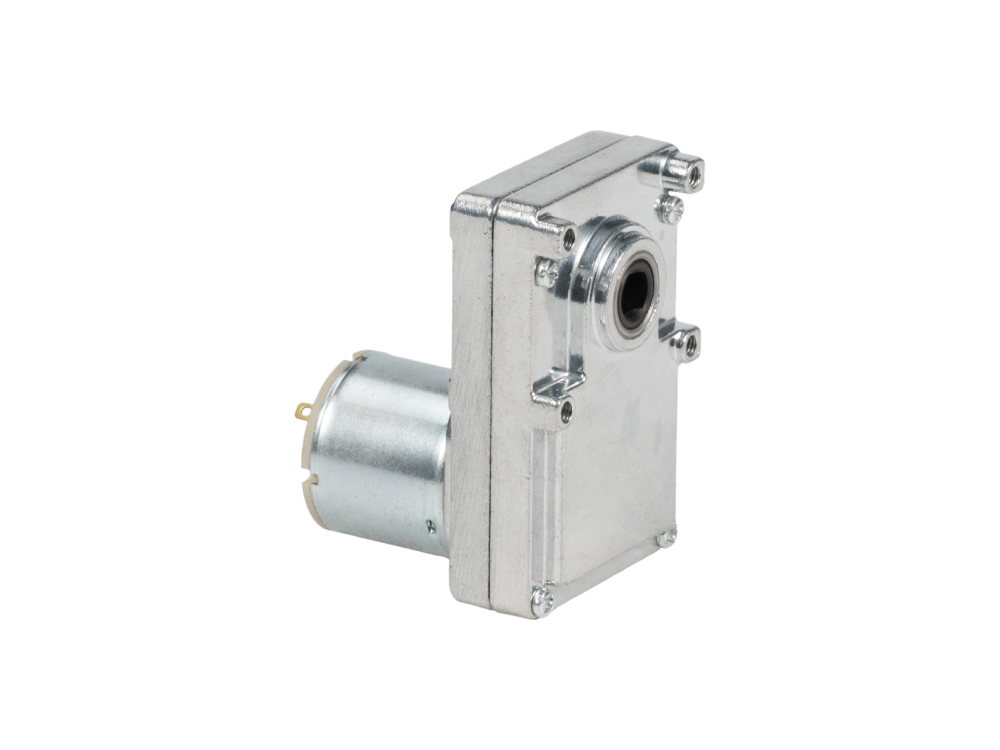

AF Spur Gearbox - Flat
$8.99 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
8 options
- Number Of Gear Stages:
- 3 - 6
- Gear Ratio:
- 13.6 - 529 :1
- Gearbox Height:
- 21 mm
- Max Continuous Torque:
- 3 - 10 gf·cm
- Breaking Torque:
- 9 - 30 gf·cm
Specifications Toggle Specifications
| Gearbox Type | Spur Gearbox - Flat |
|---|---|
| Gearbox Model | AF |
| Gear Ratio | 13.6 - 529 :1 |
| Number Of Gear Stages | 3 - 6 |
| Gearbox Length | 73 mm |
| Gearbox Width | 47 mm |
| Gearbox Height | 21 mm |
| Max Continuous Torque | 3 - 10 gf·cm |
| Breaking Torque | 9 - 30 gf·cm |
| Gearbox Efficiency | 59 - 81 % |
| Gearbox Weight | 231 - 239 g |
| Shaft Diameter | 8 mm |
| Pinion Hole Diameter | φ 2 / φ 3.17 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Zinc Alloy （Die casting） |
| Gear Material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear Design | Helical Gear / Spur Gear |
| Output Shaft Bearing | Sleeve Bearing |
| Lubricant In Gearbox | FUMIO |
| Axial Play | 0.35 mm |
| Radial Play | 0.1 mm |
| Backlash | 3 ° |
| Gear Module | 0.5 / 0.6 / 0.8 M |
