DC Gearmotors - Flat

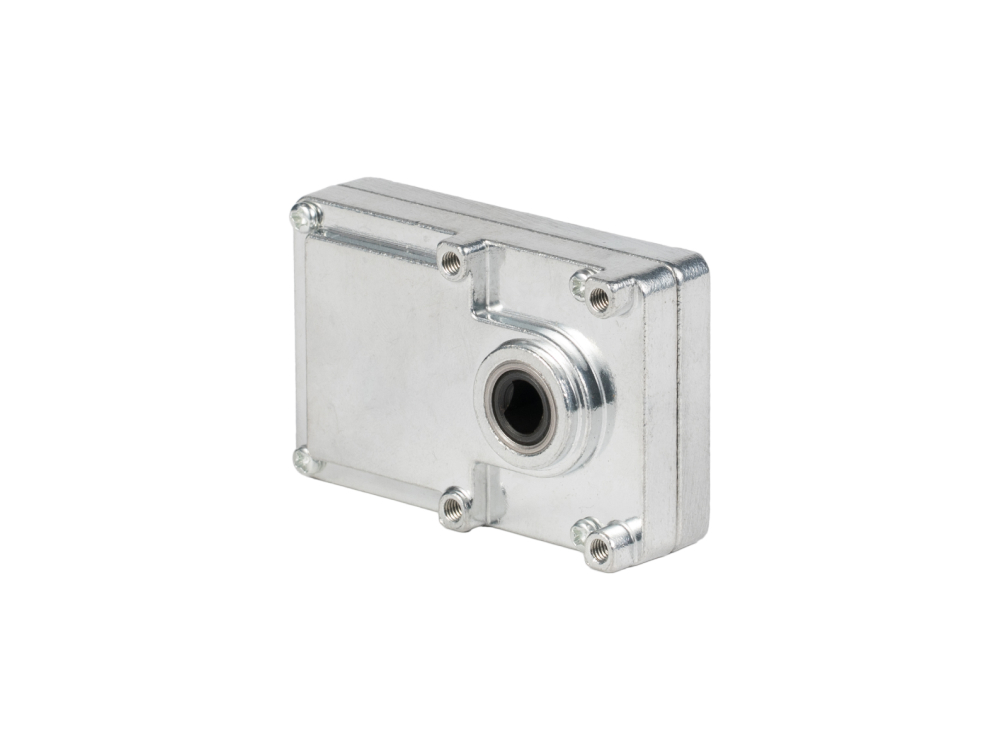

AF528 DC Gearmotors - Flat
$12.48 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Motors
4 options
52812450
DC528 12V 4500 RPM
Gearboxes
8 options
AF1360
AF 13.6:1
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 3,680 - 6,000 rpm
- Rated Torque:
- 44 - 80 gf·cm
- Stall Torque:
- 281 - 472 gf·cm
- Rated Power:
- 1.75 - 4.6 W
Specifications Toggle Specifications
| Product Model | AF528124500- |
|---|---|
| Gearbox Weight | 302 g |
| Rated Voltage | 12 V |
| No Load Speed | 330.882353 rpm |
| Rated Speed | 285 rpm |
| No Load Current | 80 mA |
| Rated Current | 230 mA |
| Stall Current | 1,360 mA |
| Rated Torque | 485 gf·cm |
| Stall Torque | 3613.248 gf·cm |
| Rated Power | 1416 W |
| Max Efficiency | 58.320 % |
| Gearbox Length | 102.1 mm |
| Gear Ratio | 13.6 :1 |
| Number Of Gear Stages | 3 |
| Max Continuous Torque | 3 gf·cm |
| Instantaneous Break Torque | 9 gf·cm |
| Backlash | 3 ° |
| Operating Temperature Range | -30 ~ 65 C |
| Working Lifespan | 300 hours |
