Spur Gearboxes - Flat

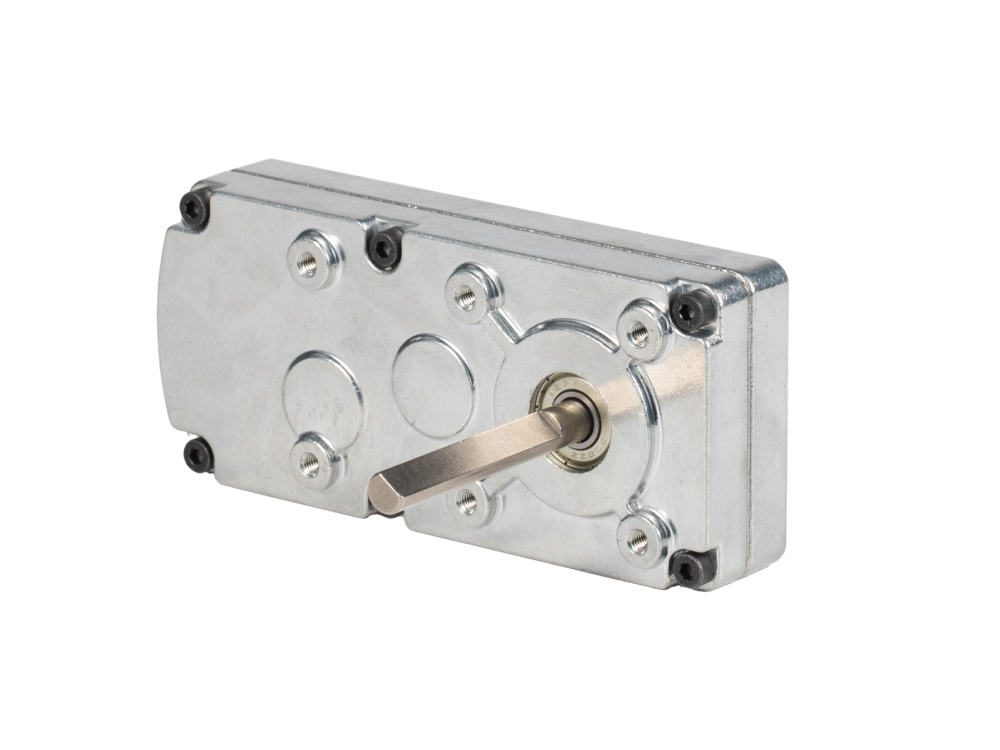

TA Spur Gearbox - Flat
$19.99 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
6 options
Compatible
1 product

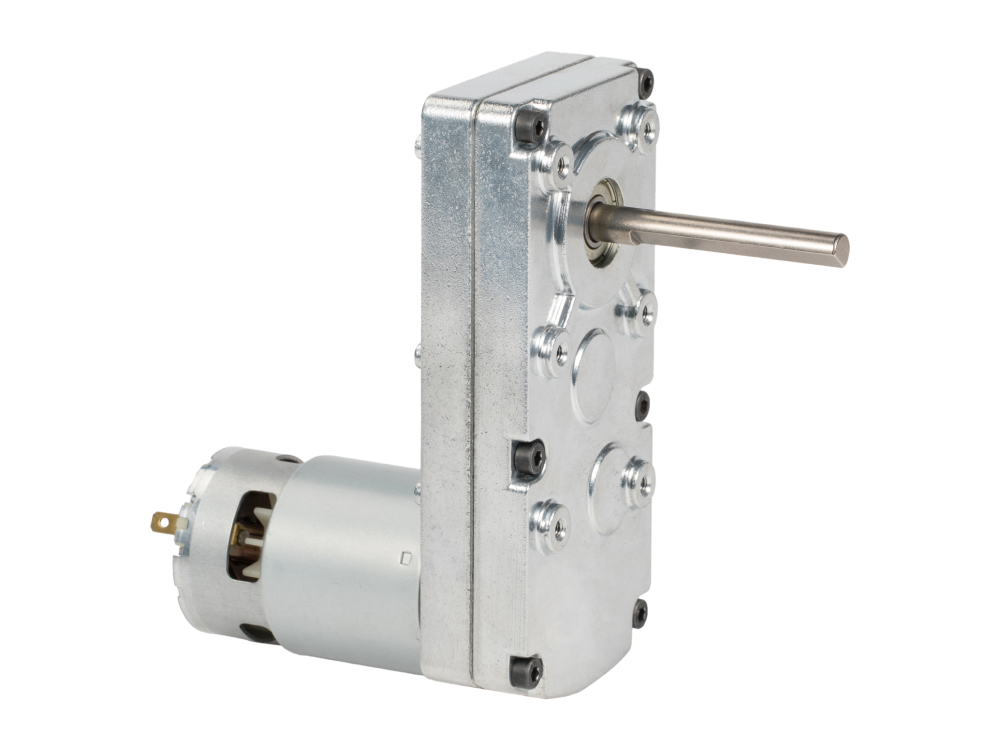

TA-DC775
TA775 DC Gearmotors - Flat
2 components · 36 combinations
- Number Of Gear Stages:
- 3 - 5
- Gear Ratio:
- 35 - 777 :1
- Gearbox Height:
- 25.5 mm
- Max Continuous Torque:
- 150 - 300 kgf·cm
- Breaking Torque:
- 500 - 1,000 kgf·cm
Specifications Toggle Specifications
| Gearbox Type | Spur Gearbox - Flat |
|---|---|
| Gearbox Model | TA |
| Gear Ratio | 35 - 777 :1 |
| Number Of Gear Stages | 3 - 5 |
| Gearbox Length | 133 mm |
| Gearbox Width | 60 mm |
| Gearbox Height | 25.5 mm |
| Max Continuous Torque | 150 - 300 kgf·cm |
| Breaking Torque | 500 - 1,000 kgf·cm |
| Gearbox Efficiency | 65 - 81 % |
| Gearbox Weight | 420 - 466 g |
| Shaft Diameter | 8 mm |
| Pinion Hole Diameter | φ 3.17 / φ 5 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Zinc Alloy （Die casting） |
| Gear Material | Powder Metallurgy (Fe) / Steel |
| Gear Design | Spur Gear |
| Output Shaft Bearing | Ball bearing |
| Lubricant In Gearbox | FUMIO |
| Axial Play | 0.35 mm |
| Radial Play | 0.1 mm |
| Backlash | 3 ° |
| Gear Module | 0.8 / 1 / 1.25 M |
