Spur Gearboxes - Round

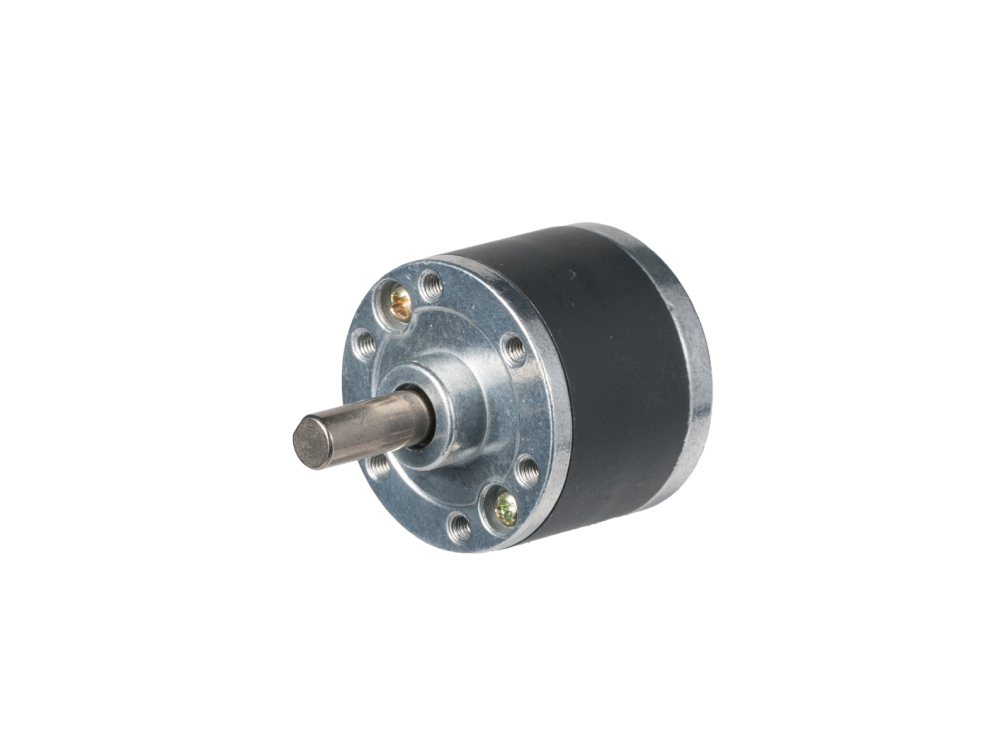

SR32 Spur Gearbox - Round
$5.49 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
10 options
Compatible
1 product
SR32-DC395
SR32395 DC Gearmotors - Round
2 components · 40 combinations
- Number Of Gear Stages:
- 3 - 7
- Gear Ratio:
- 10 - 550 :1
- Gearbox Length:
- 24.5 - 32 mm
- Max Continuous Torque:
- 1 - 3 gf·cm
- Breaking Torque:
- 3 - 9 gf·cm
Specifications Toggle Specifications
| Gearbox Type | Spur Gearbox - Round |
|---|---|
| Gearbox Model | SR32 |
| Gear Ratio | 10 - 550 :1 |
| Number Of Gear Stages | 3 - 7 |
| Gearbox Diameter | 32 mm |
| Gearbox Length | 24.5 - 32 mm |
| Max Continuous Torque | 1 - 3 gf·cm |
| Breaking Torque | 3 - 9 gf·cm |
| Gearbox Efficiency | 50 - 73 % |
| Gearbox Weight | 33 g |
| Shaft Diameter | 6 mm |
| Pinion Hole Diameter | φ2.0 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Zinc Alloy (Die casting) |
| Gear Material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear Design | Helical Gear / Spur Gear |
| Output Shaft Bearing | Sleeve Bearing |
| Lubricant In Gearbox | FUMIO |
| Axial Play | 0.3 mm |
| Radial Play | 0.05 mm |
| Backlash | 2 ° |
| Gear Module | 0.4 / 0.5 M |
