DC Gearmotors - Round
SR28395 DC Gearmotors - Round
$8.48 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Motors
4 options
39512450

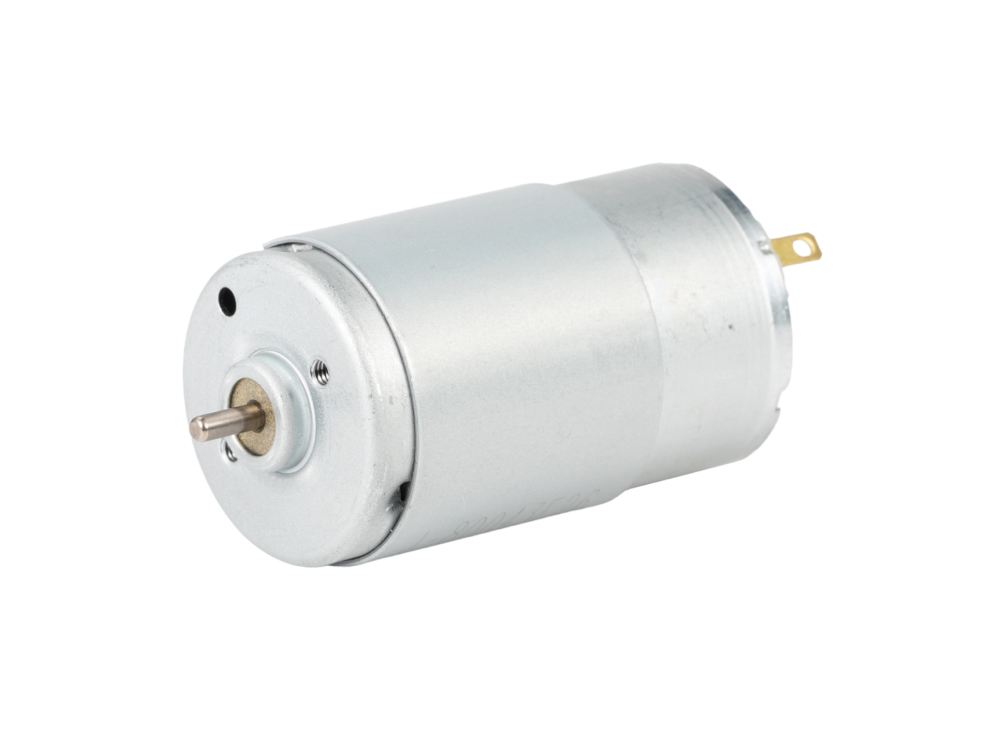

DC395 12V 4500 RPM
Gearboxes
7 options
SR2880000
SR28 8:1
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 3,879 - 5,359 rpm
- Rated Torque:
- 95 - 140 gf·cm
- Stall Torque:
- 643 - 973 gf·cm
- Rated Power:
- 3.79 - 7.73 W
Specifications Toggle Specifications
| Product Model | SR28395124500- |
|---|---|
| Gearbox Weight | 136 g |
| Rated Voltage | 12 V |
| No Load Speed | 562.5 rpm |
| Rated Speed | 485 rpm |
| No Load Current | 110 mA |
| Rated Current | 470 mA |
| Stall Current | 2,650 mA |
| Rated Torque | 616 gf·cm |
| Stall Torque | 4166.64 gf·cm |
| Rated Power | 3 W |
| Max Efficiency | 60.750 % |
| Motor Diameter | 28 mm |
| Gearbox Length | 69 mm |
| Gear Ratio | 8 :1 |
| Number Of Gear Stages | 3 |
| Max Continuous Torque | 0.5 gf·cm |
| Instantaneous Break Torque | 1.5 gf·cm |
| Backlash | 2 ° |
| Operating Temperature Range | -30 ~ 65 C |
| Working Lifespan | 400 hours |
