DC Gearmotors - Round
SG37555 DC Gearmotors - Round
$9.48 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Motors
6 options

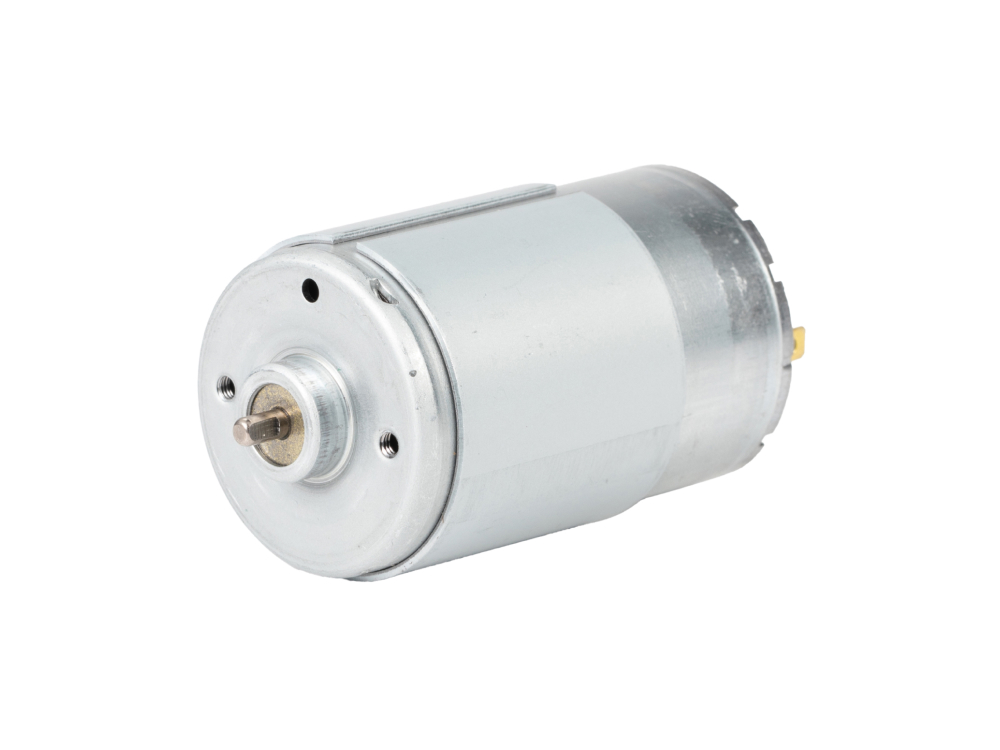

55512300
DC555 12V 3000 RPM
Gearboxes
16 options
SG37B1000
SG37B 10:1
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 2,600 - 5,300 rpm
- Rated Torque:
- 158 - 244 gf·cm
- Stall Torque:
- 1,470 - 2,065 gf·cm
- Rated Power:
- 4.11 - 12.9 W
Specifications Toggle Specifications
| Product Model | SG37555123000- |
|---|---|
| Gearbox Weight | 294 g |
| Rated Voltage | 12 V |
| No Load Speed | 300 rpm |
| Rated Speed | 260 rpm |
| No Load Current | 180 mA |
| Rated Current | 600 mA |
| Stall Current | 3,100 mA |
| Rated Torque | 1450 gf·cm |
| Stall Torque | 13,365 gf·cm |
| Rated Power | 4 W |
| Max Efficiency | 58.320 % |
| Motor Diameter | 37 mm |
| Gearbox Length | 80.5 mm |
| Gear Ratio | 10 :1 |
| Number Of Gear Stages | 2 |
| Max Continuous Torque | 1 gf·cm |
| Instantaneous Break Torque | 3 gf·cm |
| Backlash | 2 ° |
| Operating Temperature Range | -30 ~ 65 C |
| Working Lifespan | 600 hours |
