DC Gearmotors - Round
SG37528 DC Gearmotors - Round
$8.98 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Motors
4 options

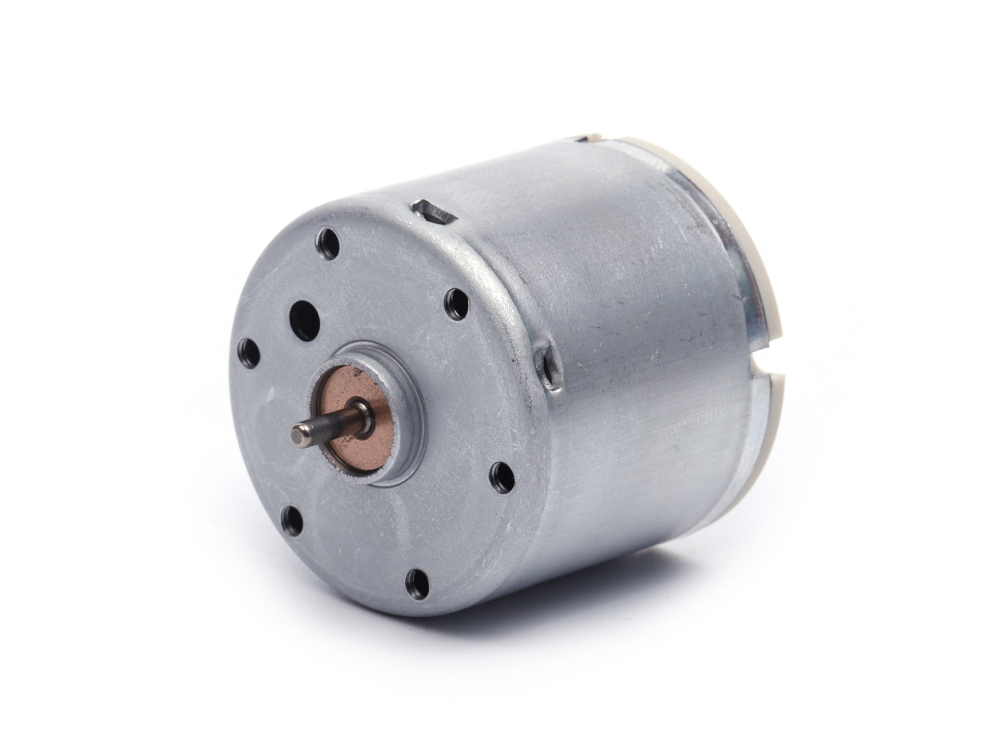

52812450
DC528 12V 4500 RPM
Gearboxes
30 options
SG37A1000
SG37A 10:1
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 3,680 - 6,000 rpm
- Rated Torque:
- 44 - 80 gf·cm
- Stall Torque:
- 281 - 472 gf·cm
- Rated Power:
- 1.75 - 4.6 W
Specifications Toggle Specifications
| Product Model | SG37528124500- |
|---|---|
| Gearbox Weight | 135 g |
| Rated Voltage | 12 V |
| No Load Speed | 450 rpm |
| Rated Speed | 387 rpm |
| No Load Current | 80 mA |
| Rated Current | 230 mA |
| Stall Current | 1,360 mA |
| Rated Torque | 356 gf·cm |
| Stall Torque | 2656.8 gf·cm |
| Rated Power | 1 W |
| Max Efficiency | 58.320 % |
| Motor Diameter | 37 mm |
| Gearbox Length | 51.6 mm |
| Gear Ratio | 10 :1 |
| Number Of Gear Stages | 2 |
| Max Continuous Torque | 1 gf·cm |
| Instantaneous Break Torque | 3 gf·cm |
| Backlash | 2 ° |
| Operating Temperature Range | -30 ~ 65 C |
| Working Lifespan | 300 hours |
Discuss Your Application with Our Engineers
Share your target speed, torque, voltage, duty cycle, control requirements, and installation envelope. Our engineering team will help you evaluate the right motor, gearbox, or integrated drive solution.
