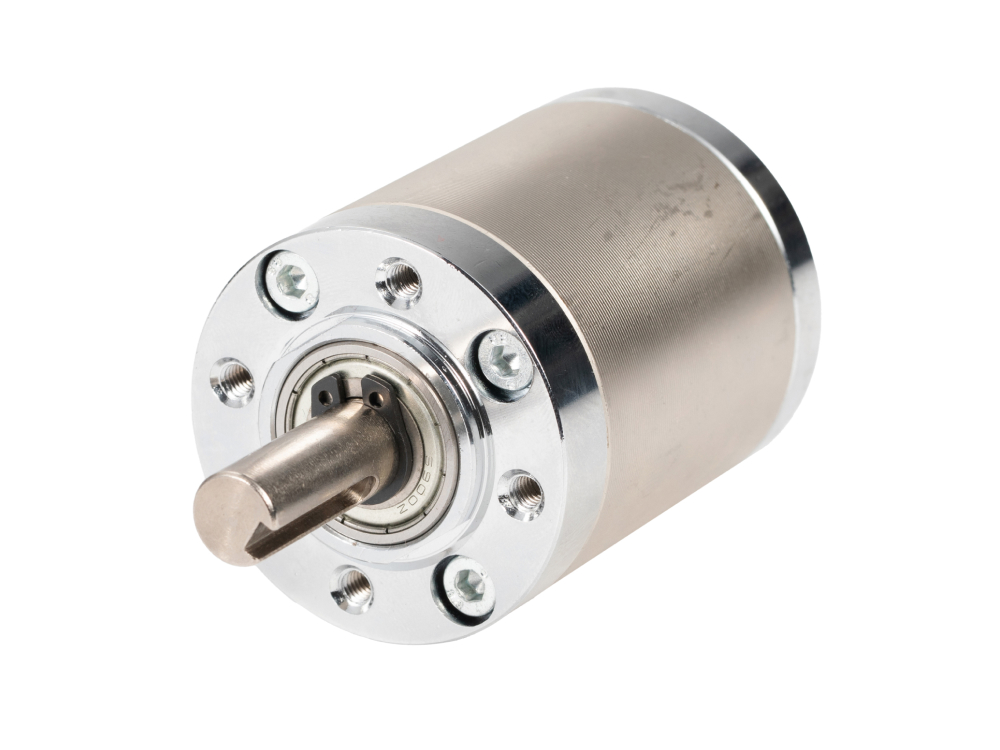

PG45 Planetary Gearbox
$24.99 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
14 options
- Number Of Gear Stages:
- 1 - 5
- Gear Ratio:
- 3.7 - 1,590 :1
- Gearbox Length:
- 33.5 - 78.2 mm
- Max Continuous Torque:
- 50 - 200 gf·cm
- Breaking Torque:
- 150 - 600 gf·cm
Specifications Toggle Specifications
| Gearbox Type | Planetary Gear Motor |
|---|---|
| Gearbox Model | PG45-3.7K / PG45-4.3K / PG45-16K / PG45-22K / PG45-59K / PG45-83K / PG45-116K / PG45-219K / PG45-307K / PG45-429K / PG45-600K / PG45-813K / PG45-1137K / PG45-1590K |
| Gear Ratio | 3.7 - 1,590 :1 |
| Number Of Gear Stages | 1 - 5 |
| Gearbox Diameter | 45 mm |
| Gearbox Length | 33.5 - 78.2 mm |
| Max Continuous Torque | 50 - 200 gf·cm |
| Breaking Torque | 150 - 600 gf·cm |
| Gearbox Efficiency | 50 - 90 % |
| Gearbox Weight | 256 - 707 g |
| Shaft Diameter | 10 mm |
| Pinion Hole Diameter | 3.19 / 5 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Powder Metallurgy (Fe) |
| Gear Material | Powder Metallurgy (Fe) / Plastics |
| Gear Design | Helical Gear |
| Output Shaft Bearing | Ball Bearing |
| Lubricant In Gearbox | Graphene oil |
| Axial Play | ≤ 0.2 mm |
| Radial Play | ≤ 0.1 mm |
| Backlash | ≤ 1.5 ° |
| Gear Module | 0.6 M |
