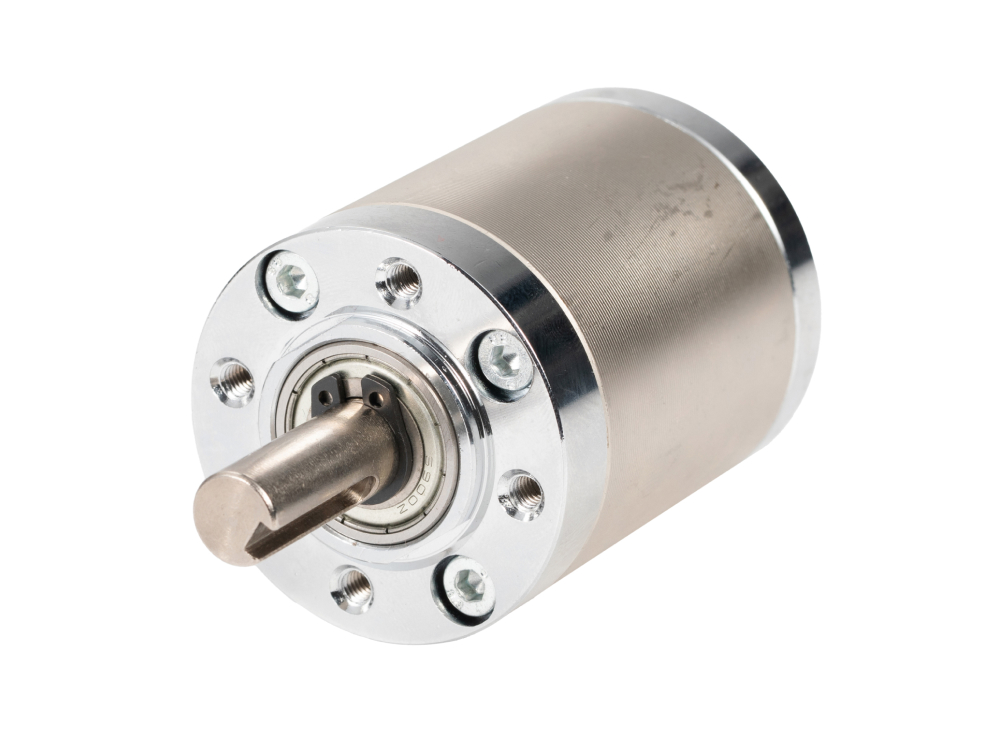

PG42 Planetary Gearbox
$24.99 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
13 options
Compatible
1 product
PG42-DC775
PG42775 Planetary Gear Motor
2 components · 78 combinations
- Number Of Gear Stages:
- 1 - 5
- Gear Ratio:
- 3.7 - 1,367 :1
- Gearbox Length:
- 31.8 - 76.4 mm
- Max Continuous Torque:
- 50 - 200 gf·cm
- Breaking Torque:
- 150 - 600 gf·cm
Specifications Toggle Specifications
| Gearbox Type | Planetary Gear Motor |
|---|---|
| Gearbox Model | PG42-3.7K / PG42-10.2K / PG42-13.7K / PG42-19.2K / PG42-32.5K / PG42-50.9K / PG42-71.2K / PG42-139K / PG42-188K / PG42-264K / PG42-699K / PG42-977K / PG42-1367K |
| Gear Ratio | 3.7 - 1,367 :1 |
| Number Of Gear Stages | 1 - 5 |
| Gearbox Diameter | 42 mm |
| Gearbox Length | 31.8 - 76.4 mm |
| Max Continuous Torque | 50 - 200 gf·cm |
| Breaking Torque | 150 - 600 gf·cm |
| Gearbox Efficiency | 50 - 90 % |
| Gearbox Weight | 250 - 700 g |
| Shaft Diameter | 8 mm |
| Pinion Hole Diameter | 3.19 / 5 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Powder Metallurgy (Fe) |
| Gear Material | Powder Metallurgy (Fe) / Plastics |
| Gear Design | Spur Gear |
| Output Shaft Bearing | Ball Bearing |
| Lubricant In Gearbox | Graphene oil |
| Axial Play | ≤ 0.2 mm |
| Radial Play | ≤ 0.1 mm |
| Backlash | ≤ 1.5 ° |
| Gear Module | 0.6 M |
3D Model Toggle 3D Model
Dimensional Drawing Toggle Dimensional Drawing
Downloads Toggle Downloads
Discuss Your Application with Our Engineers
Share your target speed, torque, voltage, duty cycle, control requirements, and installation envelope. Our engineering team will help you evaluate the right motor, gearbox, or integrated drive solution.
