Planetary Gearboxes

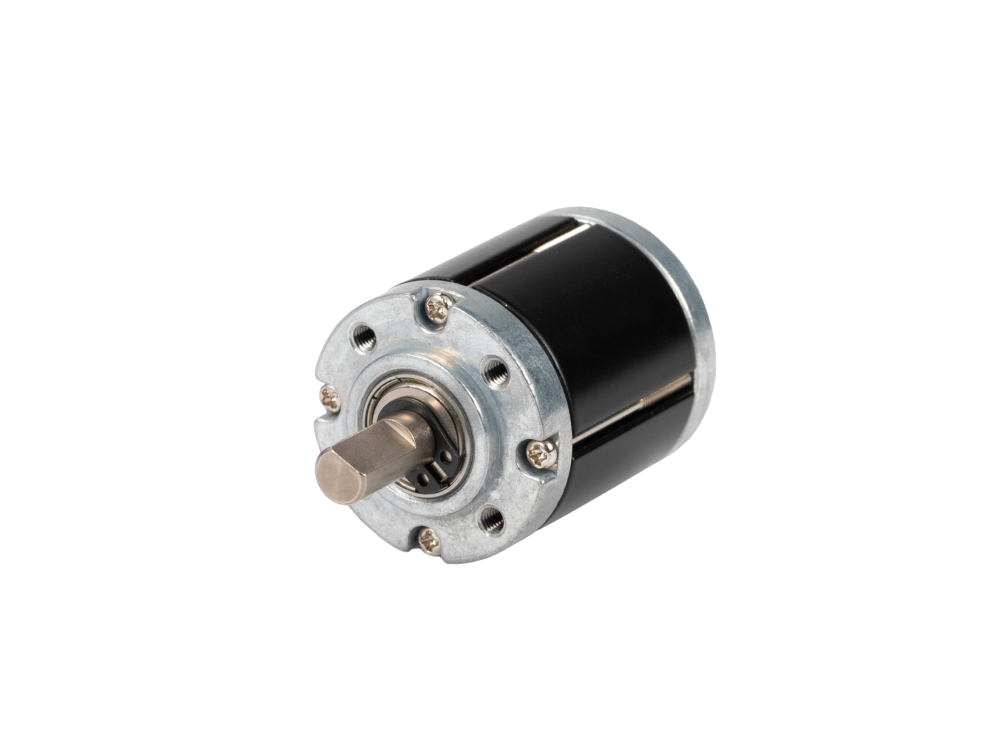

PG28 Planetary Gearbox
$13.99 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
11 options
- Number Of Gear Stages:
- 1 - 5
- Gear Ratio:
- 5 - 1,319 :1
- Gearbox Length:
- 25.9 - 52.1 mm
- Max Continuous Torque:
- 20 - 100 gf·cm
- Breaking Torque:
- 60 - 300 gf·cm
Specifications Toggle Specifications
| Gearbox Type | Planetary Gear Motor |
|---|---|
| Gearbox Model | PG28-5K / PG28-18.5K / PG28-26K / PG28-69K / PG28-96K / PG28-134K / PG28-255K / PG28-356K / PG28-696K / PG28-943K / PG28-1319K |
| Gear Ratio | 5 - 1,319 :1 |
| Number Of Gear Stages | 1 - 5 |
| Gearbox Diameter | 28 mm |
| Gearbox Length | 25.9 - 52.1 mm |
| Max Continuous Torque | 20 - 100 gf·cm |
| Breaking Torque | 60 - 300 gf·cm |
| Gearbox Efficiency | 50 - 91 % |
| Gearbox Weight | 67 - 139 g |
| Shaft Diameter | 6 mm |
| Pinion Hole Diameter | 2.28 / 3.14 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Powder Metallurgy (Fe) |
| Gear Material | Powder Metallurgy (Fe) / Plastics |
| Gear Design | Spur Gear |
| Output Shaft Bearing | Ball Bearing |
| Lubricant In Gearbox | Graphene oil |
| Axial Play | ≤ 0.2 mm |
| Radial Play | ≤ 0.1 mm |
| Backlash | ≤ 1.5 ° |
| Gear Module | 0.5 M |
