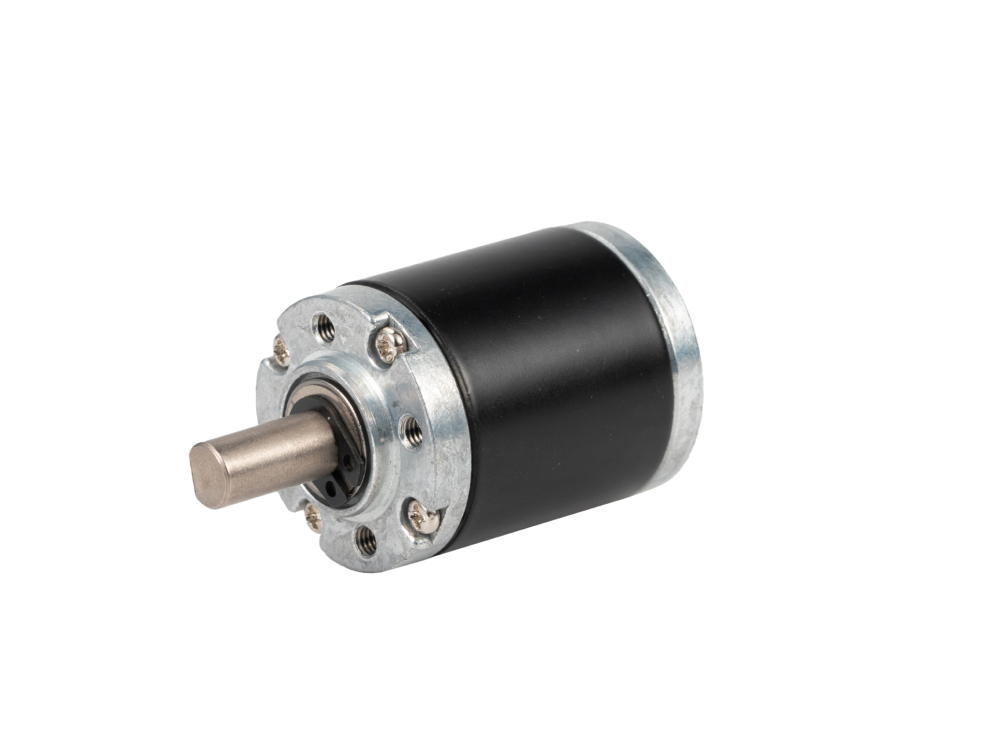

PG25 Planetary Gearbox
$13.99 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
11 options
Compatible
1 product
PG25-DC370

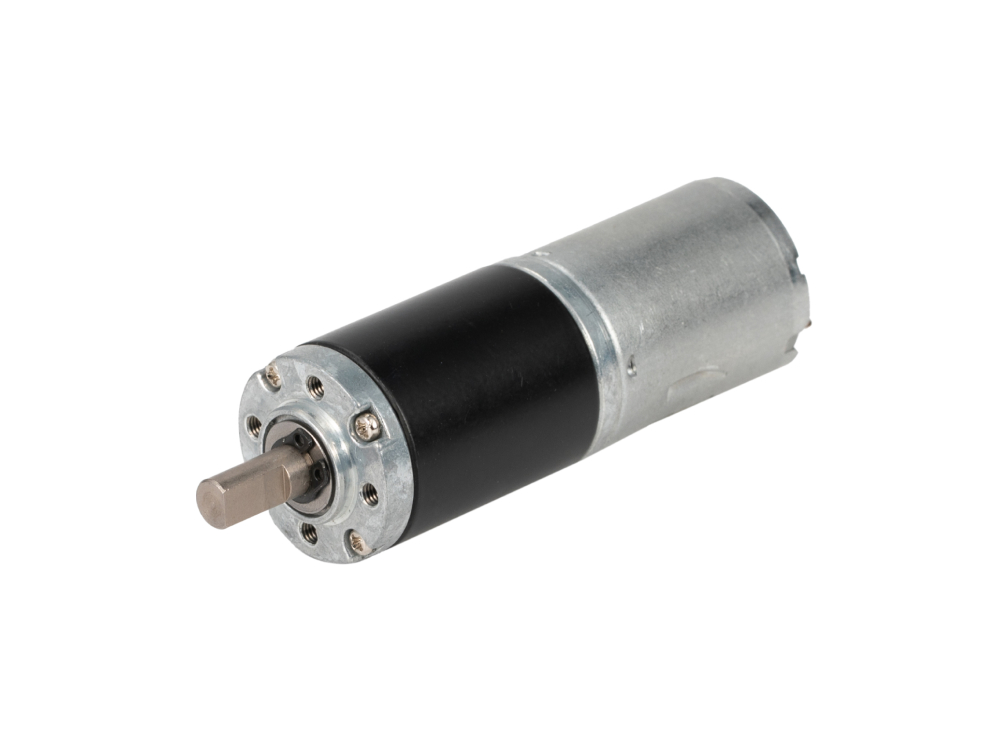

PG25370 Planetary Gear Motor
2 components · 44 combinations
- Number Of Gear Stages:
- 1 - 4
- Gear Ratio:
- 4 - 1,026 :1
- Gearbox Length:
- 25 - 40.3 mm
- Max Continuous Torque:
- 3 - 10 gf·cm
- Breaking Torque:
- 9 - 30 gf·cm
Specifications Toggle Specifications
| Gearbox Type | Planetary Gear Motor |
|---|---|
| Gearbox Model | PG25-4K / PG25-4.8K / PG25-19K / PG25-24K / PG25-28.5K / PG25-64K / PG25-96K / PG25-144K / PG25-304K / PG25-576K / PG25-1026K |
| Gear Ratio | 4 - 1,026 :1 |
| Number Of Gear Stages | 1 - 4 |
| Gearbox Diameter | 25 mm |
| Gearbox Length | 25 - 40.3 mm |
| Max Continuous Torque | 3 - 10 gf·cm |
| Breaking Torque | 9 - 30 gf·cm |
| Gearbox Efficiency | 72 - 90 % |
| Gearbox Weight | 50 - 98 g |
| Shaft Diameter | 6 mm |
| Pinion Hole Diameter | 2.28 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Powder Metallurgy (Fe) |
| Gear Material | Powder Metallurgy (Fe) / Plastics |
| Gear Design | Spur Gear |
| Output Shaft Bearing | Bushing |
| Lubricant In Gearbox | Graphene oil |
| Axial Play | ≤ 0.2 mm |
| Radial Play | ≤ 0.1 mm |
| Backlash | ≤ 1.5 ° |
| Gear Module | 0.4 M |
