Planetary Gearboxes

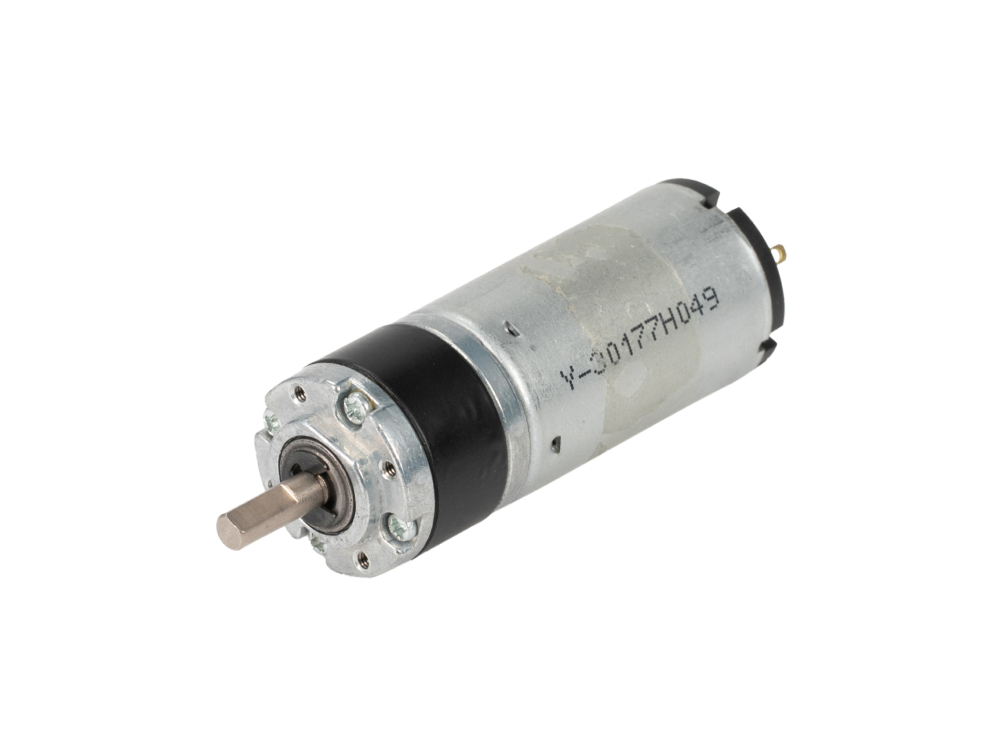

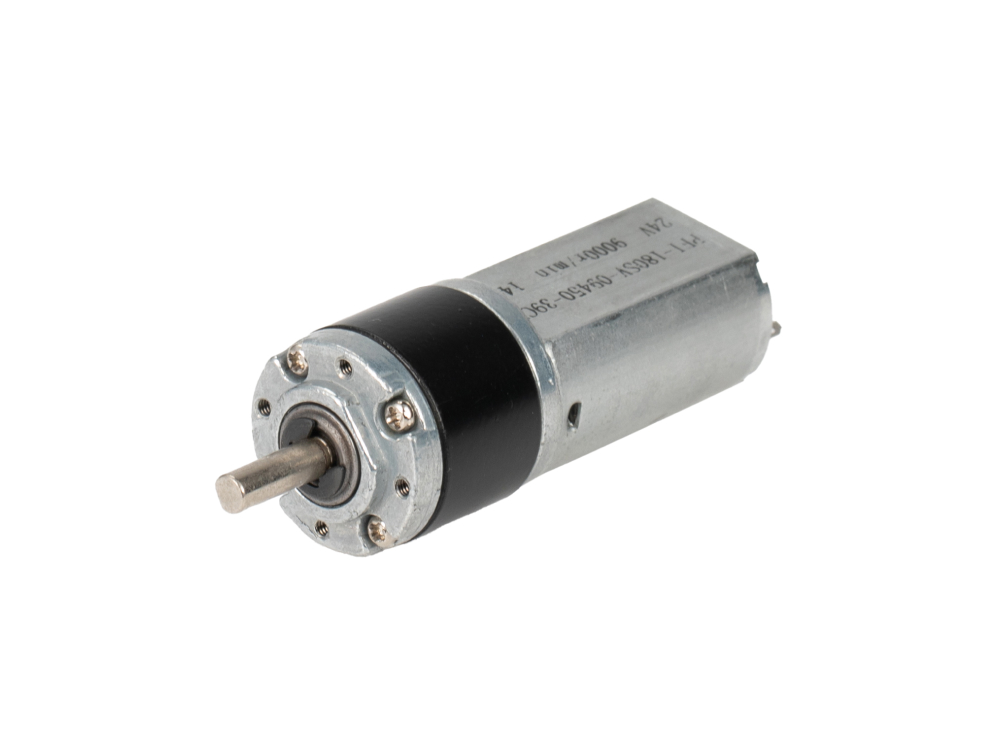

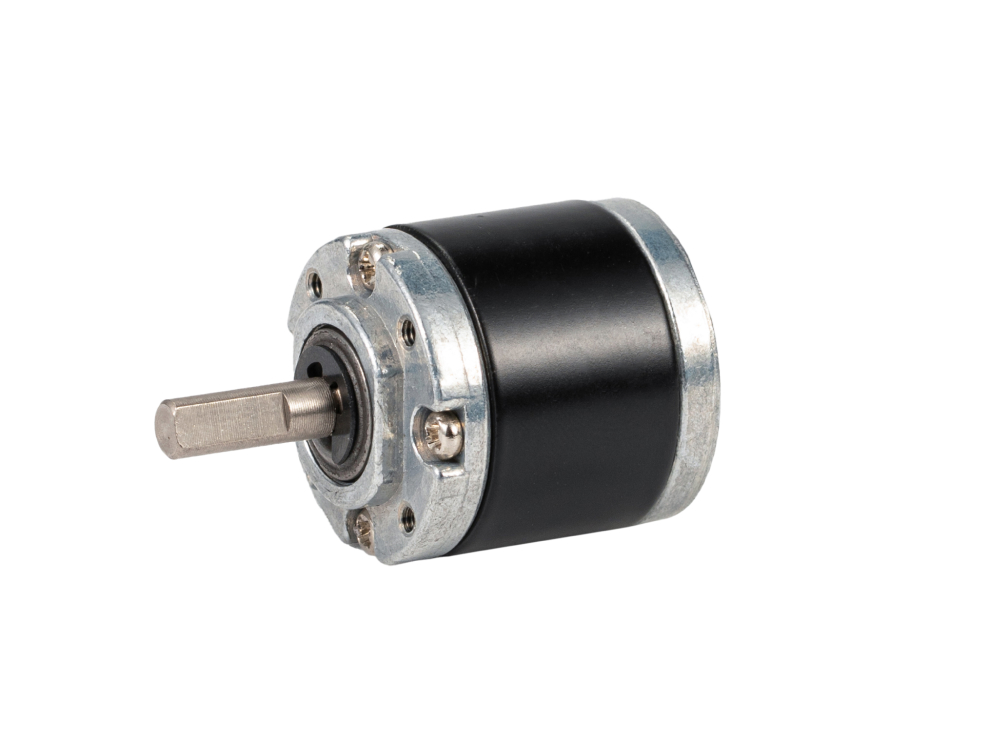

PG22 Planetary Gearbox
$13.99 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
11 options
- Number Of Gear Stages:
- 1 - 4
- Gear Ratio:
- 4.4 - 812 :1
- Gearbox Length:
- 13.9 - 24.7 mm
- Max Continuous Torque:
- 3 - 10 gf·cm
- Breaking Torque:
- 9 - 30 gf·cm
Specifications Toggle Specifications
| Gearbox Type | Planetary Gear Motor |
|---|---|
| Gearbox Model | PG22-4.4K / PG22-4.8K / PG22-19K / PG22-24K / PG22-28.5K / PG22-64K / PG22-96K / PG22-144K / PG22-304K / PG22-509K / PG22-812K |
| Gear Ratio | 4.4 - 812 :1 |
| Number Of Gear Stages | 1 - 4 |
| Gearbox Diameter | 22 mm |
| Gearbox Length | 13.9 - 24.7 mm |
| Max Continuous Torque | 3 - 10 gf·cm |
| Breaking Torque | 9 - 30 gf·cm |
| Gearbox Efficiency | 60 - 90 % |
| Gearbox Weight | 30 - 53 g |
| Shaft Diameter | 4 mm |
| Pinion Hole Diameter | 1.98 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Cold-Extruded Steel |
| Gear Material | Powder Metallurgy (Fe) / Plastics |
| Gear Design | Helical Gear |
| Output Shaft Bearing | Dual Ball bearing |
| Lubricant In Gearbox | Graphene oil |
| Axial Play | ≤ 0.2 mm |
| Radial Play | ≤ 0.1 mm |
| Backlash | ≤ 1.5 ° |
| Gear Module | 0.4 M |
