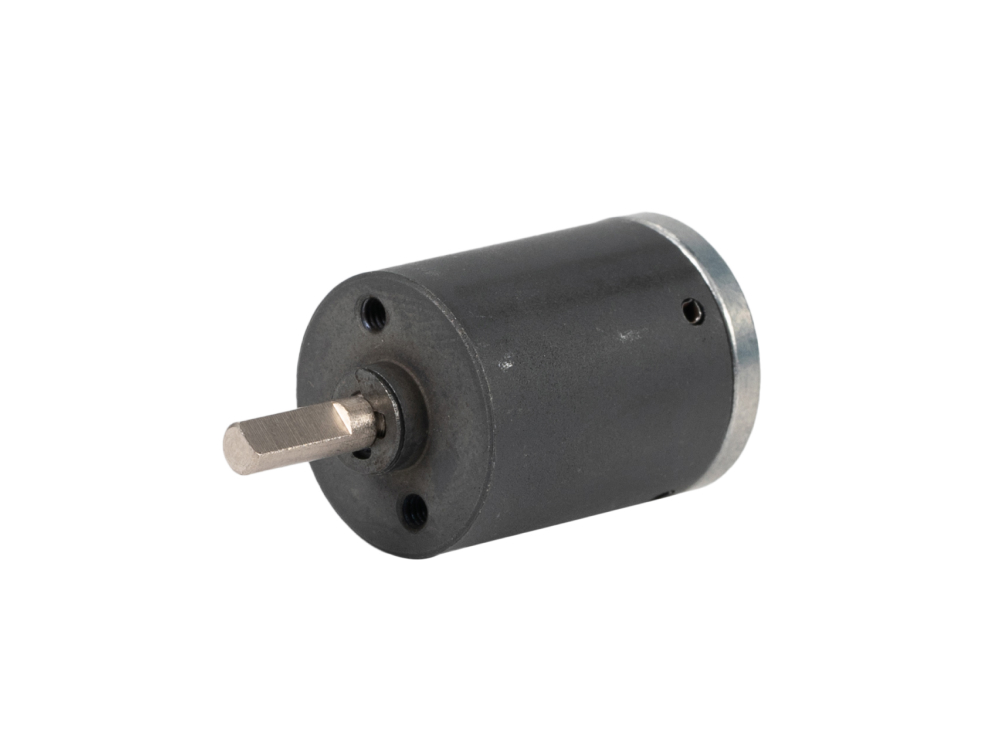

PG16 Planetary Gearbox
$15.99 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
12 options
Compatible
1 product

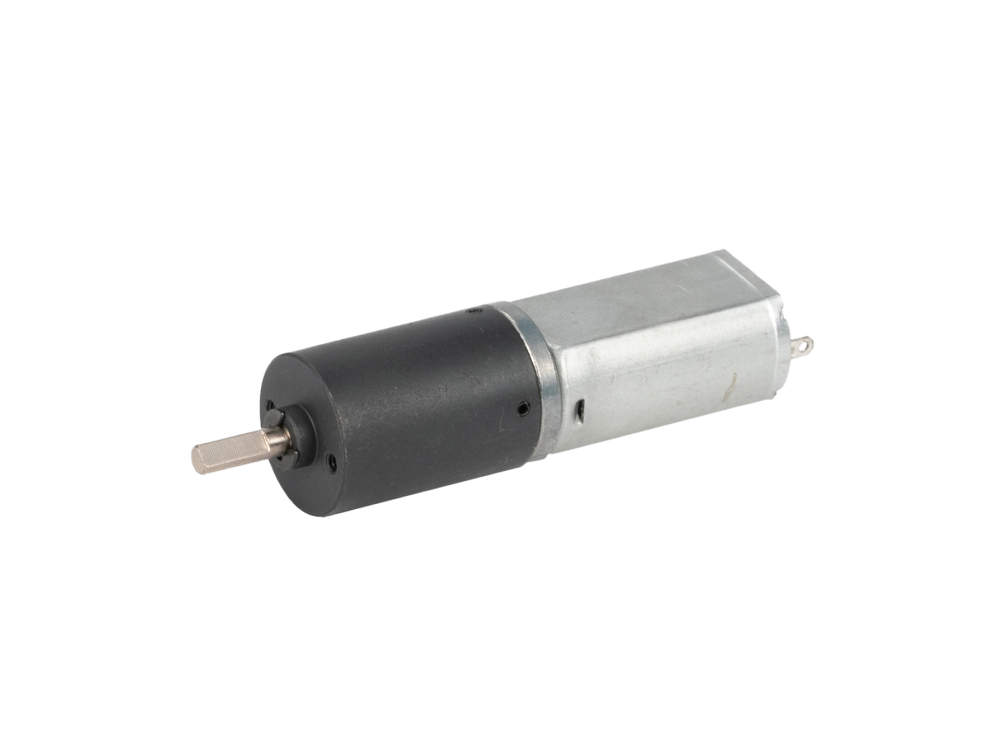

PG16-DC050
PG16050 Planetary Gear Motor
2 components · 36 combinations
- Number Of Gear Stages:
- 1 - 5
- Gear Ratio:
- 4 - 1,024 :1
- Gearbox Length:
- 13.7 - 28.1 mm
- Max Continuous Torque:
- 1 - 4 gf·cm
- Breaking Torque:
- 3 - 12 gf·cm
Specifications Toggle Specifications
| Gearbox Type | Planetary Gear Motor |
|---|---|
| Gearbox Model | PG16-4K / PG16-4.75K / PG16-12.3K / PG16-16K / PG16-19K / PG16-42.8K / PG16-64K / PG16-76K / PG16-150K / PG16-256K / PG16-712K / PG16-1024K |
| Gear Ratio | 4 - 1,024 :1 |
| Number Of Gear Stages | 1 - 5 |
| Gearbox Diameter | 16 mm |
| Gearbox Length | 13.7 - 28.1 mm |
| Max Continuous Torque | 1 - 4 gf·cm |
| Breaking Torque | 3 - 12 gf·cm |
| Gearbox Efficiency | 50 - 90 % |
| Gearbox Weight | 14 - 27 g |
| Shaft Diameter | 3 mm |
| Pinion Hole Diameter | 1.48 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Powder Metallurgy (Fe) |
| Gear Material | Powder Metallurgy (Fe) / Plastics |
| Gear Design | Helical Gear |
| Output Shaft Bearing | Dual Ball bearing |
| Lubricant In Gearbox | Graphene oil |
| Axial Play | ≤ 0.2 mm |
| Radial Play | ≤ 0.1 mm |
| Backlash | ≤ 1.5 ° |
| Gear Module | 0.3 M |
