Outrunner BLDC Motors

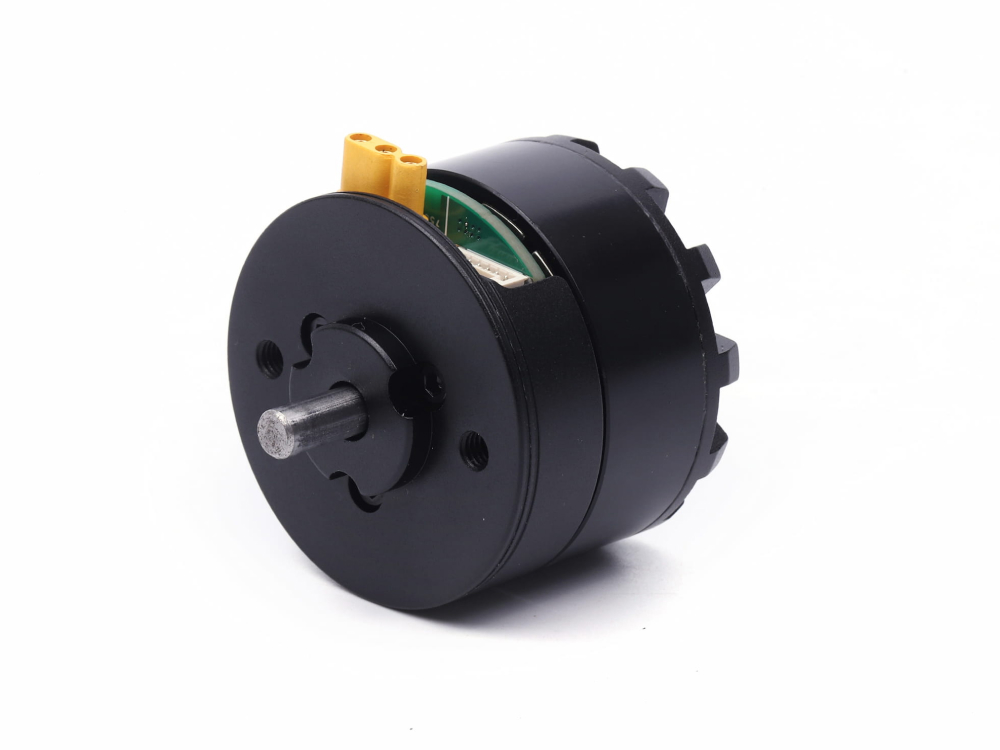

MX53 Outrunner BLDC Motors
$54.90 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
2 options
- Rated Voltage:
- 24 - 48 V
- Rated Speed:
- 2,450 - 4,900 rpm
- Rated Torque:
- 5.1 - 10.2 gf·cm
- Stall Torque:
- 14.79 - 28.55 gf·cm
- Rated Power:
- 100 - 380 W
Specifications Toggle Specifications
| Motor Model | MX5310KV100-24V / MX5310KV100-48V |
|---|---|
| Motor Type | Outrunner BLDC Motor |
| Rated Voltage | 24 - 48 V |
| No Load Speed | 3,600 - 7,200 rpm |
| Rated Speed | 2,450 - 4,900 rpm |
| No Load Current | 0.23 - 0.5 mA |
| Rated Current | 1.2 - 2.4 mA |
| Stall Current | 14 - 30 mA |
| Rated Torque | 5 - 10 gf·cm |
| Stall Torque | 14.79 - 28.55 gf·cm |
| Rated Power | 100 - 380 W |
| Max Efficiency | 82.000 - 83.000 % |
| Motor Diameter | 62 mm |
| Motor Length | 37 mm |
| Motor Weight | 300 g |
| Shaft Diameter | 8 mm |
| Shaft Configuration | Single |
| Connector | GH1.25-F-5P |
| Working Lifespan | 3,000 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Housing Material | Anodized Aluminum Alloy Housing |
| Direction Of Rotation | CW/CCW |
| Number Of Pole Pairs | 7 |
| Number Of Phases | 3 |
| Rotor Inertia | 8.200 g·cm² |
| Speed Constant | 100 KV |
| Torque Constant | 44 mNm/A |
| Single Phase Resistance | 0.4 mOhm |
| DQ Inductance | 400 uH |
| Friction | 0.6 µN·m·s |
| Magnet Material | Nd2Fe14B |
| Enameled Wire Material | Enameled Copper Wire |
| Insulation Class | UEW |
| Hall Sensor Type | bipolar self-locking hall |
| Number of Halls | 3 |
| Electrical Angle | 120 ° |
| Gearbox | PG56 |
Discuss Your Application with Our Engineers
Share your target speed, torque, voltage, duty cycle, control requirements, and installation envelope. Our engineering team will help you evaluate the right motor, gearbox, or integrated drive solution.
