Outrunner BLDC Motors

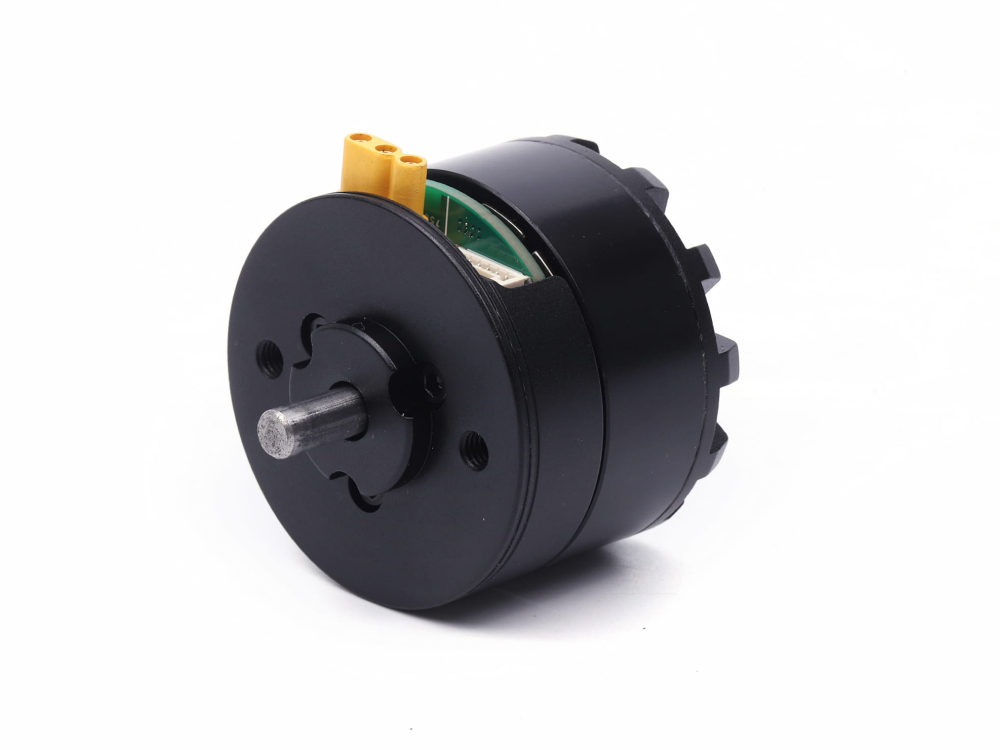

MX42 Outrunner BLDC Motors
$45.90 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
2 options
- Rated Voltage:
- 24 - 48 V
- Rated Speed:
- 2,550 - 3,100 rpm
- Rated Torque:
- 2.86 - 5.71 gf·cm
- Stall Torque:
- 6.83 - 13.26 gf·cm
- Rated Power:
- 74 - 256 W
Specifications Toggle Specifications
| Motor Model | MX4210KV150-24V / MX4210KV150-48V |
|---|---|
| Motor Type | Outrunner BLDC Motor |
| Rated Voltage | 24 - 48 V |
| No Load Speed | 3,600 - 7,200 rpm |
| Rated Speed | 2,550 - 3,100 rpm |
| No Load Current | 0.23 - 0.3 mA |
| Rated Current | 4.2 - 8.4 mA |
| Stall Current | 11.5 - 25 mA |
| Rated Torque | 3 - 6 gf·cm |
| Stall Torque | 6.83 - 13.26 gf·cm |
| Rated Power | 74 - 256 W |
| Max Efficiency | 85.000 - 86.000 % |
| Motor Diameter | 52 mm |
| Motor Length | 34 mm |
| Motor Weight | 220 g |
| Shaft Diameter | 6.35 mm |
| Shaft Configuration | Single |
| Connector | GH1.25-F-5P |
| Working Lifespan | 3,000 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Housing Material | Anodized Aluminum Alloy Housing |
| Direction Of Rotation | CW/CCW |
| Number Of Pole Pairs | 7 |
| Number Of Phases | 3 |
| Rotor Inertia | 6.500 g·cm² |
| Speed Constant | 150 KV |
| Torque Constant | 65 mNm/A |
| Single Phase Resistance | 0.41 mOhm |
| DQ Inductance | 200 uH |
| Friction | 0.5 µN·m·s |
| Magnet Material | Nd2Fe14B |
| Enameled Wire Material | Enameled Copper Wire |
| Insulation Class | UEW |
| Hall Sensor Type | bipolar self-locking hall |
| Number of Halls | 3 |
| Electrical Angle | 120 ° |
| Gearbox | PG52 |
