Outrunner BLDC Motors

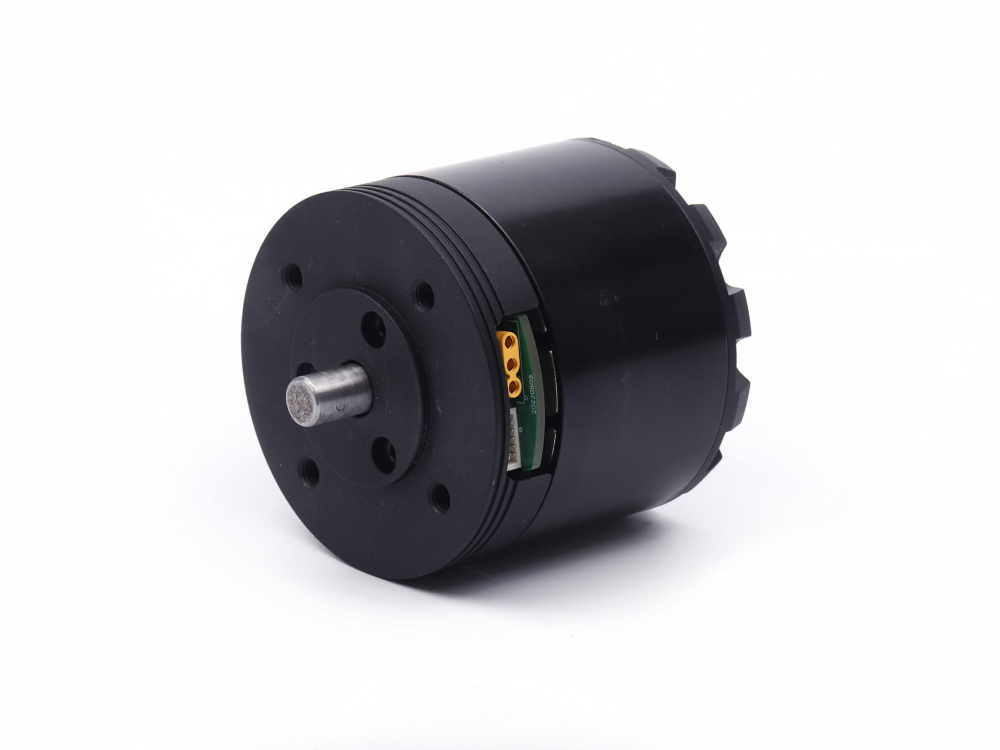

MX33 Outrunner BLDC Motors
$35.90 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
2 options
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 1,100 - 2,100 rpm
- Rated Torque:
- 0.55 - 1.19 gf·cm
- Stall Torque:
- 3.06 - 3.26 gf·cm
- Rated Power:
- 8 - 30 W
Specifications Toggle Specifications
| Motor Model | MX3310KV125-12V / MX3310KV125-24V |
|---|---|
| Motor Type | Outrunner BLDC Motor |
| Rated Voltage | 12 - 24 V |
| No Load Speed | 1,500 - 3,000 rpm |
| Rated Speed | 1,100 - 2,100 rpm |
| No Load Current | 0.09 - 0.15 mA |
| Rated Current | 0.8 - 1.6 mA |
| Stall Current | 3.5 - 4.5 mA |
| Rated Torque | 1 - 1 gf·cm |
| Stall Torque | 3.06 - 3.26 gf·cm |
| Rated Power | 8 - 30 W |
| Max Efficiency | 80.000 - 82.000 % |
| Motor Diameter | 42 mm |
| Motor Length | 32 mm |
| Motor Weight | 130 g |
| Shaft Diameter | 5 mm |
| Shaft Configuration | Single |
| Connector | GH1.25-F-5P |
| Working Lifespan | 3,000 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Housing Material | Anodized Aluminum Alloy Housing |
| Direction Of Rotation | CW/CCW |
| Number Of Pole Pairs | 7 |
| Number Of Phases | 3 |
| Rotor Inertia | 2.700 g·cm² |
| Speed Constant | 125 KV |
| Torque Constant | 45 mNm/A |
| Single Phase Resistance | 1.75 mOhm |
| DQ Inductance | 450 uH |
| Friction | 0.5 µN·m·s |
| Magnet Material | Nd2Fe14B |
| Enameled Wire Material | Enameled Copper Wire |
| Insulation Class | UEW |
| Hall Sensor Type | bipolar self-locking hall |
| Number of Halls | 3 |
| Electrical Angle | 120 ° |
| Gearbox | PG42 |
