Outrunner BLDC Motors

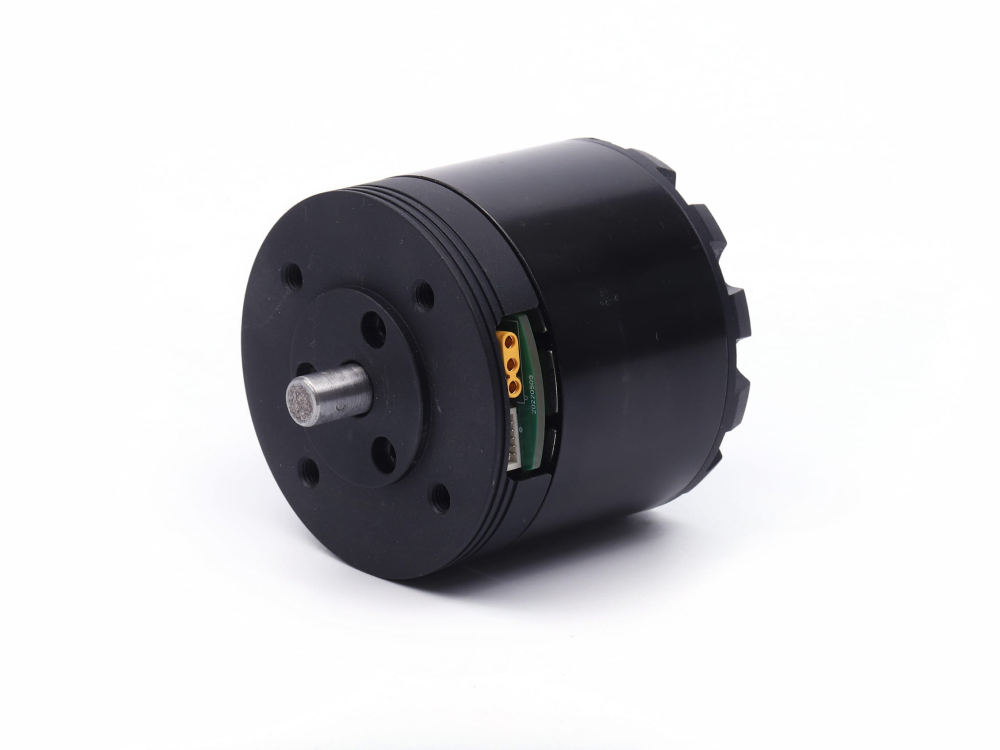

MX28 Outrunner BLDC Motors
$26.90 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
2 options
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 1,150 - 2,400 rpm
- Rated Torque:
- 0.48 - 0.79 gf·cm
- Stall Torque:
- 1.22 - 1.84 gf·cm
- Rated Power:
- 6 - 22 W
Specifications Toggle Specifications
| Motor Model | MX2810KV150-12V / MX2810KV150-24V |
|---|---|
| Motor Type | Outrunner BLDC Motor |
| Rated Voltage | 12 - 24 V |
| No Load Speed | 1,800 - 3,600 rpm |
| Rated Speed | 1,150 - 2,400 rpm |
| No Load Current | 0.11 - 0.12 mA |
| Rated Current | 0.9 - 1.4 mA |
| Stall Current | 2.2 - 3.5 mA |
| Rated Torque | 0 - 1 gf·cm |
| Stall Torque | 1.22 - 1.84 gf·cm |
| Rated Power | 6 - 22 W |
| Max Efficiency | 63.000 - 70.000 % |
| Motor Diameter | 36 mm |
| Motor Length | 30 mm |
| Motor Weight | 90 g |
| Shaft Diameter | 3.17 mm |
| Shaft Configuration | Single |
| Connector | GH1.25-F-14P |
| Working Lifespan | 3,000 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Housing Material | Anodized Aluminum Alloy Housing |
| Direction Of Rotation | CW/CCW |
| Number Of Pole Pairs | 7 |
| Number Of Phases | 3 |
| Rotor Inertia | 1.600 g·cm² |
| Speed Constant | 150 KV |
| Torque Constant | 52 mNm/A |
| Single Phase Resistance | 2 mOhm |
| DQ Inductance | 400 uH |
| Friction | 0.5 µN·m·s |
| Magnet Material | Nd2Fe14B |
| Enameled Wire Material | Enameled Copper Wire |
| Insulation Class | UEW |
| Hall Sensor Type | bipolar self-locking hall |
| Number of Halls | 3 |
| Electrical Angle | 120 ° |
| Gearbox | PG36 |
