Outrunner BLDC Motors

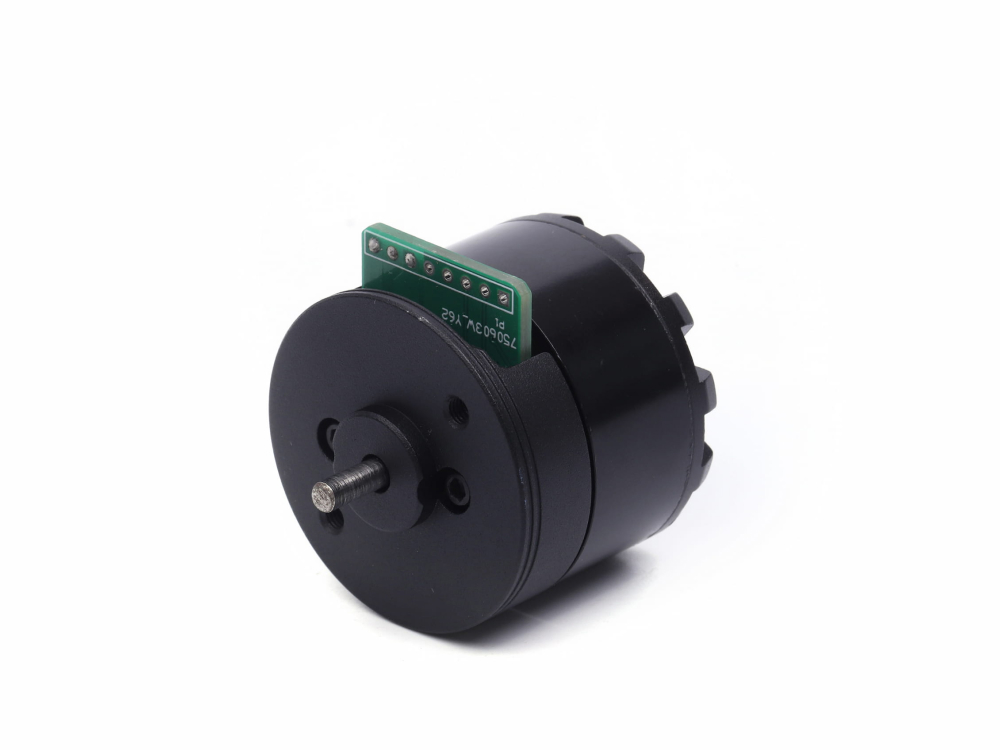

MX22 Outrunner BLDC Motors
$24.90 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
2 options
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 3,300 - 7,200 rpm
- Rated Torque:
- 330 - 450 gf·cm
- Stall Torque:
- 1,050 - 2,100 gf·cm
- Rated Power:
- 15 - 45 W
Specifications Toggle Specifications
| Motor Model | MX2210KV360-12V / MX2210KV360-24V |
|---|---|
| Motor Type | Outrunner BLDC Motor |
| Rated Voltage | 12 - 24 V |
| No Load Speed | 4,300 - 8,600 rpm |
| Rated Speed | 3,300 - 7,200 rpm |
| No Load Current | 150 - 260 mA |
| Rated Current | 1,300 - 1,700 mA |
| Stall Current | 4,500 - 8,000 mA |
| Rated Torque | 330 - 450 gf·cm |
| Stall Torque | 1,050 - 2,100 gf·cm |
| Rated Power | 15 - 45 W |
| Max Efficiency | 83.000 - 84.000 % |
| Motor Diameter | 28 mm |
| Motor Length | 26 mm |
| Motor Weight | 52 g |
| Shaft Diameter | 3 mm |
| Shaft Configuration | Single |
| Connector | GH1.25-F-8P |
| Working Lifespan | 3,000 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Housing Material | Anodized Aluminum Alloy Housing |
| Direction Of Rotation | CW/CCW |
| Number Of Pole Pairs | 7 |
| Number Of Phases | 3 |
| Rotor Inertia | 0.750 g·cm² |
| Speed Constant | 360 KV |
| Torque Constant | 23 mNm/A |
| Single Phase Resistance | 750 mOhm |
| DQ Inductance | 100 uH |
| Friction | 0.5 µN·m·s |
| Magnet Material | Nd2Fe14B |
| Enameled Wire Material | Enameled Copper Wire |
| Insulation Class | UEW |
| Hall Sensor Type | bipolar self-locking hall |
| Number of Halls | 3 |
| Electrical Angle | 120 ° |
| Gearbox | PG28 |
