DC Gearmotors - Flat

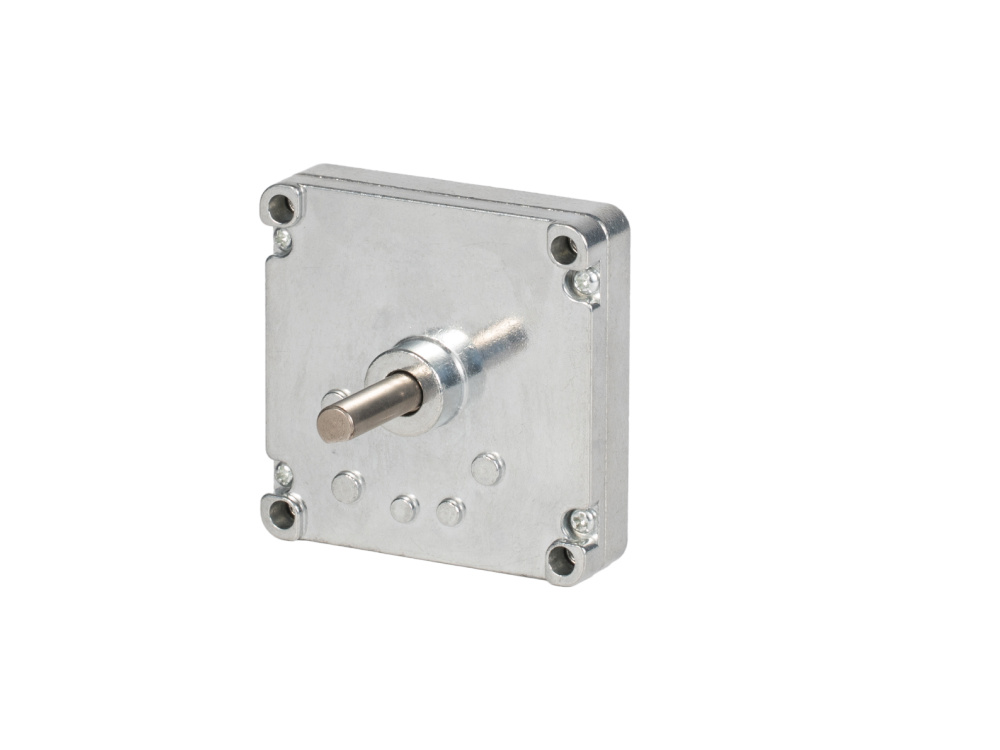

MG555 DC Gearmotors - Flat
$12.98 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Motors
6 options
55512300
DC555 12V 3000 RPM
Gearboxes
13 options
MG1300
MG 13:1
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 2,600 - 5,300 rpm
- Rated Torque:
- 158 - 244 gf·cm
- Stall Torque:
- 1,470 - 2,065 gf·cm
- Rated Power:
- 4.11 - 12.9 W
Specifications Toggle Specifications
| Product Model | MG555123000- |
|---|---|
| Gearbox Weight | 494 g |
| Rated Voltage | 12 V |
| No Load Speed | 230.769231 rpm |
| Rated Speed | 200 rpm |
| No Load Current | 180 mA |
| Rated Current | 600 mA |
| Stall Current | 3,100 mA |
| Rated Torque | 1699 gf·cm |
| Stall Torque | 15658.5 gf·cm |
| Rated Power | 3488 W |
| Max Efficiency | 52.560 % |
| Gearbox Length | 127 mm |
| Gear Ratio | 13 :1 |
| Number Of Gear Stages | 3 |
| Max Continuous Torque | 10 gf·cm |
| Instantaneous Break Torque | 30 gf·cm |
| Backlash | 3 ° |
| Operating Temperature Range | -30 ~ 65 C |
| Working Lifespan | 600 hours |
Discuss Your Application with Our Engineers
Share your target speed, torque, voltage, duty cycle, control requirements, and installation envelope. Our engineering team will help you evaluate the right motor, gearbox, or integrated drive solution.
