DC Motors

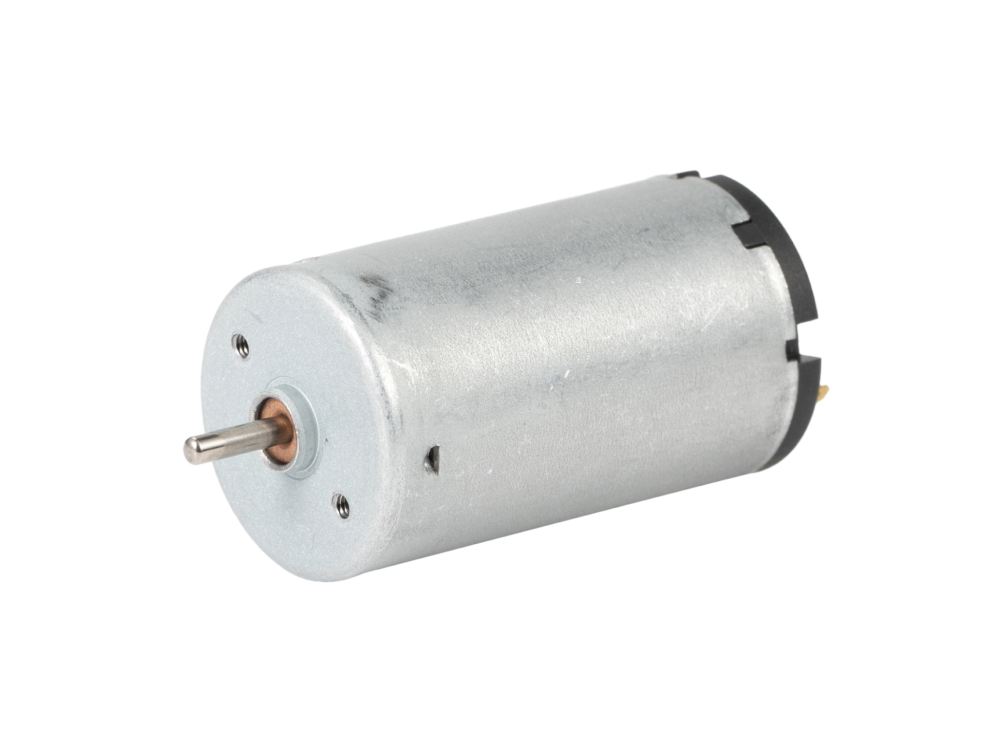

DC2238 Brushed DC Motor
$5.49 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
4 options
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 3,600 - 5,388 rpm
- Rated Torque:
- 35 - 50 gf·cm
- Stall Torque:
- 160 - 317 gf·cm
- Rated Power:
- 1.3 - 2.75 W
Specifications Toggle Specifications
| Motor Model | DC2238-124500 / DC2238-126000 / DC2238-244500 / DC2238-246000 |
|---|---|
| Motor Type | Brushed DC Motor |
| Rated Voltage | 12 - 24 V |
| No Load Speed | 4,500 - 6,000 rpm |
| Rated Speed | 3,600 - 5,388 rpm |
| No Load Current | 50 - 110 mA |
| Rated Current | 140 - 350 mA |
| Stall Current | 750 - 1,350 mA |
| Rated Torque | 35 - 50 gf·cm |
| Stall Torque | 160 - 317 gf·cm |
| Rated Power | 1 - 3 W |
| Max Efficiency | 75.000 % |
| Motor Diameter | 22 mm |
| Motor Length | 38.2 mm |
| Motor Weight | 48 g |
| Shaft Diameter | 2 mm |
| Shaft Configuration | Single/Dual |
| Connector | 2 |
| Working Lifespan | 250 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Housing Material | Electrolytic zinc coated steel |
| Direction Of Rotation | CW/CCW |
| Enameled Wire Material | Enameled copper wire |
| Magnet Material | Ferrite |
| Carbon Brush Material | Metal graphite brush |
| Insulation Class | UEW |
| Number Of Pole Pairs | 2 |
| Gearbox | PG22 |
