DC Motors

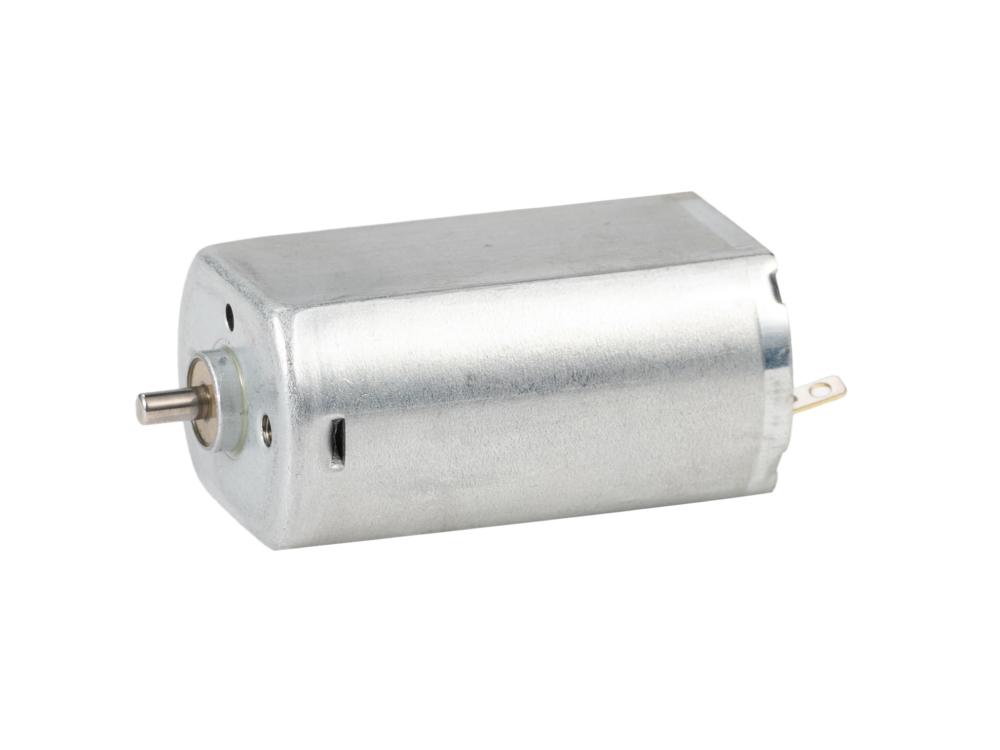

DC180 Brushed DC Motor
$1.99 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
4 options
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 7,200 - 12,600 rpm
- Rated Torque:
- 23 - 36 gf·cm
- Stall Torque:
- 120 - 220 gf·cm
- Rated Power:
- 1.74 - 4.5 W
Specifications Toggle Specifications
| Motor Model | DC180-129000 / DC180-1215000 / DC180-249000 / DC180-2415000 |
|---|---|
| Motor Type | Brushed DC Motor |
| Rated Voltage | 12 - 24 V |
| No Load Speed | 9,000 - 15,000 rpm |
| Rated Speed | 7,200 - 12,600 rpm |
| No Load Current | 25 - 135 mA |
| Rated Current | 110 - 600 mA |
| Stall Current | 550 - 3,000 mA |
| Rated Torque | 23 - 36 gf·cm |
| Stall Torque | 120 - 220 gf·cm |
| Rated Power | 2 - 5 W |
| Max Efficiency | 71.000 - 72.000 % |
| Motor Diameter | 20.4 mm |
| Motor Length | 32.1 mm |
| Motor Weight | 31 g |
| Shaft Diameter | 2 mm |
| Shaft Configuration | Single/Dual |
| Connector | 2 |
| Working Lifespan | 150 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Housing Material | Electrolytic zinc coated steel |
| Direction Of Rotation | CW/CCW |
| Enameled Wire Material | Enameled copper wire |
| Magnet Material | Ferrite |
| Carbon Brush Material | Metal graphite brush |
| Insulation Class | UEW |
| Number Of Pole Pairs | 2 |
| Gearbox | PG22 |
