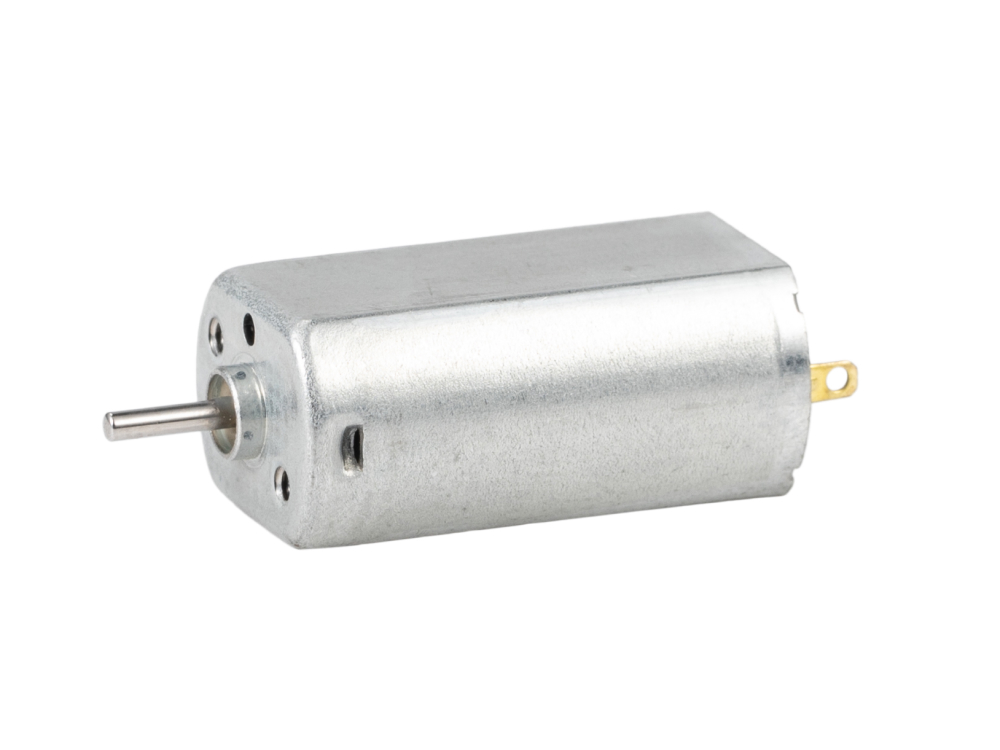

DC050 Brushed DC Motor
$1.99 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
3 options
Compatible
1 product
PG16-DC050
PG16050 Planetary Gear Motor
2 components · 36 combinations
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 7,000 - 10,000 rpm
- Rated Torque:
- 8 - 12 gf·cm
- Stall Torque:
- 45 - 50 gf·cm
- Rated Power:
- 0.5 - 1.2 W
Specifications Toggle Specifications
| Motor Model | DC050-129000 / DC050-1212000 / DC050-2413000 |
|---|---|
| Motor Type | Brushed DC Motor |
| Rated Voltage | 12 - 24 V |
| No Load Speed | 9,000 - 13,000 rpm |
| Rated Speed | 7,000 - 10,000 rpm |
| No Load Current | 45 - 55 mA |
| Rated Current | 110 - 180 mA |
| Stall Current | 400 - 750 mA |
| Rated Torque | 8 - 12 gf·cm |
| Stall Torque | 45 - 50 gf·cm |
| Rated Power | 1 - 1 W |
| Max Efficiency | 75.000 % |
| Motor Diameter | 15.5 mm |
| Motor Length | 26.9 mm |
| Motor Weight | 16 g |
| Shaft Diameter | 1.5 mm |
| Shaft Configuration | Single/Dual |
| Connector | 2 |
| Working Lifespan | 150 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Housing Material | Electrolytic zinc coated steel |
| Direction Of Rotation | CW/CCW |
| Enameled Wire Material | Enameled copper wire |
| Magnet Material | Ferrite |
| Carbon Brush Material | Metal graphite brush |
| Insulation Class | UEW |
| Number Of Pole Pairs | 2 |
| Gearbox | PG16 |
