BLDC Motors

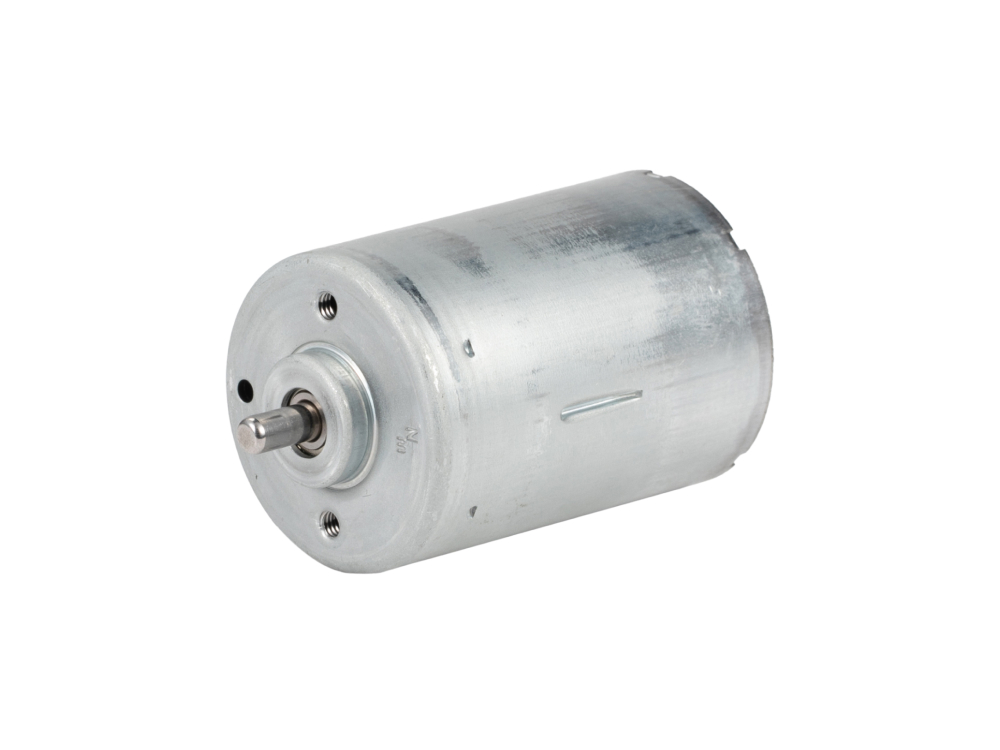

BL42 Brushless DC Motor
$20.99 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
4 options
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 3,820 - 5,269 rpm
- Rated Torque:
- 478 - 792 gf·cm
- Stall Torque:
- 3,532 - 6,046 gf·cm
- Rated Power:
- 19 - 41.5 W
Specifications Toggle Specifications
| Motor Model | BL42-124500 / BL42-126000 / BL42-244500 / BL42-246000 |
|---|---|
| Motor Type | Brushless DC Motor |
| Rated Voltage | 12 - 24 V |
| No Load Speed | 4,500 - 6,000 rpm |
| Rated Speed | 3,820 - 5,269 rpm |
| No Load Current | 400 - 650 mA |
| Rated Current | 900 - 2,040 mA |
| Stall Current | 11,400 - 18,900 mA |
| Rated Torque | 478 - 792 gf·cm |
| Stall Torque | 3,532 - 6,046 gf·cm |
| Rated Power | 19 - 42 W |
| Max Efficiency | 73.000 - 74.000 % |
| Motor Diameter | 42 mm |
| Motor Length | 59 mm |
| Motor Weight | 347 - 349 g |
| Shaft Diameter | 5 mm |
| Shaft Configuration | Single |
| Working Lifespan | 3,000 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Noise Level At 30 cm | 53 - 55 dB |
| Noise Level At 50 cm | 48 - 50 dB |
| Housing Material | Electrolytic zinc coated steel |
| Direction Of Rotation | Electronically reversible |
| Number Of Pole Pairs | 6 |
| Number Of Phases | 3 |
| Magnet Material | Nd2Fe14B |
| Enameled Wire Material | Enameled Copper Wire |
| Insulation Class | UEW |
| Hall Sensor | Cusomized |
| Motor Control | 3 phase rectangular wave rectified + PWM |
| Gearbox | PG45 |
