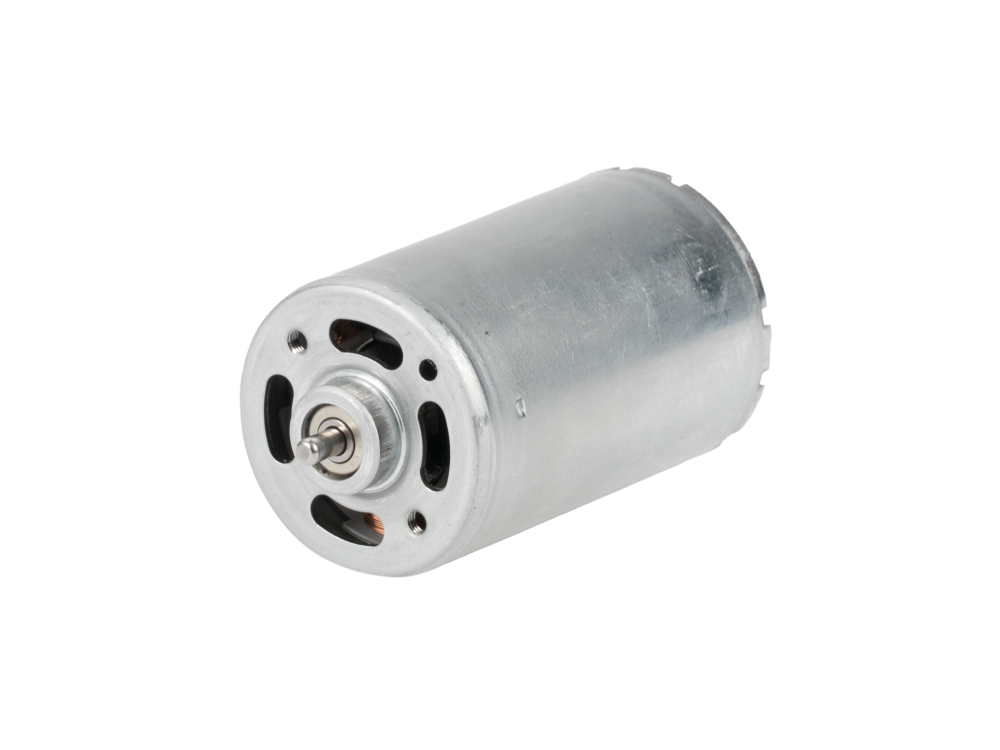

BL36 Brushless DC Motor
$15.99 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
6 options
- Rated Voltage:
- 12 - 24 V
- Rated Speed:
- 3,300 - 7,937 rpm
- Rated Torque:
- 150 - 440 gf·cm
- Stall Torque:
- 1,126 - 3,400 gf·cm
- Rated Power:
- 5.8 - 35.9 W
Specifications Toggle Specifications
| Motor Model | BL36-124500 / BL36-126000 / BL36-184200 / BL36-244500 / BL36-246000 / BL36-249000 |
|---|---|
| Motor Type | Brushless DC Motor |
| Rated Voltage | 12 - 24 V |
| No Load Speed | 4,200 - 9,000 rpm |
| Rated Speed | 3,300 - 7,937 rpm |
| No Load Current | 170 - 470 mA |
| Rated Current | 520 - 2,200 mA |
| Stall Current | 2,300 - 14,100 mA |
| Rated Torque | 150 - 440 gf·cm |
| Stall Torque | 1,126 - 3,400 gf·cm |
| Rated Power | 6 - 36 W |
| Max Efficiency | 64.000 - 78.000 % |
| Motor Diameter | 36 mm |
| Motor Length | 57 mm |
| Motor Weight | 237 - 243 g |
| Shaft Diameter | 3.175 mm |
| Shaft Configuration | Single |
| Working Lifespan | 5,000 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Noise Level At 30 cm | 43 - 53 dB |
| Noise Level At 50 cm | 38 - 48 dB |
| Housing Material | Electrolytic zinc coated steel |
| Direction Of Rotation | Electronically reversible |
| Number Of Pole Pairs | 4 |
| Number Of Phases | 3 |
| Magnet Material | Nd2Fe14B |
| Enameled Wire Material | Enameled Copper Wire |
| Insulation Class | UEW |
| Hall Sensor | Cusomized |
| Motor Control | 3 phase rectangular wave rectified + PWM |
| Gearbox | PG36 |
