BLDC Motors

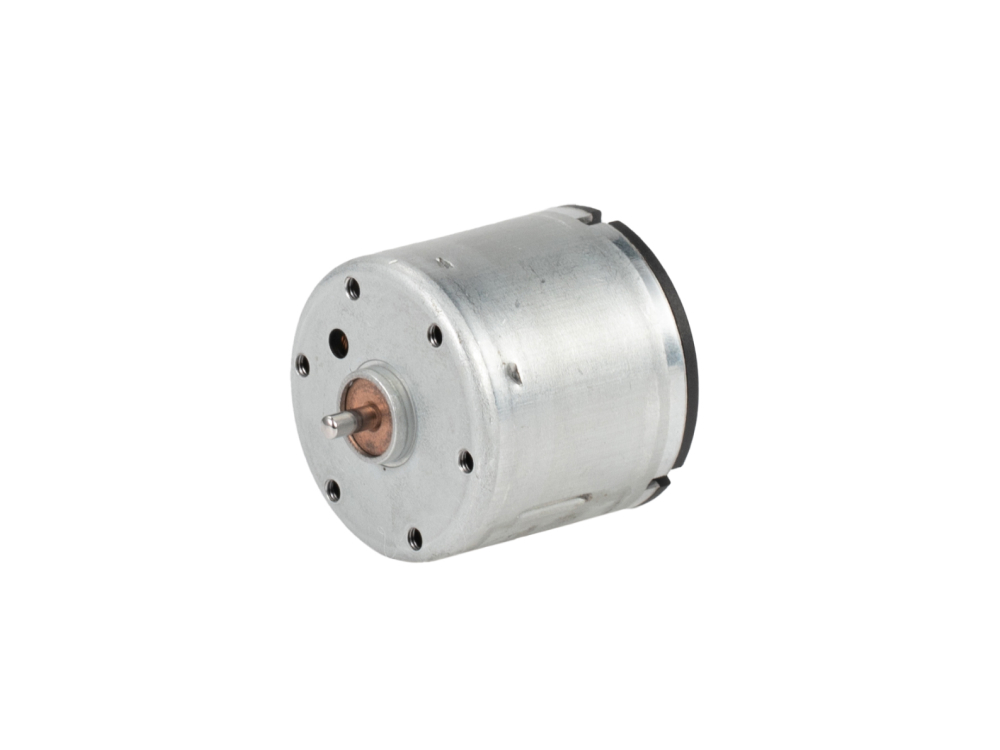

BL32 Brushless DC Motor
$14.99 MSRP
Purchase Online
Check Prices
Customized Solutions
Request a Quote
Variants
3 options
- Rated Voltage:
- 18 - 36 V
- Rated Speed:
- 5,100 - 6,200 rpm
- Rated Torque:
- 72 - 130 gf·cm
- Stall Torque:
- 424 - 670 gf·cm
- Rated Power:
- 3.56 - 8.4 W
Specifications Toggle Specifications
| Motor Model | BL32-187500 / BL32-246000 / BL32-367500 |
|---|---|
| Motor Type | Brushless DC Motor |
| Rated Voltage | 18 - 36 V |
| No Load Speed | 6,000 - 7,500 rpm |
| Rated Speed | 5,100 - 6,200 rpm |
| No Load Current | 60 - 180 mA |
| Rated Current | 260 - 710 mA |
| Stall Current | 1,160 - 2,840 mA |
| Rated Torque | 72 - 130 gf·cm |
| Stall Torque | 424 - 670 gf·cm |
| Rated Power | 4 - 8 W |
| Max Efficiency | 65.000 - 72.000 % |
| Motor Diameter | 32 mm |
| Motor Length | 29 mm |
| Motor Weight | 80 g |
| Shaft Diameter | 2.5 mm |
| Shaft Configuration | Single |
| Working Lifespan | 5,000 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Noise Level At 30 cm | 42 - 54 dB |
| Noise Level At 50 cm | 37 - 49 dB |
| Housing Material | Electrolytic zinc coated steel |
| Direction Of Rotation | Electronically reversible |
| Number Of Pole Pairs | 6 |
| Number Of Phases | 3 |
| Magnet Material | Nd2Fe14B |
| Enameled Wire Material | Enameled Copper Wire |
| Insulation Class | UEW |
| Hall Sensor | No |
| Motor Control | Sensorless Control |
| Gearbox | PG32 |
